Specifications

SATA2.5TestAdapterUserManual


Page|26
©2010,2011WilderTechnologies,LLC
DocumentNo.910‐0011‐000Rev.B





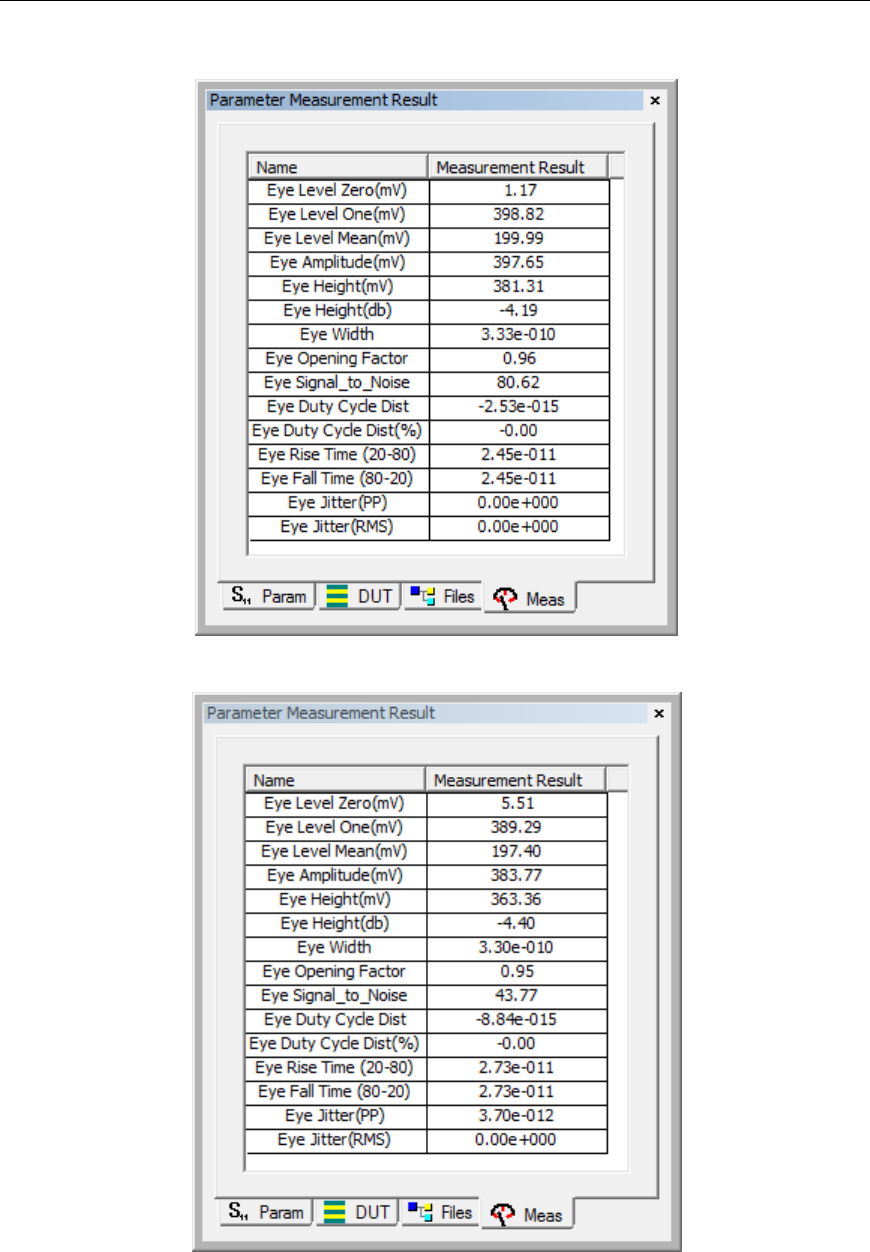

Figure 11. Typical mated pair 3 Gb/s eye data, with calibration (top) and without calibration (bottom).
Note : 0.00e+000 results are below the resolution of the calculation.
