Calibration
TheSATA2.5PlugandReceptacleTestAdaptersarepassivecomponents.Therefore,
calibrationfortheerrorsgeneratedmustoccurwithinthetestinstrumentationthatdrivesthe
SATAreceiverdeviceorlooksattheresponseoftheSATAtransmitterdevice.
TheSATA2.5‐TPA‐C‐2Xcableisusedtoprovide2X‐THRU
functionality.TheSATA2.5‐TPA‐C‐1X
cableprovides1X‐THRUfunctionalityforcalibration.TheSHORT,OPEN,andLOADfunctionality
isprovidedfromauser‐suppliedcalibrationkit.




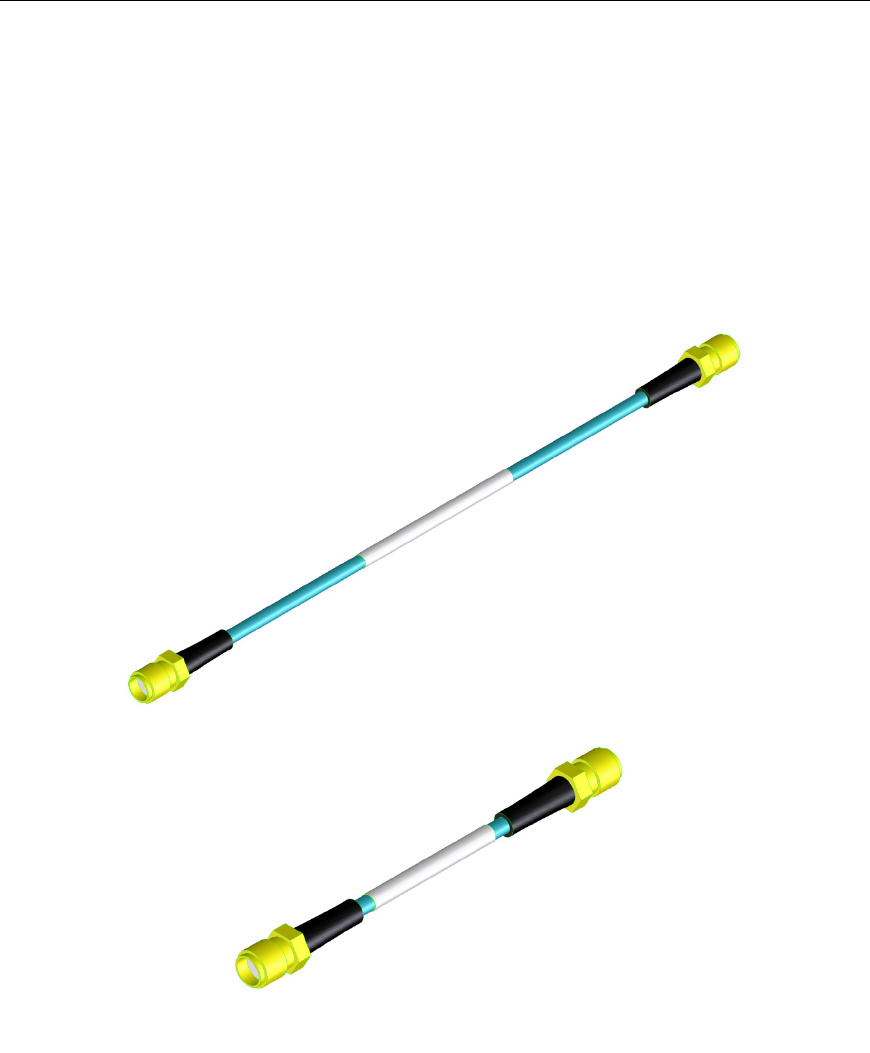

Figure 3. Calibration Cables (SATA2.5-TPA-C-2X, Top) & (SATA2.5-TPA-C-1X, Bottom) 
