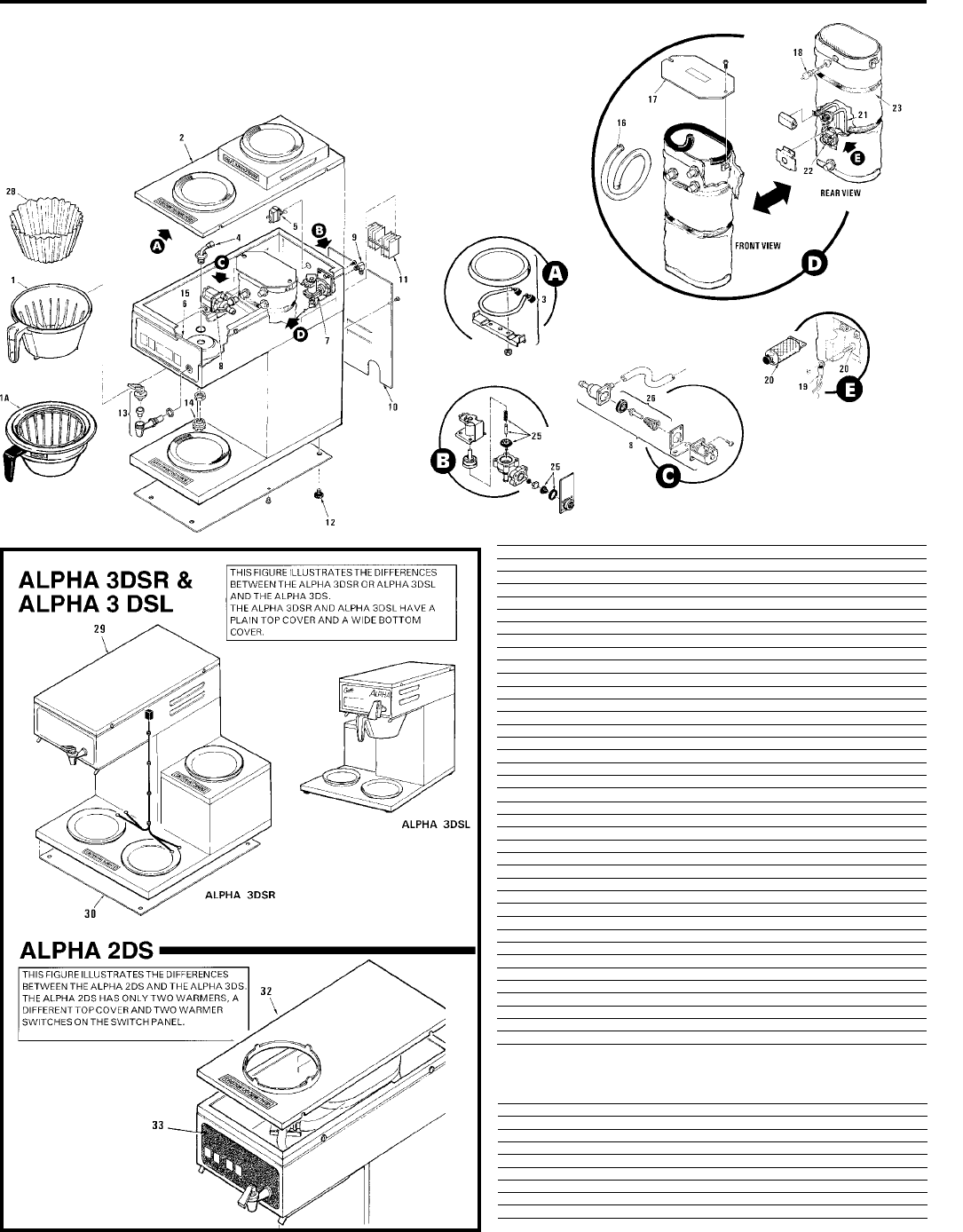

Illustrated Parts List (Alpha 3DS Model Shown)Illustrated Parts List (Alpha 3DS Model Shown)
Illustrated Parts List (Alpha 3DS Model Shown)Illustrated Parts List (Alpha 3DS Model Shown)
Illustrated Parts List (Alpha 3DS Model Shown)
ITEMS SPECIFIC ITEMS SPECIFIC
ITEMS SPECIFIC ITEMS SPECIFIC
ITEMS SPECIFIC
TO TO
TO TO
TO
ALPHA 1DS,ALPHA 1DS,
ALPHA 1DS,ALPHA 1DS,
ALPHA 1DS,
2DS, 2DS,
2DS, 2DS,
2DS,
3DSR, 3DSL, 5DSR & 5DSL3DSR, 3DSL, 5DSR & 5DSL
3DSR, 3DSL, 5DSR & 5DSL3DSR, 3DSL, 5DSR & 5DSL
3DSR, 3DSL, 5DSR & 5DSL
ItemItem
ItemItem
Item
PP
PP
P
art No.art No.
art No.art No.
art No.
DescriptionDescription
DescriptionDescription
Description
29 WC-5450 COVER, TOP ALPHA 1DS, 3DSR & 3DSL
30 WC-58058 COVER, BOTTOM ALPHA 3DSR & 3DSL, 5DSR & 5DSL
32 WC-61107 COVER, TOP ALPHA 2DS
32A WC-58019 TOP COVER ASSY, ALPHA 2DS
33 WC-8574 PIGGYBACK ASSY, ALP-2DS 120/220V
33A WC-8575 PIGGYBACK ASSY, ALP-2DS 220V
34 WC-8572 PIGGYBACK ASSY, ALP-1DS 120/220V (NOT SHOWN)
34A WC-8573 PIGGYBACK ASSY, ALP-1DS 220V (NOT SHOWN)
35 WC-129 SWITCH, WARMER RED ALPHA 5DS, 5DSR & 5DSL (NOT SHOWN)
ItemItem
ItemItem
Item
PP
PP
P
art No.art No.
art No.art No.
art No.
DescriptionDescription
DescriptionDescription
Description
1 WC-3621 BREWCONE, 7 1/8” BLK
lA WC-3316 BREWCONE W/BASKET, COMPLETE OPTIONAL
2 WC-6812 TOP WARMER ASSY 120V (ALP-3DS/DD/5DSL/DDL/DSR/1ODD/DS)
2A WC-8567 TOP WARMER ASSY 220V (ALP-3DS/DD/5DSL/DDL/DSR/1ODS)
3 WC-8578 WARMER ASSY, 120V ALPHA DD/DS
3A WC-6218R KIT, WARMER ASSY, 220V
4 WC-2977 FITTING, SPRAYHEAD PLT’D
5 WC-102 SWITCH, TOGGLE SPST 25A 125/25OVAC RESISTIVE
5A WC-103 SWITCH, TOGGLE DPST 25A 125/25OVAC RESISTIVE
6 WC-8548 KIT, MEMBRANE PLATE & BOARD ASSY, 120/220V ALPHA 3/5DSL/R
6A WC-8576 KIT, MEMBRANE PLATE & BOARD ASSY, 220V ALPHA 3/5DSL/R
7 WC-826 VALVE, INLET 1.0 GPM 120V
7A WC-856 VALVE, INLET 1.0 GPM 220V
8 WC-889 VALVE, LIQUID DISPENSING LEFT 12OVAC 12W 12 IN WC HWR
8A WC-860 VALVE, LIQUID DISPENSING LEFT 22OVAC 12W 12 IN WC HWR
9 WC-2401 ELBOW, 1/4 x 3/8 FLARE
10 WC-5970 COVER, BACK CTR WRAP ALPHA DS
11 WC-8556 HEAT SINK ASSEMBLY DV ALPHDS D5OOAP TCTD/PTTD
12 WC-8529 LEG, SCREW BUMPER (3/8”)
13 WC-1809 FAUCET, HOT WATER
14 WC-2936 SPRAYHEAD, RED .131 DIA
14A WC-2942 SPRAYHEAD, GREY .219 DIA
15 WC-753 CONTROL BOARD, ALPHA DS 120/220 STD
15A WC-712 CONTROL BOARD, 220V STRAIGHT
16 WC-5310 TUBING, 5/16 ID SILICONE GEN USE
17 WC-5851 LID, HEATING TANK
18 WC-5502-01 PROBE, WATER LEVEL CONTROL
19 WC-1438 SENSOR, TEMPERATURE
20 WC-5231 COMPOUND, SILICONE 5 OZ TUBE
21 WC-917 HEATING ELEMENT, 1450W 120V
21A WC-922 HEATING ELEMENT, 220V 3500W
22 WC-522 THERMOSTAT, RESET
23 WC-6266 HEATING TANK COMPLETE, 120V OR 220V
23A WC-6265 HEATING TANK COMPLETE, 120/220V (DUAL VOLTAGE)
23B WC-6267 HEATING TANK, COMPLETE, 220V
25 WC-3765 KIT, VALVE REPAIR (USE WITH WC-826, WATER INLET VALVE)
26 WC-3763 KIT, VALVE REPAIR (USE WITH WC-889, DUMP VALVE)
27 WC-8591 CAPACITOR, X2 USED ON ALL ADS
28 CR -10 FILTER PAPER, 12 CUP
