Product Specifications

02-2019
STC rated output (P
mpp
)* 275 Wp 280 Wp 285 Wp 290 Wp
Rated voltage (V
mpp
) at STC 31.10 V 31.48 V 31.80 V 32.15 V
Rated current (l
mpp
) at STC 8.84 A 8.91 A 8.97 A 9.03 A
Open circuit voltage (V
oc
) at STC 38.36 V 38.83 V 39.15 V 39.45 V
Short circuit current (I
sc
) at STC 9.38 A 9.41 A 9.46 A 9.54 A
Module e󰀩ciency 16.8% 17.1% 17.4% 17.7%
Rated output (P
mpp
) at NOCT 202.1 Wp 205.8 Wp 209.4 Wp 213.1 Wp
Rated voltage (V
mpp
) at NOCT 28.64 V 28.95 V 29.27 V 29.58 V
Rated current (I
mpp
) at NOCT 7.06 A 7.11 A 7.16 A 7.20 A
Open circuit voltage (V
oc
) at NOCT 35.58 V 36.02 V 36.32 V 36.60 V
Short circuit current (I
sc
) at NOCT 7.54 A 7.57 A 7.61 A 7.67 A
Temperature coe󰀩cient (P
mpp
) - 0.380%/°C
Temperature coe󰀩cient (I
sc
) +0.042%/°C
Temperature coe󰀩cient (V
oc
) - 0.284%/°C
Normal operating cell temperature
(NOCT)
46±2°C
Maximum system voltage (IEC/UL) 1000V
DC
or 1500V
DC
Number of diodes 3
Junction box IP rating IP 67
Maximum series fuse rating 15 A

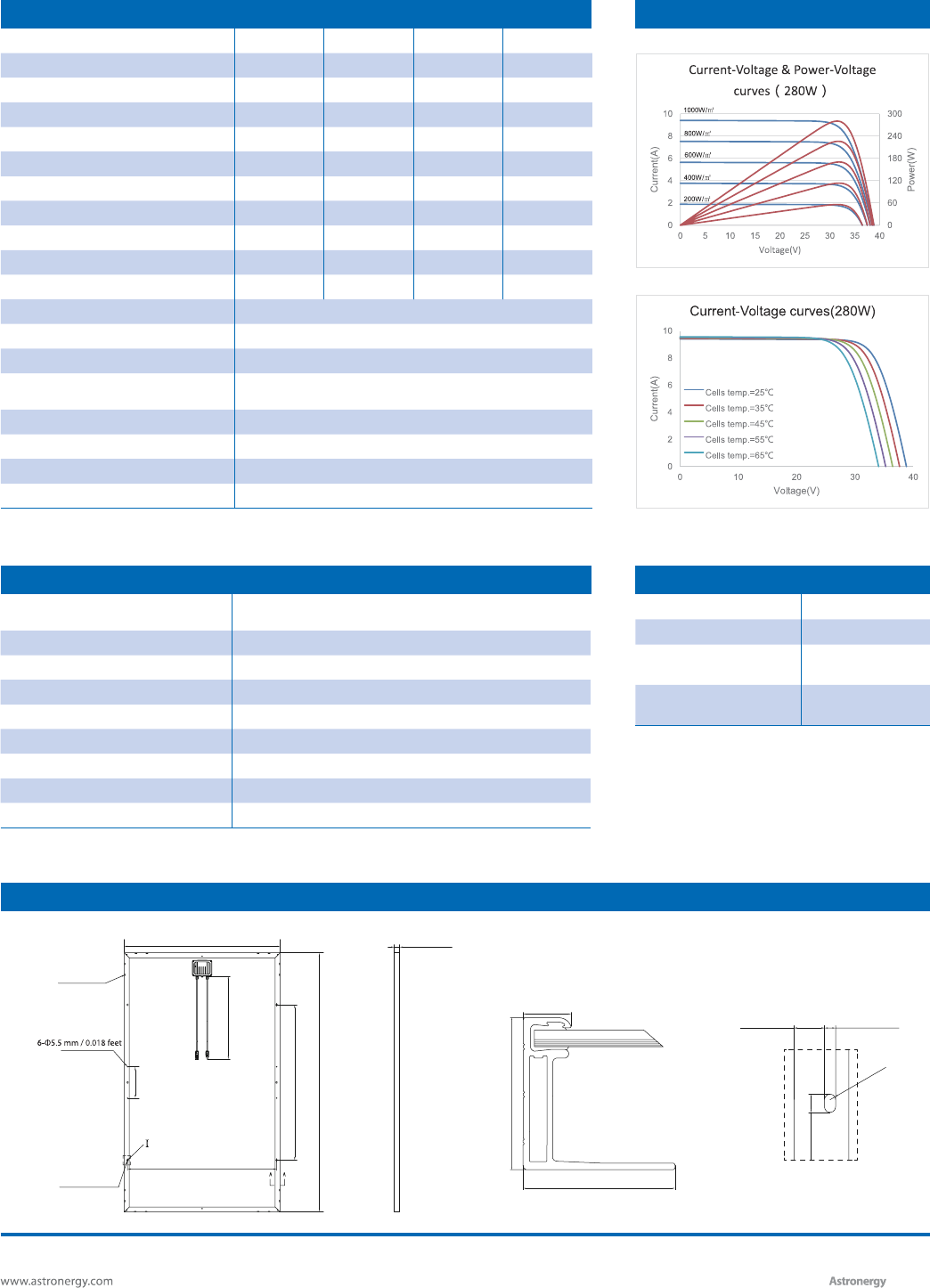

ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
MODULE DIMENSION DETAILS
CURVE
PACKING SPECIFICATIONS
* Measurement tolerance +/- 3%
STC: Irradiance 1000W/m
2
, Cell Temperature 25°C, AM=1.5
NOCT: Irradiance 800W/m
2
, Ambient Temperature 20°C, AM=1.5, Wind Speed 1m/s
Outer dimensions (L x W x H)
1650 x 992 x 35 mm
64.96 x 39.06 x 1.38 in
Frame technology Aluminum, silver / black anodized
Module composition Glass / EVA / Backsheet (white)
Front glass thickness 3.2 mm / 0.13 in
①
Cable length (IEC/UL) 900 mm / 35.43 in
Cable diameter (IEC/UL) 4 mm² / 12 AWG
②
Maximum mechanical test load 6000 Pa
Fire performance (IEC/UL) Class C (IEC) or Type 1 (UL)
Connector type (IEC/UL) MC4 compatible
①
Weight (module only) 18.4 kg / 40.57 lbs
②
Packing unit 31 pcs / box
Weight of packing unit
(for 40‘HQ container)
609 kg / 1343 lbs
Number of modules per
40‘HQ container
868 pcs
①
Tolerance +/- 1.0kg
②
Subject to sales contract
①
Option: 900(+) /600(-) mm or 1000 mm for dened projects in advance.
②
Refer to Astronergy Crystalline Silicon PV Module Installation Manual or contact technical department.
Maximum Mechanical Test Load=1.5×Maximum Mechanical Design Load.
© Chint Solar (Zhejiang) Co., Ltd. Reserves the right of nal interpretation. please contact our company to use the latest version for contract.
35 mm/0.115 feet
35 mm/0.115 feet
11 mm/0.036 feet
35 mm/0.115 feet
A-A
40:1
I
10:1
900 mm/2.953 feet
16-3.5 mm x 8.5 mm/
0.011 feet x 0.028 feet
Drainage hole
Ground hole
992 mm/3.255 feet
990 mm/3.248 feet
200 mm/0.656 feet
6-9 mm x 14 mm /
0.030 feet x 0.046 feet
Mounting hole
948 mm/3.110 feet
1650 mm/5.413 feet
17.5 mm/0.057 feet
9 mm/0.030 feet
14 mm/0.046 feet
4.5 mm/0.015 feet
