User's Manual

15
LED Error Indicators Description
LED Definitions
• L4 (Yellow) = Program Running Indicator
•
L3 (Green) = Over-voltage Detection
(115±10
％
Vac, 60Hz and 230±10
％
Vac, 50Hz)
•
L2 (Red) = Overheat Detection
• L1 (Blue) = Continuous 100 times Operation Counting
Error Types
Note: If any of following errors occurs, the corresponding LED will turn on and
FastPad will lock up. Turn the power switch off/on to reset the unit.
• [Red]
= Deactivating coils have overheated. Allow the unit to cool down
and reapply power.
• [Green] = Over-voltage detection of the power source (10% tolerance:
115±10％Vac@60Hz and 230±10％Vac@50Hz). Remove power until
the power source is brought within required limits.
• [Red] and [Yellow] = 100 times continuous deactivation count has
been reached. In order to prevent system overheating, allow the
system to cool down and reapply the power.
• [All LEDs On]
= Deactivator coils current has exceeded the limit.
Reapply power to the unit.
FAST PAD
CONTROL BOX
TM
L
A
N
R
E
M
O
T
E
C
O
N
T
R
O
L
L1L2L3L4

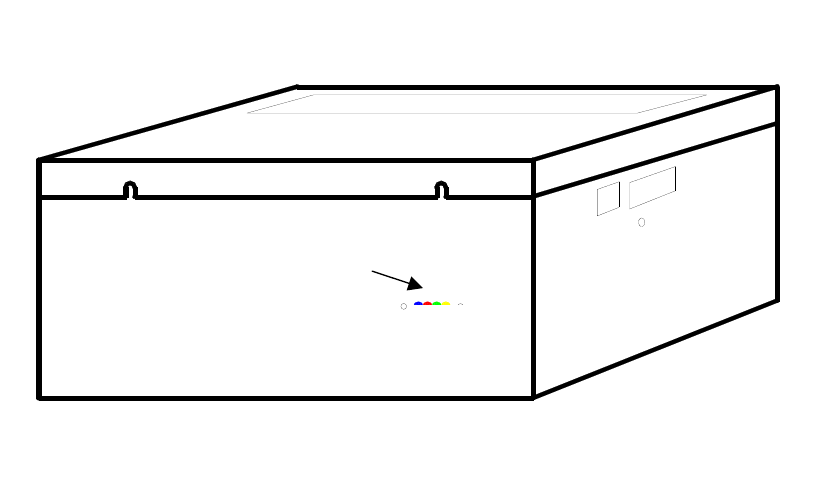

CONTROL BOX - FRONT VIEW
LED Error Indicators
