5-26

Basic Configuration

5.7.1.2. Example2:ChangePlugA5toPriority2

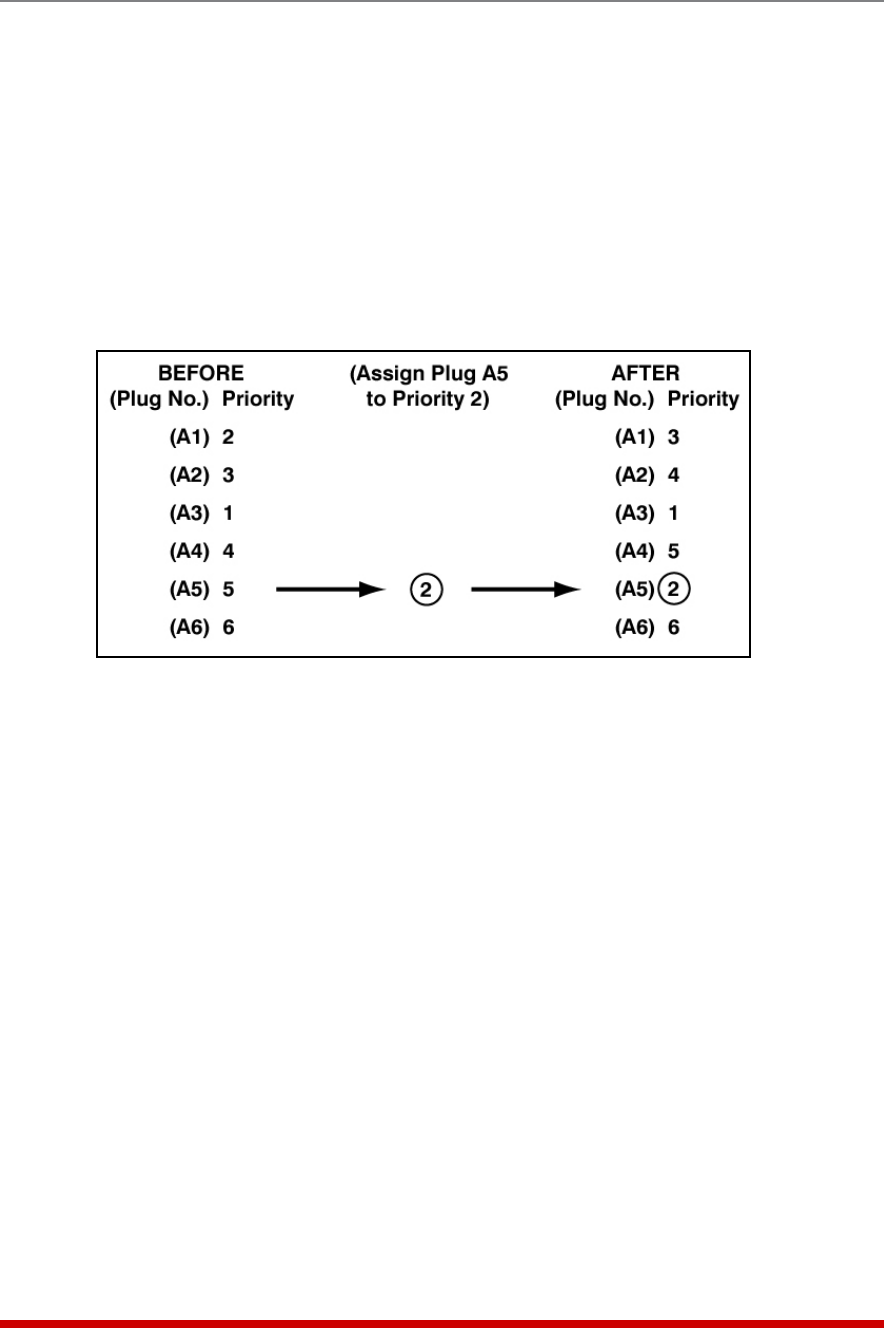

In the second Example shown in Figure 5.2, we start out with Boot Priorities for the

plugs set as they were at the end of Example 1; Plug A3 is first, Plug A1 is second, Plug

A2 is third, Plug A4 is fourth, and Plug A6 is sixth.

Next, the Boot Priority for Plug A5 is changed to Priority 2. This means that Plug A3

will continue to be switched on first after a reboot, but now Plug A5 will be switched on

second, Plug A3 will be third, Plug A2 will be fourth, Plug A4 will be fifth and Plug A6 will

still be sixth.

Once again, note that when the Boot Priority for Plug A5 is set to 2, the Boot Priorities for

all plugs that were previously Booted before plug A5 are now lowered by a factor of one

Figure 5.2: Boot Priority Example 2
