Product Manual

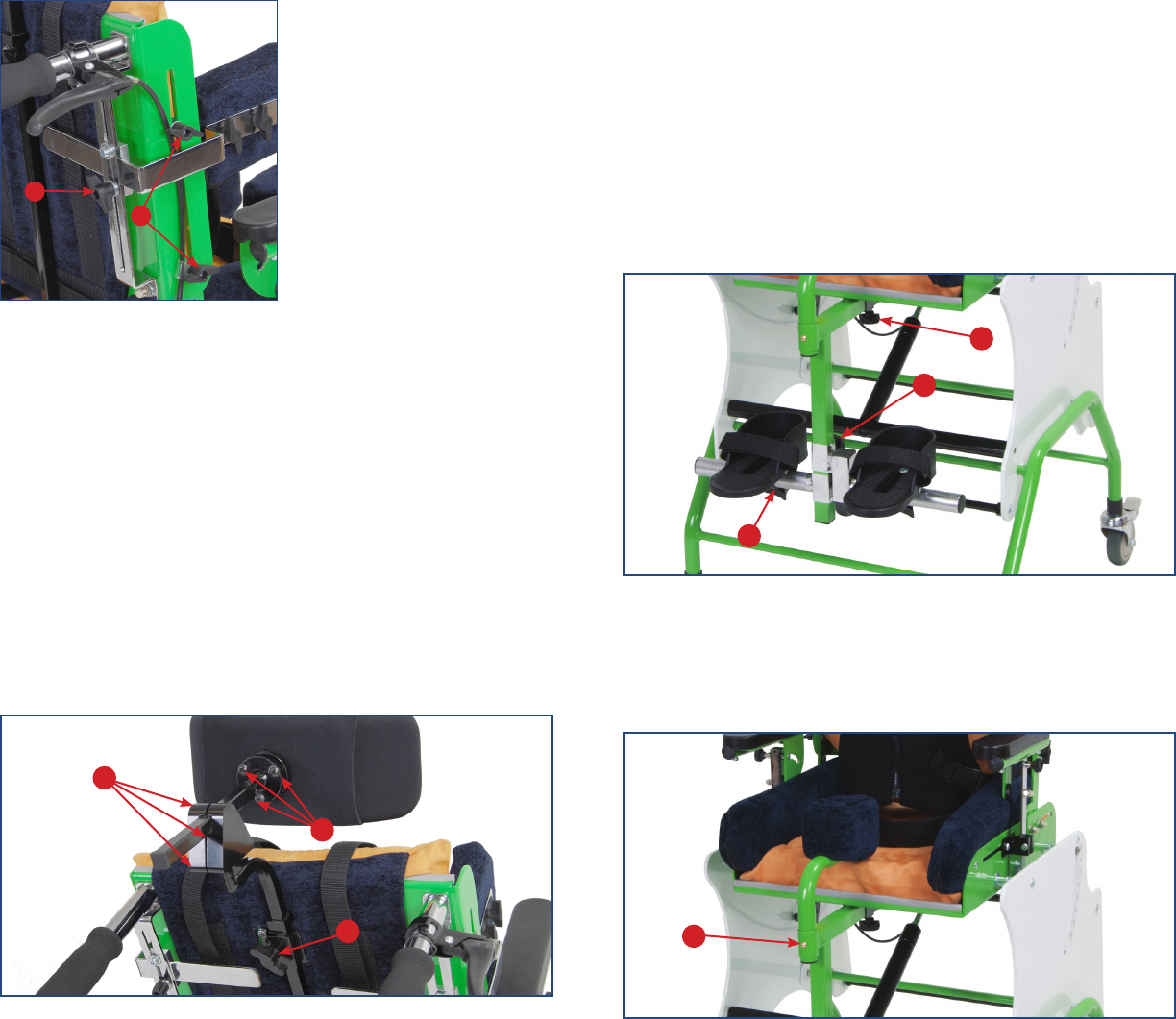

BACK HEIGHT
Back height can be adjusted by
loosening knobs (U) and raising or
lowering back.
U
LATERALS
Laterals can be adjusted in
height and width. Loosen knob
(V) and adjust height and width.
V
K
M
Height
Loosen knob (J) and raise or lower vertical assembly pole.
Depth
Loosen 3 Allen screws (K) on triangular rotating bracket and push/pull
headrest to desired position. For additional depth adjustability, mount the
vertical assembly pole with the curve either facing inward or outward.
Angle
Loosen 3 Allen screws (M) on circular bracket on headrest and tilt
headrest to desired angle. Additional angle adjustability can be achieved
by loosening the 3 Allen screws (K) on the triangular rotating bracket and
adjust accordingly.
HEADRESTS
FOOTRESTS
Height - Loosen knob (W) and raise or lower bracket.
Angle – Loosen knob (X).
Position
• Lateralpositionoffootsandalsonrodcanbeachievedby
loosening knob (X).
• Depthpositionoffootsandalsonrodcanbeachievedbyloosening
knob (X).
• Depthpositionofentirefootrestassemblycanbeachievedby
loosening knob (Y).
X
Y
W
ABDUCTOR
Abductor can be removed, raised or lowered by pressing pushpin (Z). The
depth of the abductor can be changed by moving footrest assembly. The
abductor pad can be moved by removing bolts under the pad and chang-
ing the position of the holes on the pad.
Z
J
