Use and Care Manual

11
Fig. 1

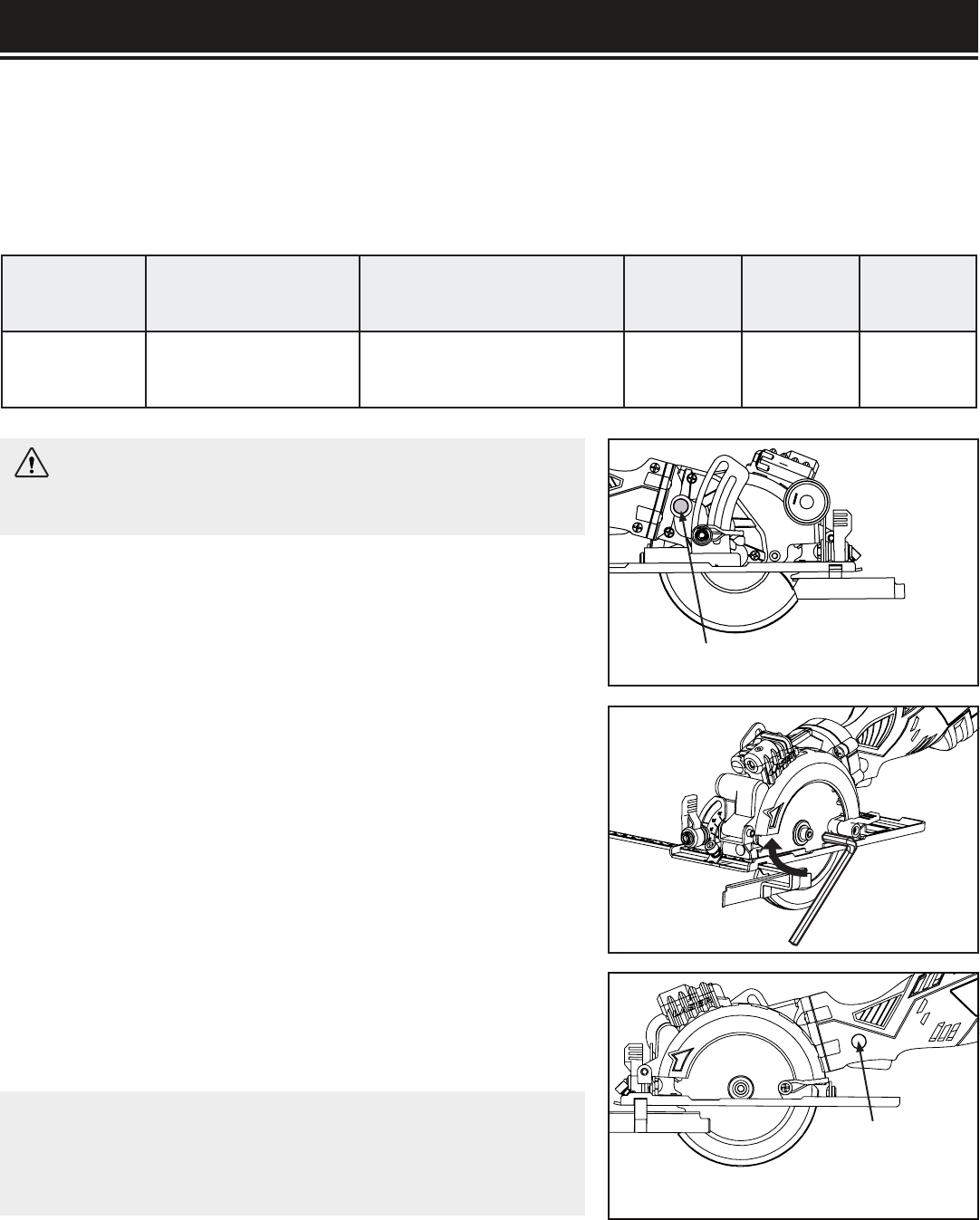

INSTALLING/REPLACING THE SAW BLADE (FIGS. 1 & 2)
Use saw blades with 4-1/2 inch (115 mm) diameter and 3/8 inch (10 mm) arbor. Do not use a blade that does
not match the diameter or arbor size. The pre-installed blade has a body that is 1.2 mm thick and theeth that
are 1.8 mm thick . Do not use a blade that is thicker than the included blades, as this will prevent the arbor
screw from properly securing the blade. Replacement saw blades (Model BL11510W) can be purchased
from wenproducts.com.
1. Unplug your mini circular saw from the power source.
2. Press down the spindle lock (Fig. 1) to prevent the blade from
spinning. With the spindle lock pressed down, use the includ-
ed M5 hex wrench to loosen the arbor screw by turning it
clockwise (Fig. 2).
3. Remove the arbor screw, washer and outer flange.
4. Push the blade release button (Fig. 3) and swing the base plate
upwards. Carefully remove the existing blade.
5. With the base plate swung upwards as in Step 4, slide the new
saw blade onto the spindle. Make sure the blade teeth beneath
the base plate are pointing forward and the arrows printed on
the blade point in the clockwise direction.
6. Replace the outer flange. Press the spindle lock (Fig. 1 - 1)
and replace the arbor screw and washer. Fully tighten the ar-
bor screw by turning it counterclockwise with the hex wrench.
Fig. 2
WARNING: Wear gloves when handling saw blades to
prevent injuries in case the blade teeth are accidentally
contacted.
NOTE: The quality of the cut depends on the condition
of the saw blade. Never use a dull, rusty, or damaged
blade. Before operation, check the condition of the
blade and replace if the blade is worn-out or damaged.
Spindle Lock
Blade Release
Button
Fig. 3
ASSEMBLY & ADJUSTMENTS
Blade Model Blade Type Suitable Materials
Body
Thickness
Teeth
Thickness
Max
Speed
BL11510W
TCT Wood-Cutting
Blade (24 Teeth)
Softwood, hardwood and
plastics
1.2 mm 1.8 mm 7,000 RPM
