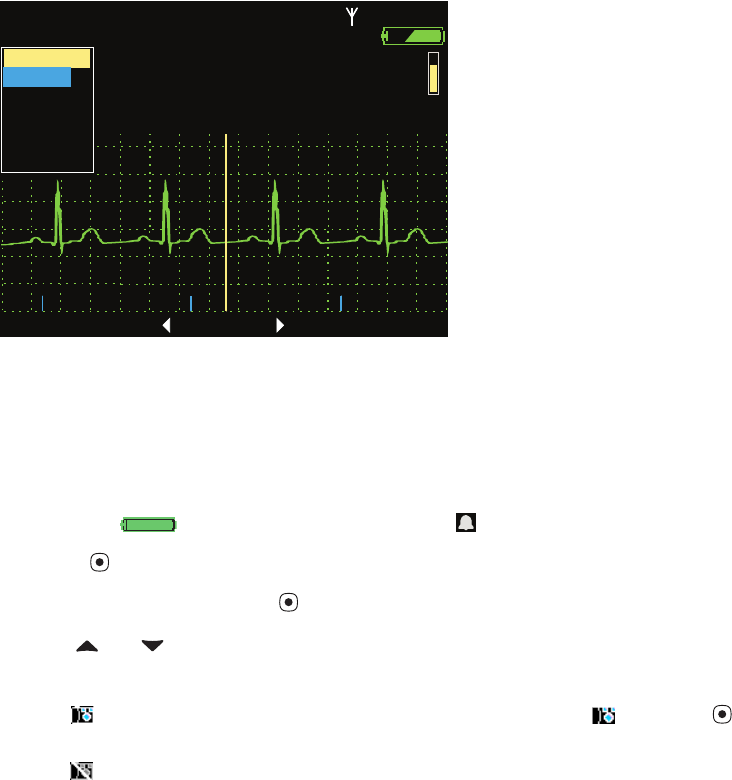

Figure 92. Snapshots Display: Switching to Another Display
Reviewing Trends
To Review Trends
From any main display screen (such as Large Numerics, Dual Waveform...):
1. Highlight , HR/PR, SpO
2
, NIBP, Resp, or .
2. Press .
3. Highlight Trends and press . The Trends display appears.
Use and to scroll through the list of trends.
• Red indicates an alarm.
• indicates that a snapshot exists for this trend. Highlight and press to
view the snapshot.
• indicates that the snapshot for this trend was overwritten with a more recent
snapshot and is not available for viewing.
• --- indicates a value below the monitor’s measurement range.
• +++ indicates a value above the monitor’s measurement range.
• ??? indicates an undetermined value.
