Welch Allyn Laryngoscopes
Designed Smart
Robust Design
Welch Allyn’s laryngoscope design uses a single piece of 304-series stainless steel as its load-bearing member.
A
ll competitive blades are constructed from multiple pieces of stainless steel or brass that are bonded
together using a solder or braze. These solders or brazes are vulnerable to corrosion due to harsh conditions
associated with many sterilization methods.
This one-piece construction of the Welch Allyn blade is more robust than the typical competitive product.
Furthermore, its one-piece blade construction eliminates the potentially weaker soldered or brazed joint.
Design Features
Welch Allyn’s innovative design incorporates an easy-to-remove light pipe that eliminates the difficult-to-
clean areas of most competitive laryngoscopes.
Removable Light Pipe
Another feature designed to help improve the cleaning of a Welch Allyn blade is its surface finish. Typical
laryngoscope finishes have a surface roughness of 32µ in. The surface finish used on all Welch Allyn blades has
a roughness of just 8µ in. This creates a surface texture that is approximately four times smoother than
competitive blades, resulting in an easier-to-clean, stain-resistant laryngoscope blade. What’s more, the surface
finish is not a plating, and therefore does not alter the 304-series stainless steel construction of the blade itself.
Smooth Surface Finish
contents
I
NTRODUCTION
Designed Smart
1
M
ACINTOSH LARYNGOSCOPE
MacIntosh Fiber Optic Laryngoscope
3
MacIntosh Standard Laryngoscope
3
E-MACINTOSH LARYNGOSCOPE
E-MacIntosh Fiber Optic Laryngoscope
4
E-MacIntosh Standard Laryngoscope
4
MILLER LARYNGOSCOPE
Miller Fiber Optic Laryngoscope
5
Miller Standard Laryngoscope
5
LARYNGOSCOPE HANDLES
Fiber Optic Halogen HPX
™
Handles
6
Standard Handles
7
LARYNGOSCOPE SETS
Fiber Optic Sets
8
Standard Sets
9
Portable Sets
10
REPLACEMENT PARTS 11
QUICK REFERENCE GUIDE 12
Welch Allyn fiber optic blades and handles conform to the current ASTM (F1195) and
ISO (7376) standards and are color-coded green to signify compatibility.
Welch Allyn standard blades and handles conform to the current ASTM (F965) and
ISO (7376) standards. Blades are color
-coded black to signify compatibility.
More Value by Design
There ar
e primarily two causes of reduced light transmission in fiber optic laryngoscopes: fiber optic
breakage and epoxy blockage. Light degradation caused by fiber optic breakage will occur in varying
degr
ees in any lar
yngoscope that is subjected to sever
e changes in temperatur
e.
Reduced Light Degradation
> When a fiber optic laryngoscope is steam-sterilized, the heat
involved causes the epoxy (used to hold the fibers in place
within the fiber optic bundle) to expand and extrude past
the end of the light pipe.
> The epoxy cools following the autoclave pr
ocess and
hardens over the optics, blocking light emissions from those
fibers. As mor
e and mor
e fibers ar
e blocked, less and less
light is emitted and the accuracy of the intubation pr
ocess
may be jeopardized.

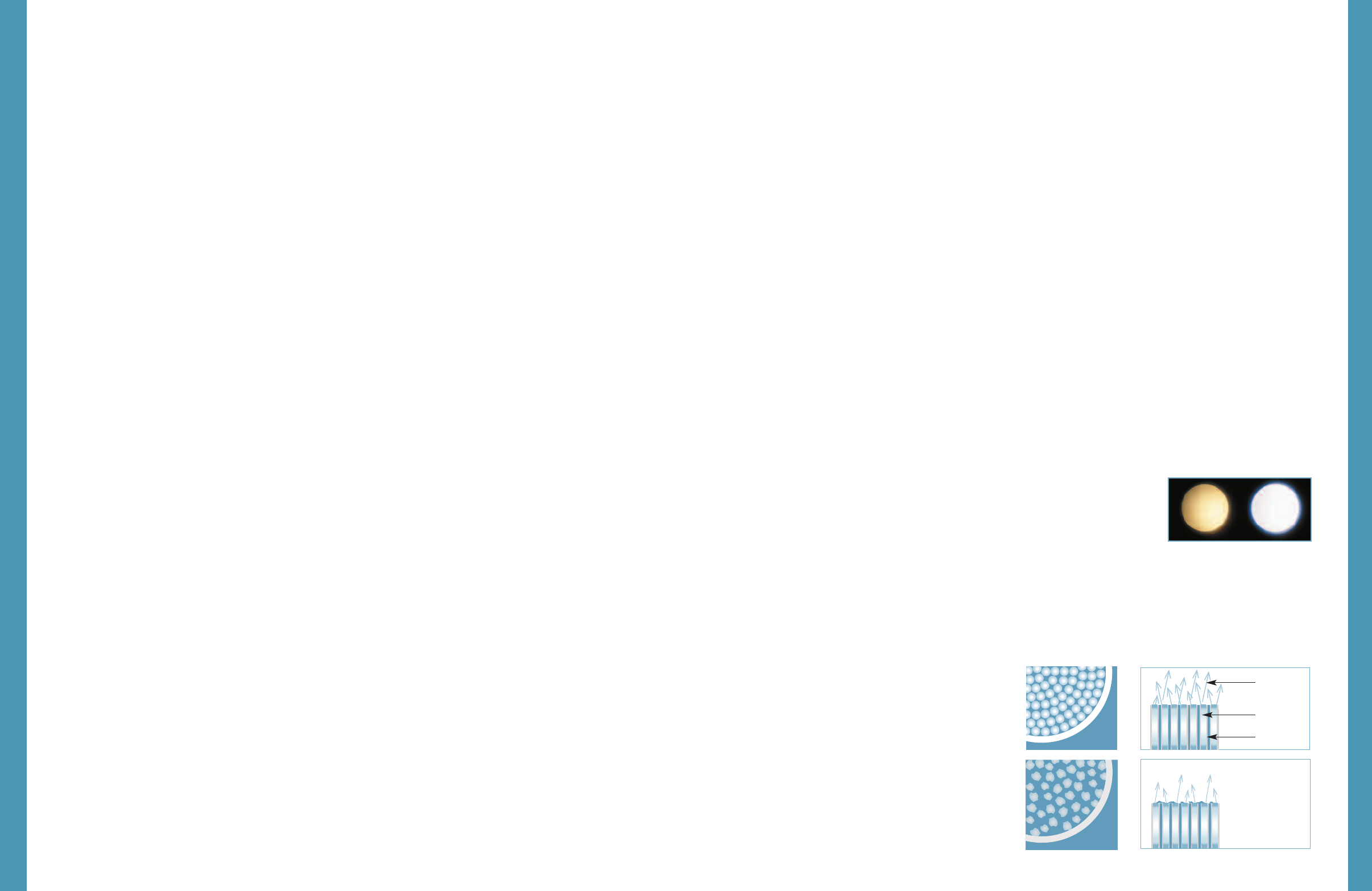

Light Rays
Glass Fiber
Epoxy
After 500 Steam
Sterilization Cycles
Brighter by Design
The Welch Allyn Halogen HPX™ lamp is the latest technology in gas-filled lamps. By
filling the lamp
with a high-pressure mixture of halogen and xenon gases, we have invented a
miniature lamp that is more than 30% brighter and whiter than standard halogen lamps.
