Data sheet



Creation date March 1, 2019 4:51:24 PM CET

 Catalogue status 15.02.2019 / We reserve the right to make technical changes. 1

HDC insert

HDC HE 24 FS

Weidmüller Interface GmbH & Co. KG

Klingenbergstraße 16

D-32758 Detmold

Germany

Fon: +49 5231 14-0

Fax: +49 5231 14-292083

www.weidmueller.com

General ordering data



Type HDC HE 24 FS

Order No. 1211300000

Version HDC insert, Female, 500 V, 16 A, No. of poles: 24,

Screw connection, Size: 8

GTIN (EAN) 4008190067298

Qty. 1 pc(s).



For the screw connection, the wire connection level is

designed as a screw element. All screw connections

are equipped with a wire protection spring (with the

exception of size 1).

Number of poles: 24

Rated current: 16 A

Rated voltage: 500 V

Nominal voltage acc. to UL/CSA: 600 V AC/DC

Screw connection

Summary of content (8 pages)

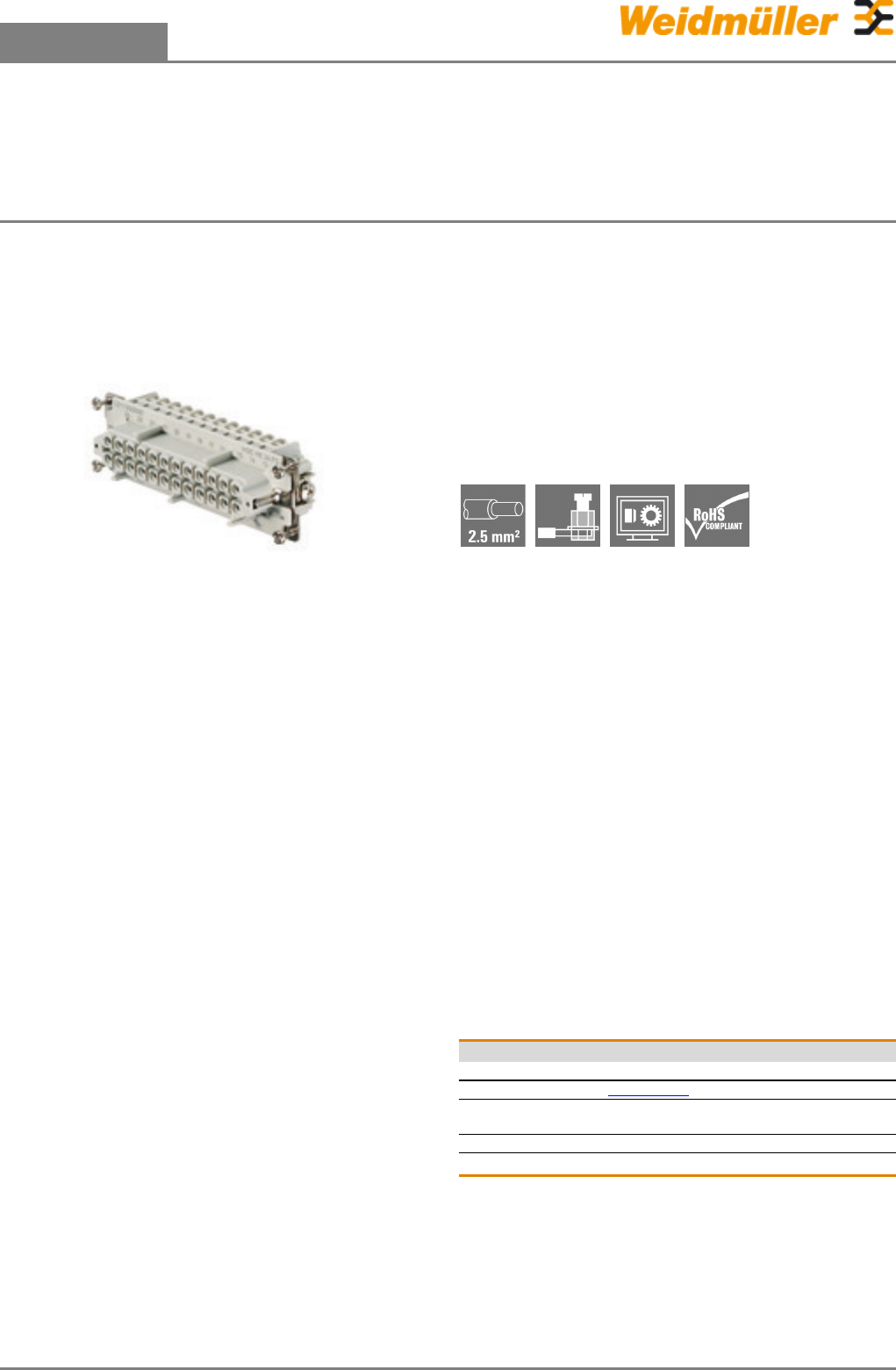

PAGE 1
Data sheet HDC insert HDC HE 24 FS Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com For the screw connection, the wire connection level is designed as a screw element. All screw connections are equipped with a wire protection spring (with the exception of size 1). Number of poles: 24 Rated current: 16 A Rated voltage: 500 V Nominal voltage acc.
PAGE 2
Data sheet HDC insert HDC HE 24 FS Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Dimensions and weights Length Width Height Net weight 111 mm 34 mm 35.2 mm 138 g Length (inches) Width (inches) Height (inches) 4.37 inch 1.339 inch 1.386 inch Total length base 111 mm Insulating material PC glass-fibre reinforced (UL-listed and railwaycertified) Temperatures Limit temperature -40 °C ...
PAGE 3
Data sheet HDC insert HDC HE 24 FS Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Version Blade size Clamping screw Conductor cross-section, min. Max. torque for main contact Size Surface finish Volume resistance Wire connection cross section AWG, min. Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. Wire connection cross-section, finely stranded, min.
PAGE 4
Data sheet HDC insert HDC HE 24 FS Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Creation date March 1, 2019 4:51:24 PM CET Catalogue status 15.02.2019 / We reserve the right to make technical changes.
PAGE 5
Data sheet HDC insert HDC HE 24 FS Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Accessories Slotted screwdriver Slotted screwdriver with rounded blade SD DIN 5265, ISO 2380/2, output to DIN 5264, ISO 2380/1. ChromTop tip, SoftFinish grip General ordering data Type SDS 0.8X4.0X100 Order No. 9008340000 Version Screwdriver, Blade width (B): 4 mm, Blade length: GTIN (EAN) Qty. 4032248056293 1 pc(s).
PAGE 6
Data sheet HDC insert HDC HE 24 FS Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Accessories Crosshead screwdriver Phillips Crosshead screwdriver, Phillips, SDK PH DIN 5262, ISO 8764/2-PH, output to ISO 8764-PH, ChromTop tip, SoftFinish grip General ordering data Type SDK PH1 Order No. 9008480000 Version Screwdriver, Blade width (B): 4.5 mm, Blade length: GTIN (EAN) Qty. 4032248056477 1 pc(s).
PAGE 7
Data sheet HDC insert HDC HE 24 FS Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Accessories Slotted screwdriver VDE insulated slot-head screwdriver, SDI DIN 7437, ISO 2380/2, drive output acc. to DIN 5264, ISO 2380/1. SoftFinish grip General ordering data Type SDIS 0.8X4.0X100 Order No. 9008400000 Version Screwdriver, Blade width (B): 4 mm, Blade length: GTIN (EAN) Qty. 4032248056361 1 pc(s).
PAGE 8
Technical data Screw size M 2.5 Connector type Signal contacts S 6/6 Dia. tightening torque in Nm Recommended blade inserts and AF size for hexagon socket 0.5 - 0.55 SD 0.6 x 3.5 mm or PZ0 S 6/12 Fastening screws HQ 4/2 0.5 - 0.55 SD 0.6 x 3.5 mm or PZ0 0.8 (plastic) / 1.1 (metal) SD 0.6 x 3.5 mm or PH0 HQ 8 0.8 (plastic) / 1.1 (metal) SD 0.6 x 3.5 mm or PH0 HQ 17 Contact screws HA 3 0.8 (plastic) / 1.1 (metal) SD 0.6 x 3.5 mm or PH0 0.5 - 0.55 SD 0.5 x 3.0 mm HA 4 0.5 - 0.55 SD 0.
