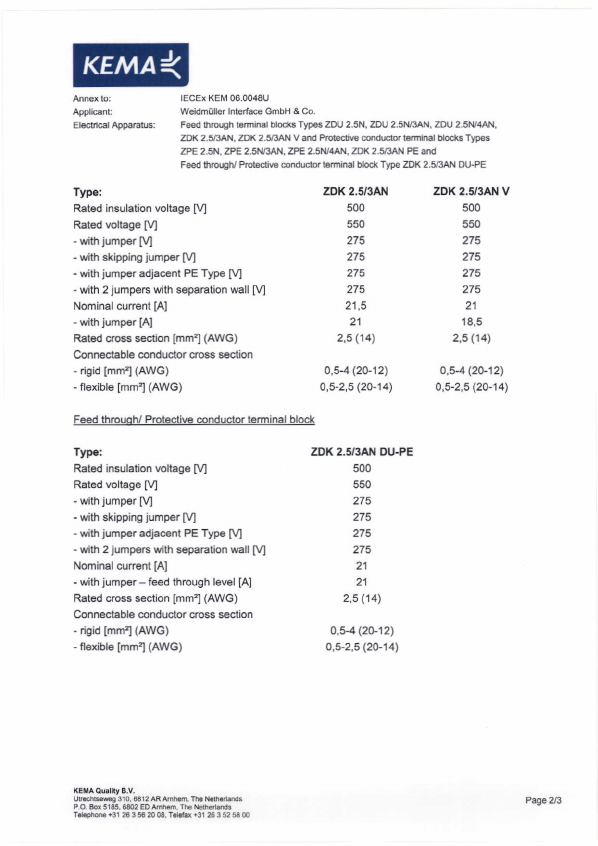

Approval/Certificate/Document of Conformity

Annex to:
AppJicant
EIectricaI Apparatuso
IECEx KEM 06.0048U
Weidmüller Interface GmbH & Co.
Feed through terminal blocks Types ZDU 2.5N. ZDU 2.5N13AN, ZDU 2.5N14AN.
ZOK 2.5I3AN. ZDK 2.5I3AN Vand Protective conductor tennlnal bIocks Types
ZPE 2.5N. ZPE 2.5NI3AN. ZPE 2.5Nf4AN. ZDK 2.5I3AN PE ancl
Feed throughl Protective conductor terminal block Type ZDK 2.5I3AN DU-PE
Type:
Rated insulation voltage M
Raled voltage M
-withjumper M
- with skipping jumper M
- with jumper adjacenl PE Type M
- with 2 jumpers with separation wall M
Nominal current [Al
- with jumper [Al
Rated cross section [mm') (AWG)
Connectable conductor aoss section
- rigid [mm'l (AWG)
- flexible [mm'l (AWG)
Feed throuahl Protective conductor terminal block
ZDK 2.5/3AN
500
550
275
275
275
275
21.5
21
2,5(14)
0,5-4 (20-12)
0,5-2,5 (20-14)
ZDK 2,5/3AN V
500
550
275
275
275
275
21
18,5
2,5(14)
0,5-4 (20-12)
0,5-2,5 (20-14)
Type:
Rated insulation vortage M
Raled vollage M
- wilh jumper M
- wilh skipping jumper M
- with jumper adjacenl PE Type M
- with 2 jumpers with separation wall M
Nominal currenl [Al
- wllh jumper - feed through level [Al
Rated cross section [mm'l (AWG)
Connectable conductor cross section
- rigid [mm') (AWG)
- flexible [mm'l (AWG)
KeMA Quallty B.V.
Utreehtseweg 310, 6812 AR Amhem. The Netherlar.ds
P.Q. Box516S. 6802 EDAmhem, The Netherland,
TeIephone+31263562008.Telefax+31263525800
ZDK 2.513AN DU-PE
500
550
275
275
275
275
21
21
2,5 (14)
0,5-4 (20-12)
0,5-2,5 (20-14)
Page 213
