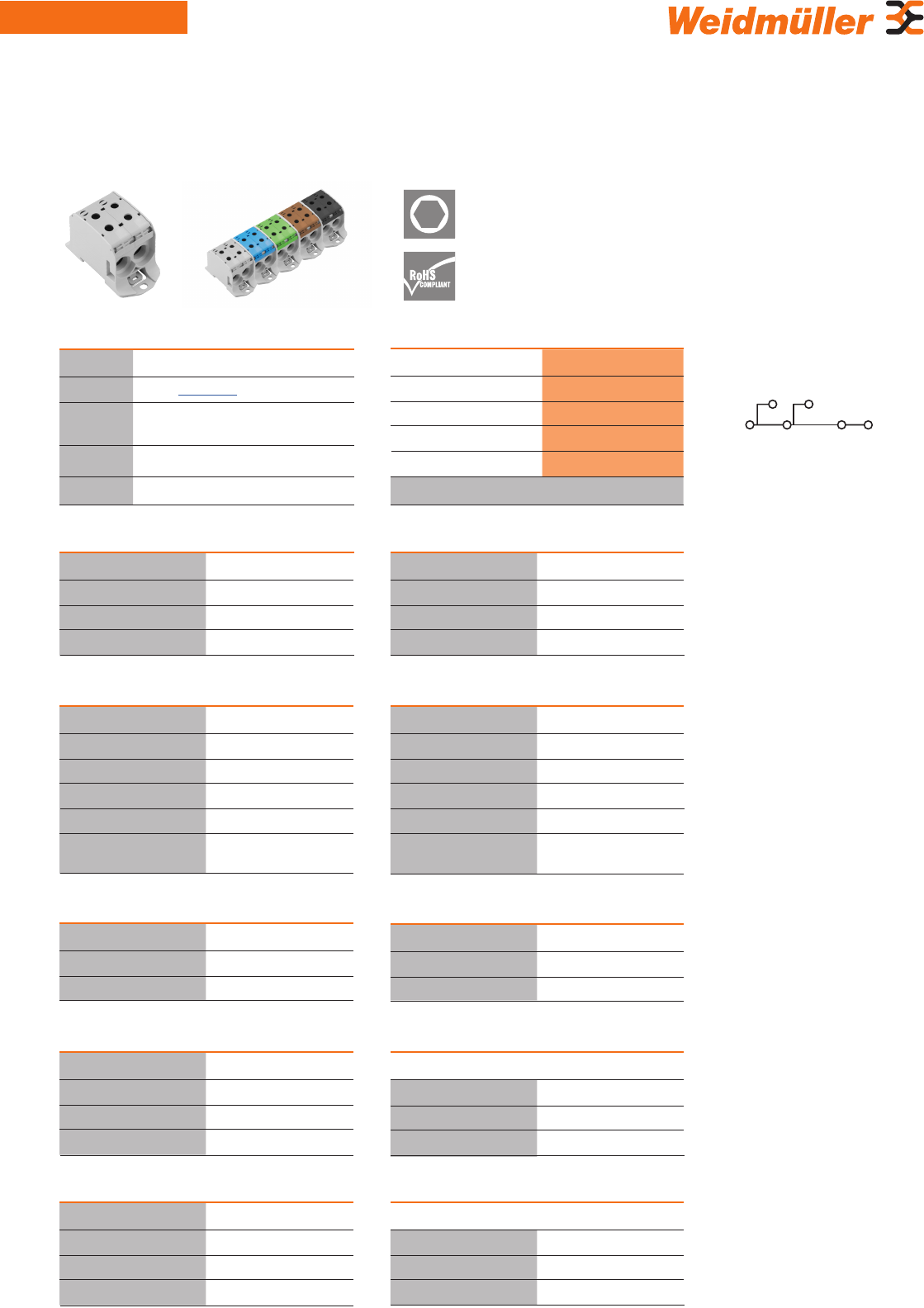

User Documentation

Data sheet
W-Series
WPD 231 2X95/2X95 GY
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: [phone]
Fax: [phone]
www.weidmüller.com
General ordering data
Type WPD 231 2X95/2X95 GY
Order No. 2502700000
Version W-Series, Distribution block, Rated cross-
section: 95mm
2
, Terminal rail/mounting plate
GTIN (EAN) 4050118516524
Qty. 1 pc(s)
Colour types
GY (light grey) 2502700000
BL (blue) 2502710000
GN (green) 2502720000
BN (brown) 2502730000
BK (black) 2502740000
Dimensions and weights
Width 47 mm (1.85 inch)
Height 93 mm (3.661 inch)
Depth 57 mm (2.244 inch)
Net weight 178 g
Material data and temperatures
Material body Aluminium (tin plated)
Material housing PA (Halogen-free)
UL 94 ammability rating V-0
Continous operating temp. area -50 °C - 120 °C
Raiting data
Rated cross-seaction 95 mm
2
Rated AC voltage 1,000 V AC
Rated current CU 232 A
Standards IEC 60947-7-1
Pollution severity 3
Power loss according to on request
IEC 60947-7-x
Rated voltage 1,000 V
Rated AC voltage 1,000 V DC
Rated current (Al) 200 A
Rated impulse withstand voltage 8 kv
Surge voltage category III
Contact resistance according to on request
IEC 60947-7-x
Raiting data IECEx/ATEX
Certicate No. (ATEX) CNEX 18 ATEX 0016U
Max. voltage (ATEX) 880 V
Current (ATEX) 232 A
Certicate No. (IECEX) IECEx CNEX 18.0010U
Max. voltage (IECEX) 880 V
Current (IECEX) 232 A
UL rating data
Certicate No. (UR) XCFR2.E60693
Current size B,C (UR) - CU 200 A
Coltage size B,C (UR) 600 V
Wire cross section max. (UR) 6 AWG str.
Current size B,C (UR) - AI 155 A
Voltage size B,C (UR) 600 V
Wire cross section min. (UR) 3/0 AWG str.
CSA rating data
Certicate No. (cURus) XCFR2.E60693
Current size B,C (cURus) - CU 200 A
Coltage size B,C (cURus) 600 V
Wire cross section max. (cURus) 6 AWG str.
Current size B,C (cURus) - AI 155 A
Voltage sizeC (cURus) - AI 600 V
Wire cross section min. (cURus) 3/0 AWG str.
1
Catalogue status 12.02.2019 / We reserve the right to make technical changes.
95 mm² 95 mm²
10 mm²
95 mm² 95 mm²
10 mm²
