8 Processdata | Process data mapping
49Manual Communication module UR20-4COM-IO-LINK2547720000/03/09.2019
8.1 Process data mapping
,2/LQNGHYLFH,2/LQNSRUW
3URFHVVGDWDOHQJWK,QSXW%\WH
3URFHVVGDWDOHQJWK2XWSXW%\WH
,2/LQNGHYLFH,2/LQNSRUW
3URFHVVGDWDOHQJWK,QSXW%\WH
3URFHVVGDWDOHQJWK2XWSXW%\WH
3URFHVVGDWD
RXWSXWV
3URFHVVGDWD
LQSXWV
,2/LQNGHYLFH,2/LQNSRUW
3URFHVVGDWDOHQJWK,QSXW%\WH
3URFHVVGDWDOHQJWK2XWSXW%\WH
,2/LQNGHYLFH,2/LQNSRUW
3URFHVVGDWDOHQJWK,QSXW%\WH
3URFHVVGDWDOHQJWK2XWSXW%\WH
,%
,%
,%
,%
,%
,%
,%
,%
,%
,%
,%
,%
,%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
,%
,%
,%
,%
,%
2%
2%
2%
2%
2%
2%
3URFHVVGDWD
PRGXOH
%\WH
3URFHVVGDWD
,2/LQNGHYLFHV
%\WH

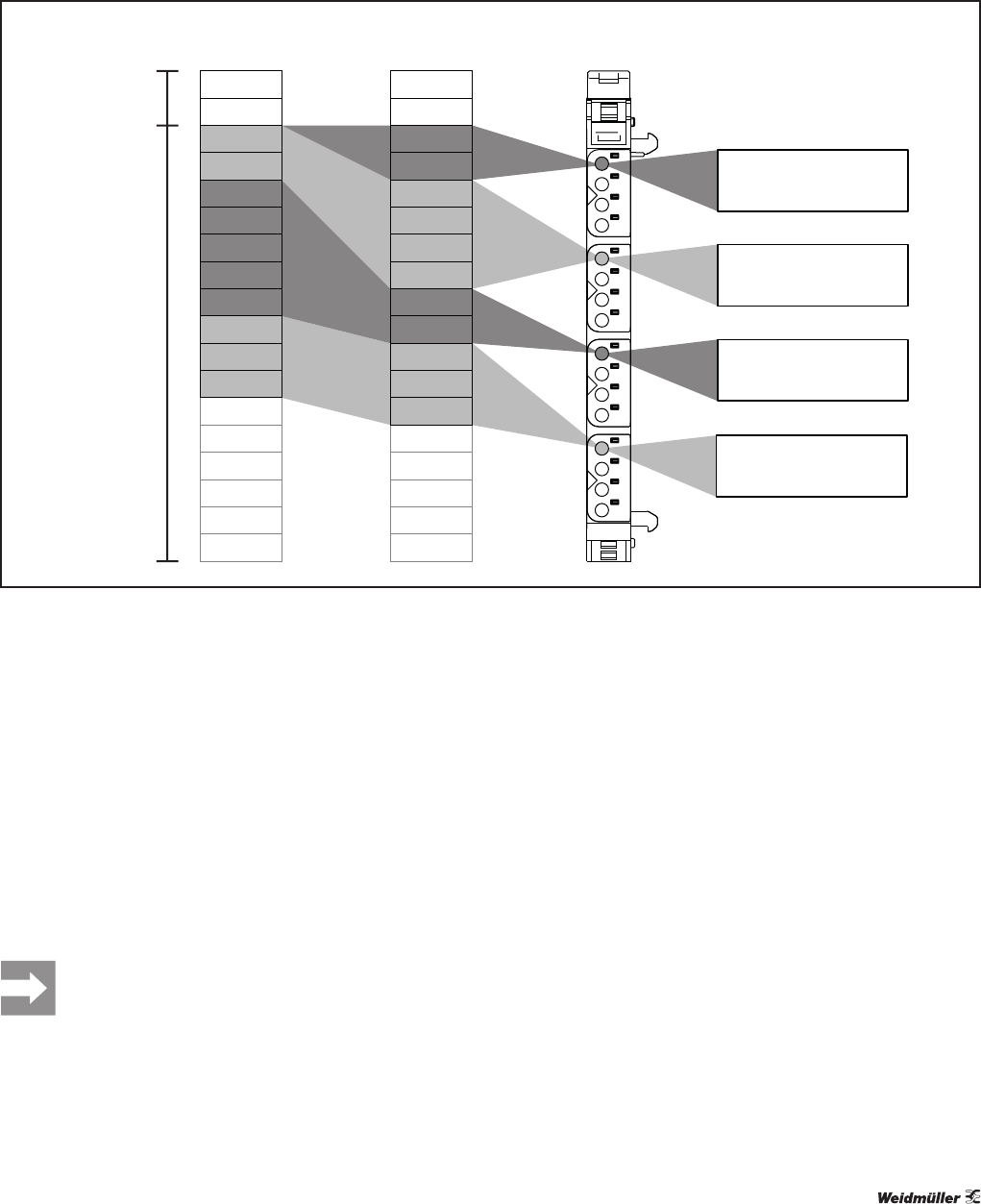

Example:Processdatamapping(Configuration:UR20-4COM-IOL-16BYTE-INOUT)
The process data length of the UR20-4COM-IO-LINK module
is adjustable and can be adjusted to the respective IO-Link
device conguration. The procedure for adjusting the pro-
cess data length depends on which eldbus coupler and
which engineering tool you are using (see Chapter 6).
The rst two bytes of the input data and output data respec-
tively contain the process data of the module. This is fol-
lowed by the process data of the IO-Link device connected.
Mapping of the process data for the individual IO-Link de-
vices to the process data of the module is dened with the
„Process data length input“ and „Process data length output“
parameters of the respective IO-Link port.
You can read out the mapping of the process data
(see section 6.9).
