6 Commissioning | Commissioning with the TIA portal (PROFINET)
27Manual Communication module UR20-4COM-IO-LINK2547720000/03/09.2019
6.5 Commissioning with the TIA portal
(PROFINET)
Installingthedevicedescriptionles
▶ In the project view, open: Extras / Manage general
station description files (GSD)
▶ Select the directory in which you have stored the device
description files.
The available les are displayed.

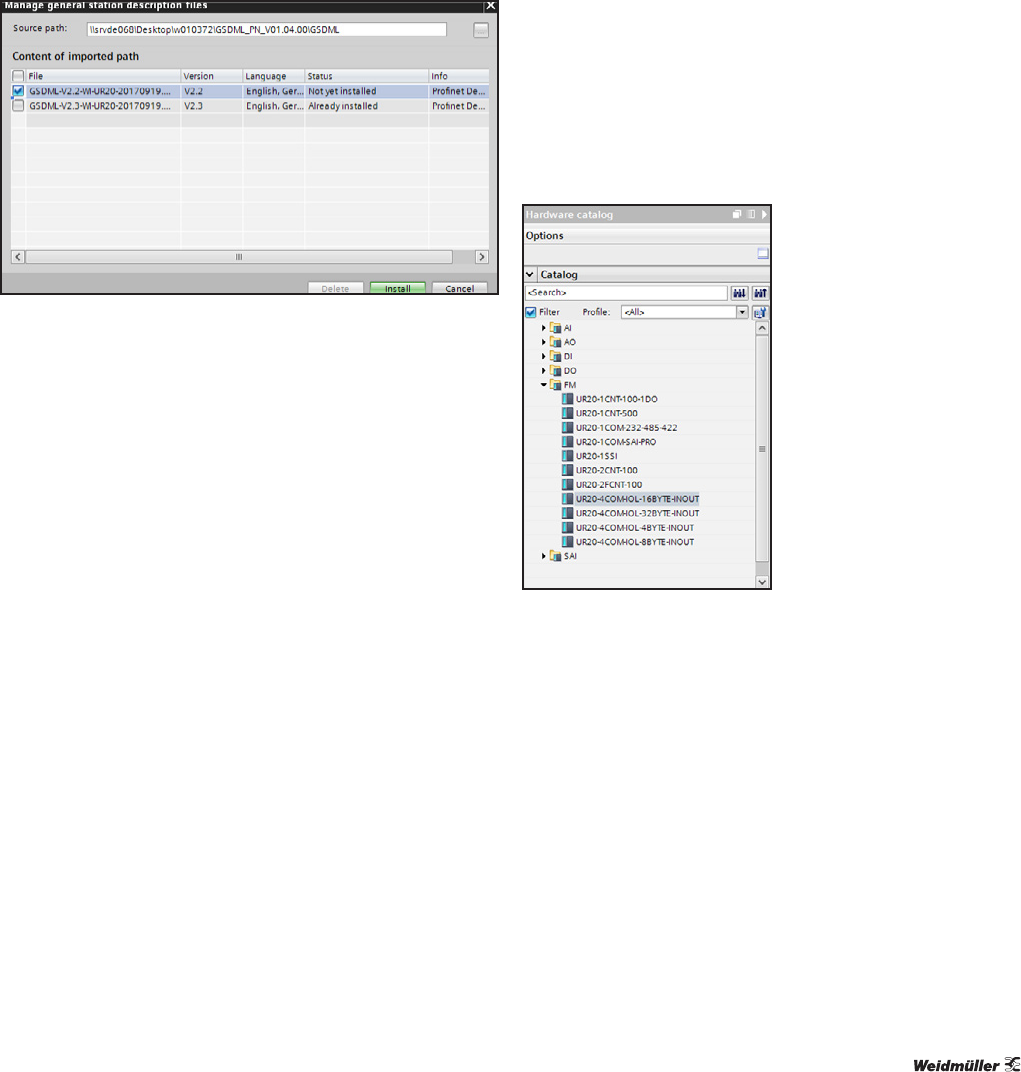

Selecting the GSD(-ML) file
▶ Select the files that you would like to install.
▶ Click Install.
▶ When the installation is complete, click Close.
The hardware catalogue is updated automatically. The devic-
es from the current device description le are now listed in
the hardware catalogue.
Integrating IO-Link master with the TIA portal
▶ Start the TIA portal.
▶ Create a new project or open an existing project.
▶ Configure the controller and the network as usual.
▶ Add the appropriate u-remote fieldbus coupler to the sub-
net.
▶ In the hardware conguration tool, click the icon for the
eldbus coupler.
The device overview is displayed.
▶ In the device overview, click the plug-in station to which
you want to add the IO-Link master.
The device description les support various congura-
tions for the UR20-4COM-IO-LINK module. The congu-
rations differ only in the length of the process data for the
IO-Link devices connected, e.g. 16bytes input data and
16bytes output data for IO-Link devices for the conguration
UR20-4COM-IOL-16BYTE-INOUT.
Select module with the appropriate process data length
▶ Determine the required process data length of the
IO-Link master, by adding the length of the input data and
output data of the IO-Link devices connected.
▶ In the device catalogue, select the UR20-4COM-IO-LINK
module with a process data length greater than or equal
to the required length.
