6 Commissioning | Commissioning with the SIMATIC Manager (PROFINET)
26 2547720000/03/09.2019Manual Communication module UR20-4COM-IO-LINK

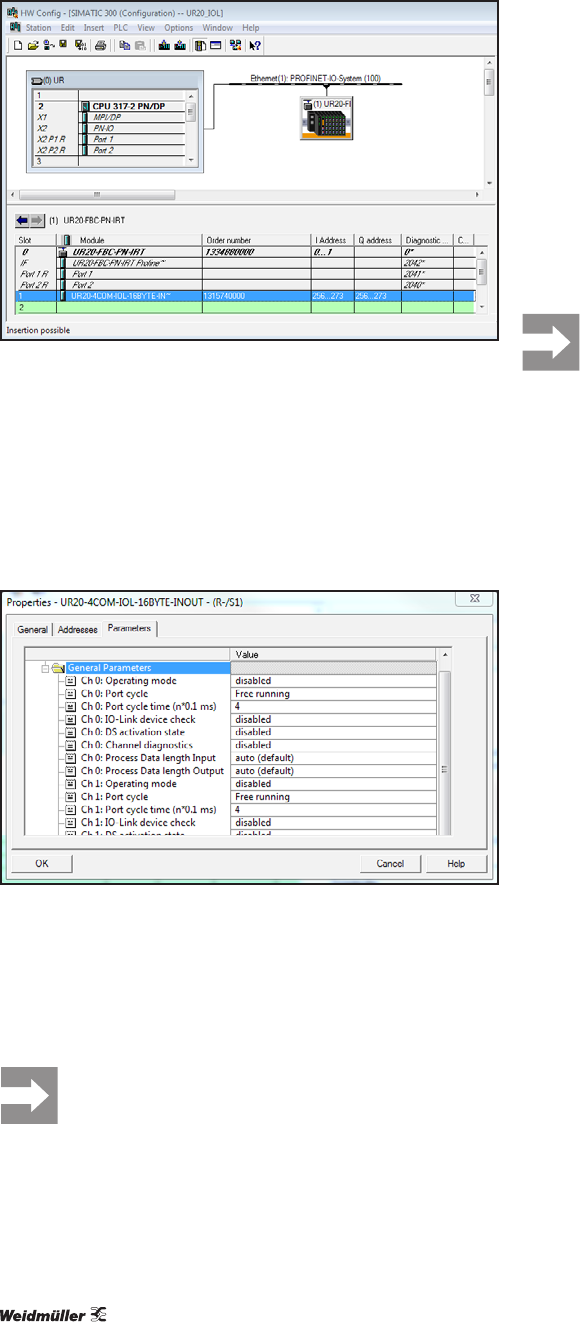

AddingIO-LinkmasterinSIMATICManager(Example:PROFINET)
Parameterising IO-Link port with SIMATIC Manager
The IO-Link ports are parameterised using the IO-Link master
parameters. An overview of all parameters is presented in
section 4.6.
▶ Double-click the module in the module list.
The UR20-4COM-IO-LINK Properties window opens.
▶ Select the Parameters tab
The list of all parameters is displayed.
Editing module parameters
▶ Click the parameter that you would like to change and
select the desired setting.
▶ Use this method to edit all of the parameters that you
want to change.
▶ Click OK to save the settings.
All settings only take effect once they have been
loaded into the component.
Integrating IO-Link device with SIMATIC Manager
An IO-Link device is integrated using the suitable parameteri-
zation of the associated IO-Link port.
▶ Double-click the module in the module list.
The UR20-4COM-IO-LINK Properties window opens.
▶ Select the Parameters tab.
▶ Set the “Operating mode” parameter of the IO-Link port to
the value “IO-Link”.
▶ Set each of the parameters “Process data length input”
and “Process data length output” to the value “auto”.
▶ Change the other parameters as required.
▶ Save the setting by clicking OK.
All settings only take effect once they have been
loaded into the component.
