Device Administration (DevAdmin)

System manual

2696790000/02/04.2020

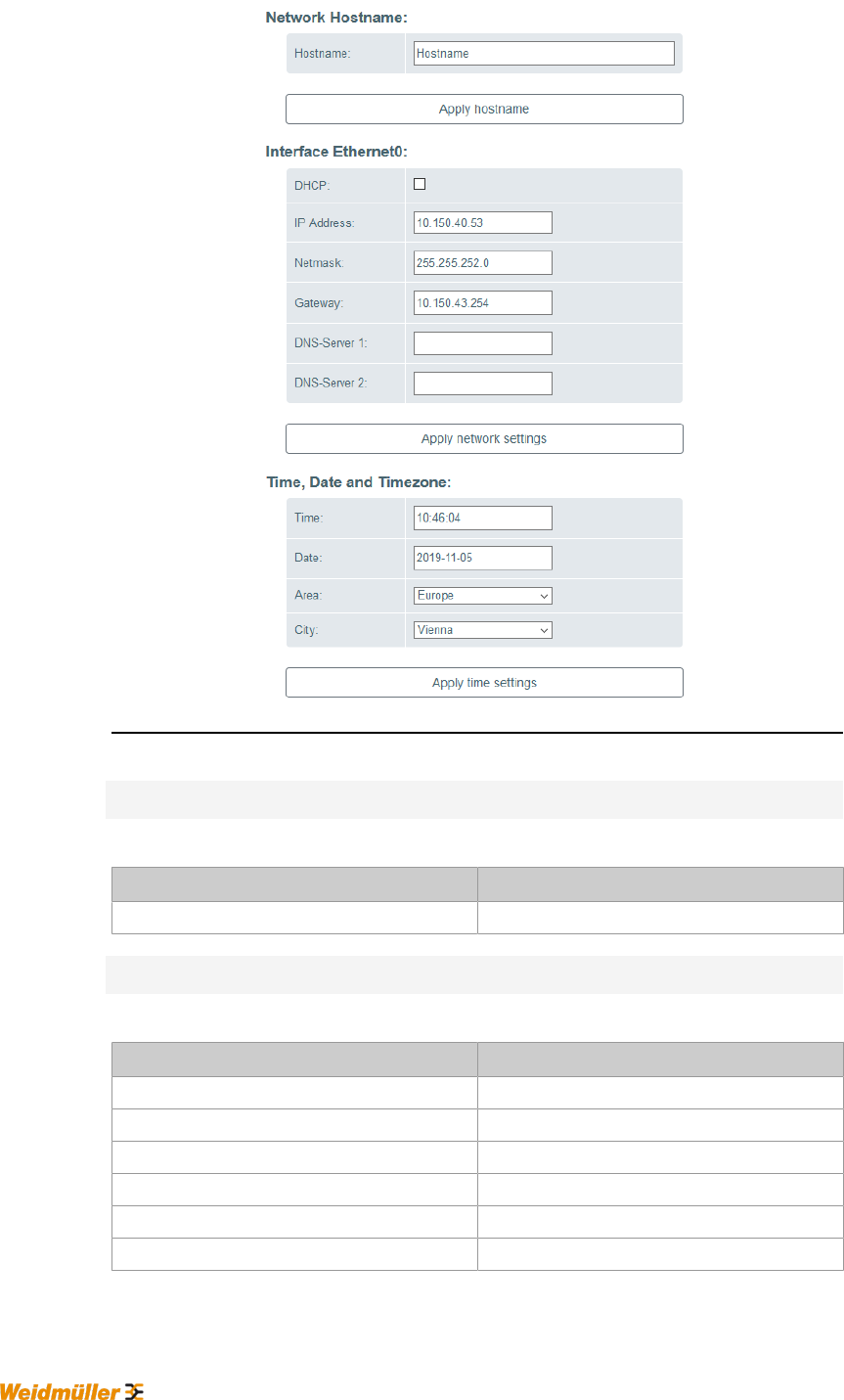

Fig.9-8: DevAdmin - Configuration

Area "Network Hostname"

In the area "Hostname" the following settings can be done:

Setting Description

Hostname Host name of the control

Area "Interface Ethernet0"

In the area "Interface Ethernet0" the following settings can be done:

Setting Description

DHCP Activate or deactivate DHCP

IP Address IP address of the control

Netmask Set subnet mask

Gateway Set gateway

DNS-Server 1 Set DNS server 1

DNS-Server 2 Set DNS server 2
