OPC UA Server

System manual

2696790000/02/04.2020

11 OPC UA Server

The OPC UA Server can be installed as an optional software package (see

"Software Units"). This chapter describes the use of the OPC UA Server on

Weidmüller controls with the Linux operating system.

OPC Unified Architecture (OPC UA) is a standard for manufacturer-indepen-

dent networking of devices in the automation sector. This provides standard-

ized access options to the control. This standard allows any program (e.g.

an OPC UA client) that supports this standard to communicate with the Wei-

dmüller control and access data. For general information see: www.opcfoun-

dation.org

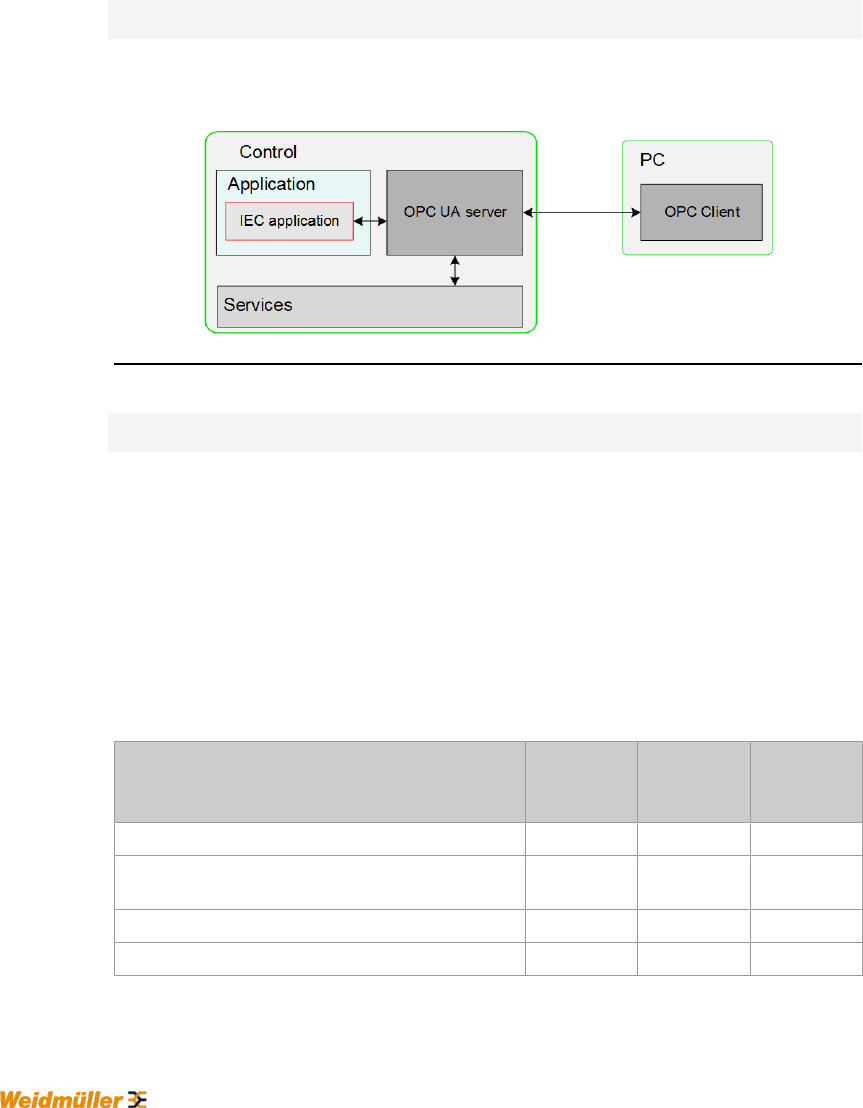

Overview

The OPC UA Server runs in addition to the applications on the control and

allows OPC UA clients to connect.

Fig.11-12: Overview

Installation

The OPC UA Server can be installed on the control as an optional package

via a target removable storage device. In the selection dialog, you can spec-

ify whether the OPC UA Server also accepts unencrypted connections.

For further information, please refer to u-create studio online help.

11.1 Overview of variants

The following table provides an overview of the product versions and their

functionalities.

Functionality

OPC UA

Server

OPC UA

Server

Pro

OPC UA

Server

Adv

SecureChannel: x x x

Number of simultaneous client connections (ses-

sions):

1 25 25

User authentication: x x x

Services as per table below: x x x
