Program development

System manual

2696790000/02/04.2020

Priority linux Priority IEC

57 8

54 9

51 10

48 11

46 Reserved for UOS task

45 12

42 13

39 14

36 15

Tasks outside real time

This tasks run in the linux scheduler "SCHED_OTHER".

Priority linux Priority IEC

10 ("nice level") 16 - 31

0 ("nice level") Default linux processes

7.2 Fast control

Fast control is used to reduce the system reaction time. This means reading

the inputs, processing the data and writing the outputs need less cycles.

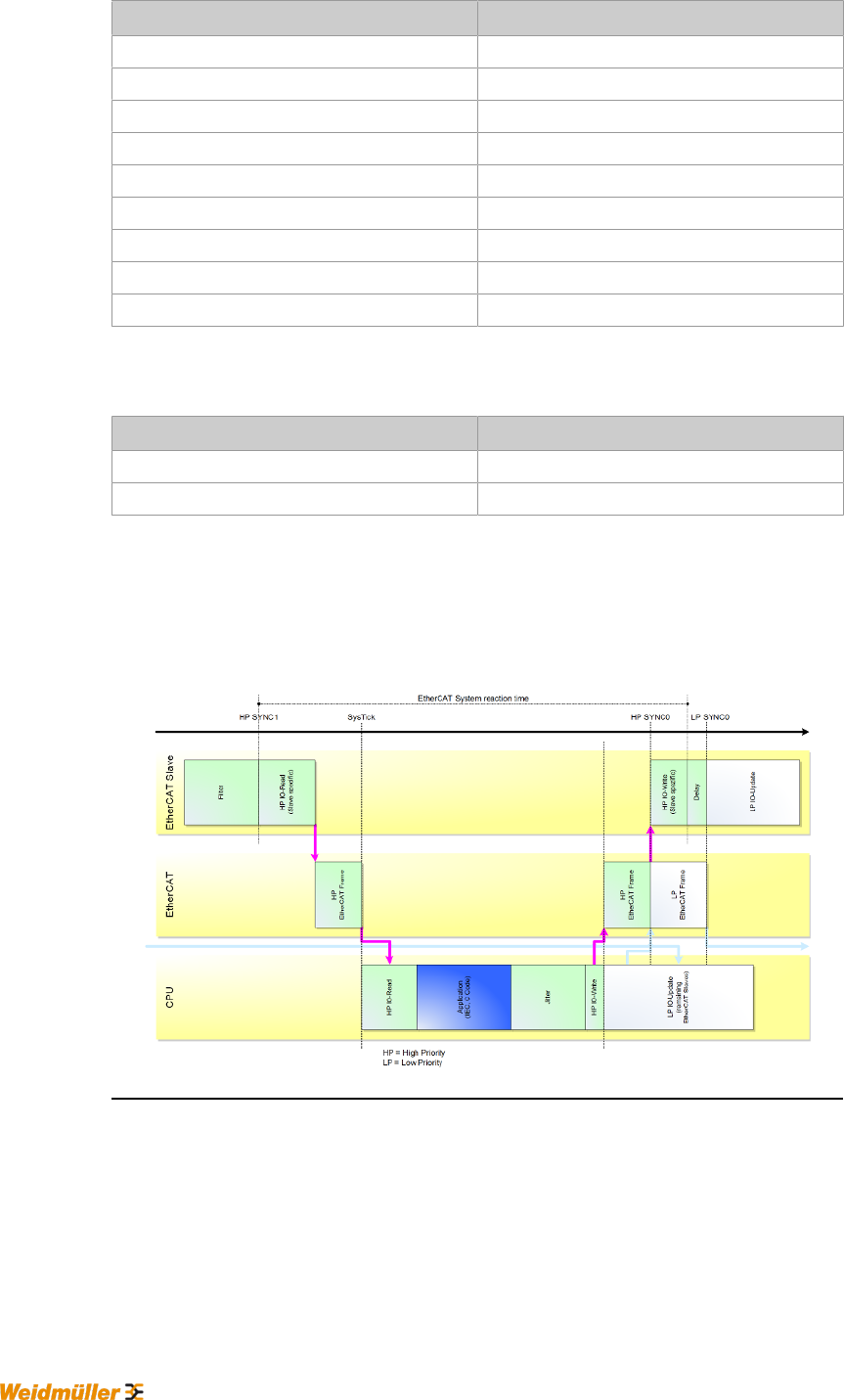

Fig.7-4: Timing Diagram

The configuration of the fast control happens in the u-create studio (see on-

line help "Configure EtherCAT slave").
