User Documentation

Keep away from catenary and high voltage lines.
Be careful when working at height!
Always secure ladders!
Always tighten screws!
Antenna designed for outdoor use

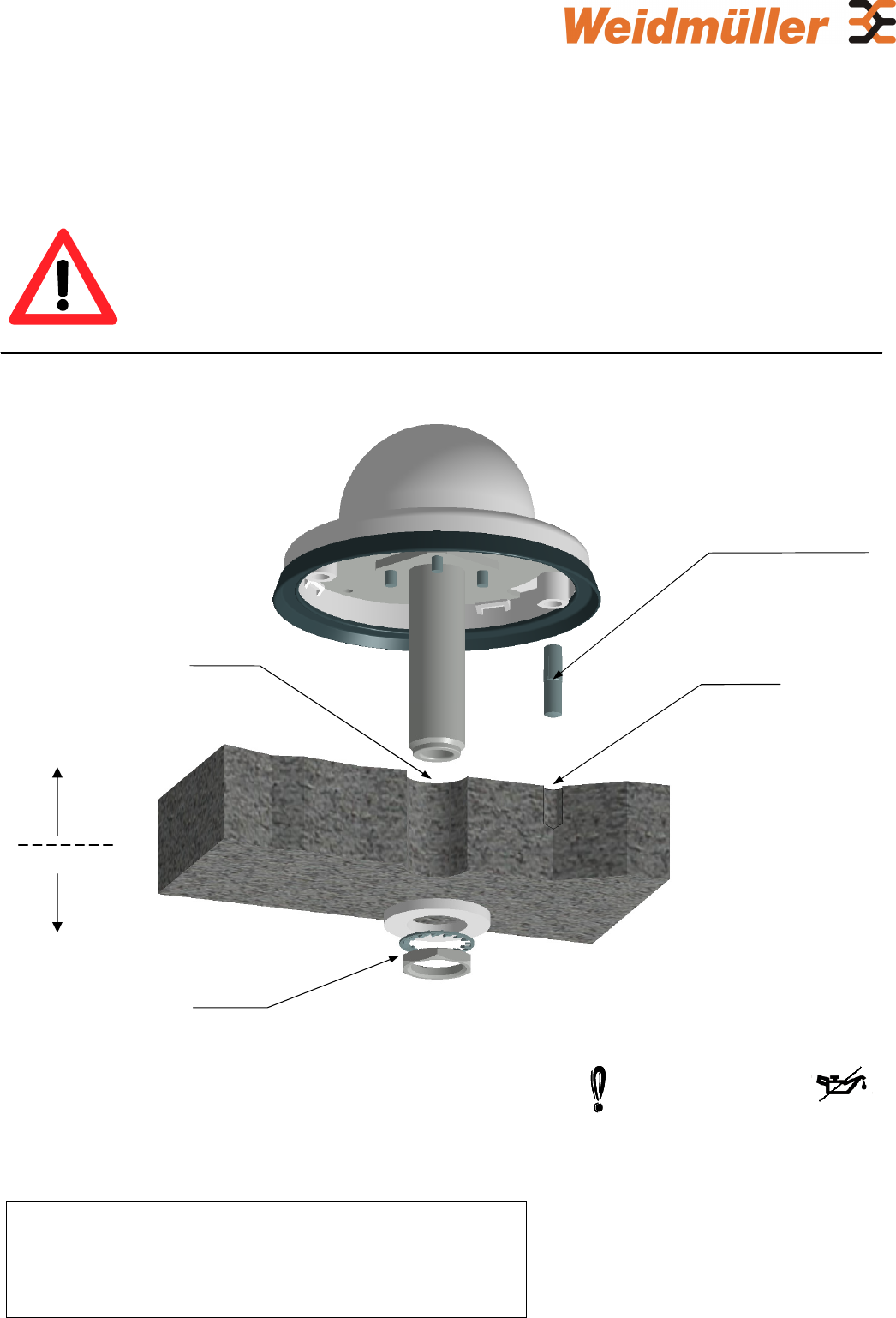

Single hole mount
Optional: Grooved pin
(included)
Ø 5-6
(depth min. 11)
Ø 16-20
Nut
Toothwasher
Washer
(torque: 2-3 Nm)
outdoor
indoor
The contact with acetone,
gasoline and oil, should be
avoided.
Weidmüller Interface GmbH & Co. KG
OMNI Antenna
FOR WIRELESS COMMUNICATION
MOUNTING INSTRUCTION
WAIVER!
It is exclusively in written agreements that we provide our customers with
warrants and representations as to the technical contained specifications and/or
the fitness for any particular purpose. The facts and figures herein are carefully
compiled to the best of our knowledge, but they are intended for general
informational purposes only.
Weidmüller Interface GmbH & Co. KG
Postfach 3030
Klingenbergstraße 16
32758 Detmold
Phone [phone]
Fax [phone]
E-Mail: [e-mail]
www.weidmueller.com
1374700000/01/03.15
Page 1 of 1
