User Documentation

392583070000/00/04.2018
Cleaning and maintaining the machine
7.4 Cleaning rollers
Remove the protective cover.
Rub the feed rollers with a soft cloth and some spirit.
7.5 Clean cutting area
Remove the protective cover.
Blow out the cutting area with compressed air.
7.6 Cleaning the interior
Clean the inside of the machine with a brush and, if nec-
essary, with a vacuum cleaner.
Never use compressed air for cleaning the inside
because otherwise small parts (e.g. cutting res-
idues) become inaccessible on the inside of the
machine. This may result in malfunctions and
operational stoppages.

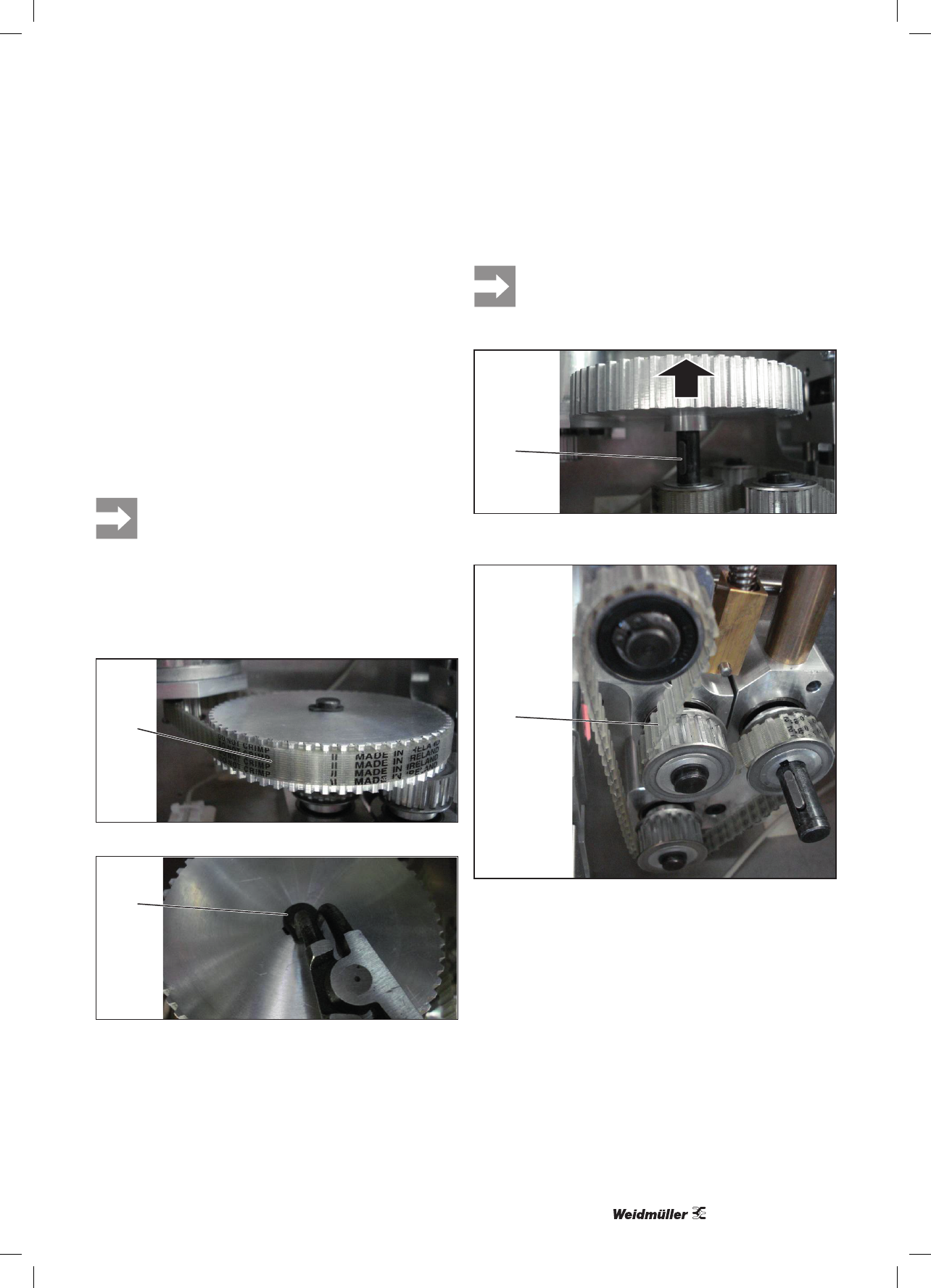

7.7 Replace toothed belt
1
Remove the toothed belt (1) from the drive motor.
2
Remove the circlip (2).
Note the feather key (3) below the gear wheel.
Lift the gear wheel o󰀨 carefully. Make sure
that the feather key stays in its position in the
process.
3
Close the feed rollers with the rotary switch
(Figure 3.1, 1).
4
Remove the double-sided toothed belt (4).
Installation:
Attach the new double-sided toothed belt.
Open the feed rollers to tension the toothed belt.
Attach the gear wheel and x it with the circlip.
Attach the toothed belt to the drive motor.
