Operating the machine
2583070000/00/04.201836

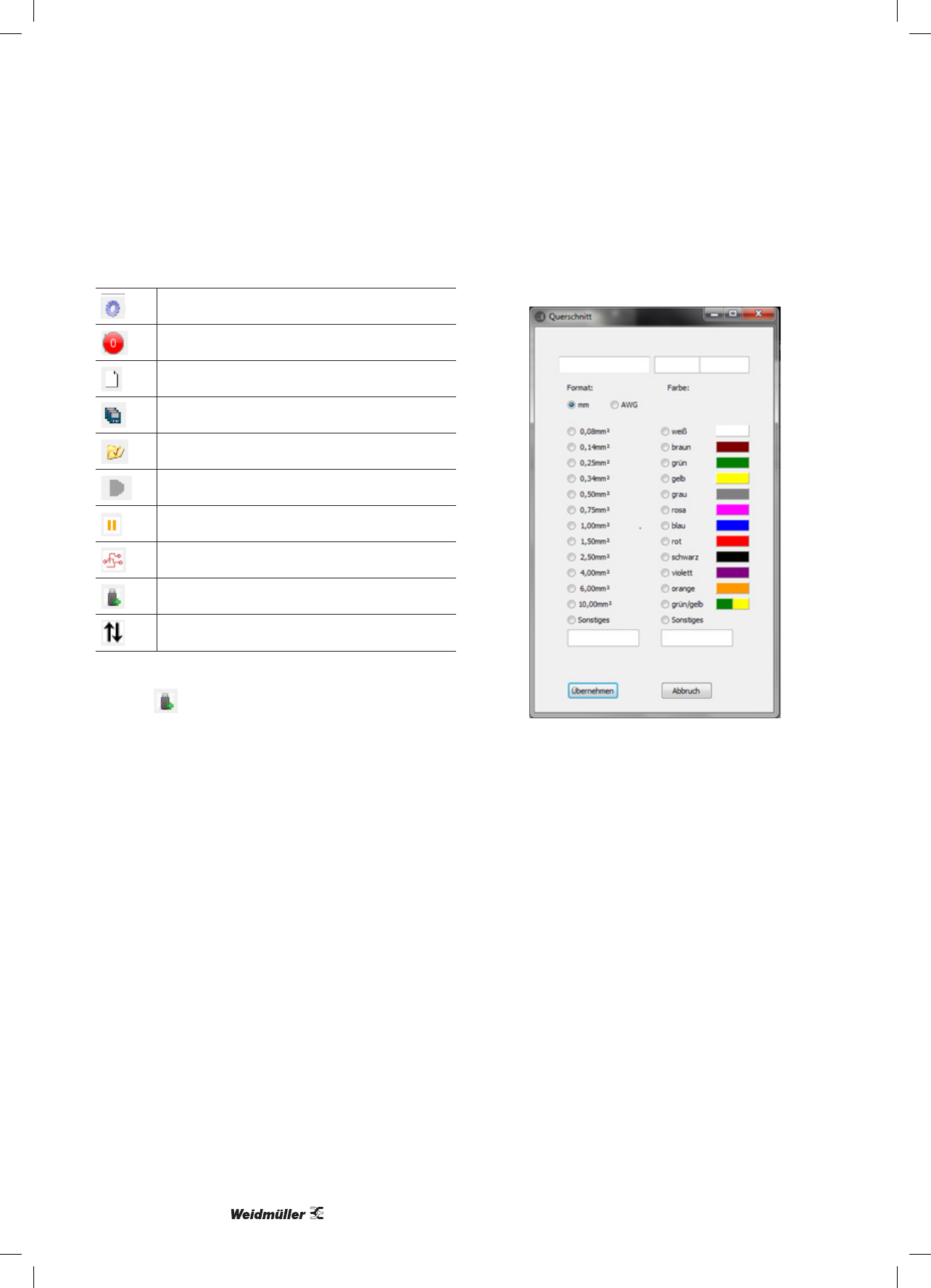

Function buttons
Modifying the COM interface
Status of COM connection
Deleting displays
Saving program data
Opening program data
Starting cable list processing
Pausing cable list processing
Fading wiring data in / out
Generating UBS data
Sorting cable list (as per drawing)
Generating UBS data:
► Select .
This enables transfer of data to a USB stick.
► Generate a description for precise denition of data (pro-
duction data).
This will be queried by the software.
This will be followed by a query of the ling location for the
generated le UCUSBxxx.txt.
► Select the USB stick.
– The USB data must then be led in a folder named
UCUSBDIR.
– If no such folder exists it will be created by the program.
► Remove the USB stick and insert it in the machine.
► Go to menu 4 “USB data”.
► Press E.
► Use the arrow keys to select the corresponding le.
The description (production data) will also be displayed.
► Press E.
The data is loaded. Storage starts at program 501. Existing
data will be overwritten.
► Go to menu 2 “Wiring data”.
The data is displayed on the screen.
► Press the start button to begin processing.
about 4. : Input options in description eld.
Free text can be inserted in the white elds.
