User Documentation

Setting up the machine
2583070000/00/04.201830
5.4 Loading production data into machine
Prerequisite: The production data prepared in the WI Man-
ager has been copied onto a USB stick.
The handling of the WI Manager is described in
chapter 6.9.
► Insert the USB stick into the USB socket on the back of
the control unit. (Fig. 3.2 12)
► Open Menu 4.
The USB interface is displayed.
► Press E.
The production data is transferred to the machine.
► Remove the USB stick from the USB socket.

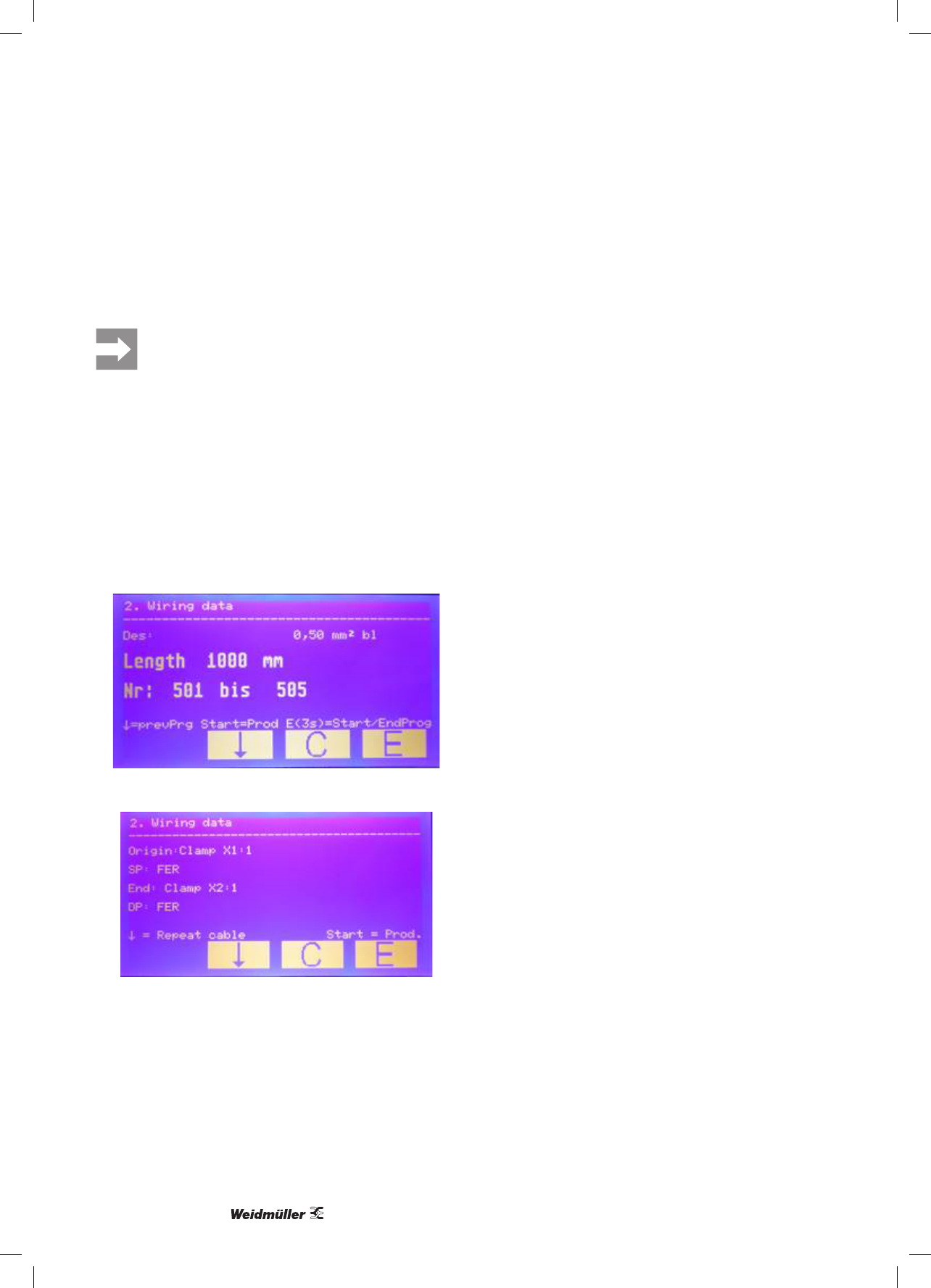

5.5 Use of wiring data
► Open Menu 2.
The following display appears.
► Press the start button to start processing.
When processing is nished, the display changes:
► Press the arrow key to repeat the just inished program.
► Press the start button to start processing the next pro-
gram.
5.6 Changing the production program
The standard parameters in each production program can
be modied:
– Program number
– Name
– Piece quantity
– Length (in mm)
The short program must be deactivated before changing
the following parameters (see section 5.7):
– Partial quantity
– Correction
– Partial quantity waiting time
– Motor waiting time
– Cable type
► Open Menu 5.
► Enter the number of the program that you want to mod-
ify.
► Press E to open the program.
► Use the arrow keys to select the program parameter you
wish to modify.
► Press E.
The cursor will ash
► Carry out the modication.
► Continuously press E for at least 3 seconds to save the
setting.
► Further parameters can be modied in the same way if
required.
► When all modications have been carried out, exit the
menu by pressing C.
5.7 Setting the short program
In the short program only the standard parameters can be
modied. To modify further parameters the short program
must be deactivated.
► Open the menu item “Short program” in Menu 6.
► Use the arrow keys to select the required setting
(1 = active, 0 = not active).
► Press E to save the setting.
