Device description
3.1 Technical data
Cutx 8 Interface
Drive elektrisch
Supply voltage 100–240 V AC; 50/60 Hz
Power consumption 240 VA
Fuse (mains lter module) 2 x T2AH250V
Protection type IP20
Protection class I / Schutzleiter
Wire insertion length 200 mm
Cross section
feindrähtig 0.08–10.0 mm² (AWG 28–8), eindrähtig 0.08–2.50 mm² (AWG 28–14)
Max. external diameter 8 mm (7,87")
Length pre-selection 1–999 999 mm (0.04-39370")
Programming memory max. 2000 Schneidaufträge
Slip correction artikelspezisch programmierbar
Feed speed max. 1.5 m/s
Ambient temperature
Operation +5 °C bis 40 °C
Storage / transport -25 °C bis +55 °C (kurzzeitig +70 °C)
Internal temperature in operation max. 45 °C
Max. operating height 2000 m über NN
Humidity 50% bei +40 °C (ohne Betauung), 90% bei +20 °C (ohne Betauung)
Contamination level 2
Continuous sound pressure level < 70 dB (A)
Dimensions (WxDxH) 385 x 360 x 470 mm (15.16" x 14.17" x 18.50")
Colour RAL 2000
Weight 20 kg (44.09 lbs)

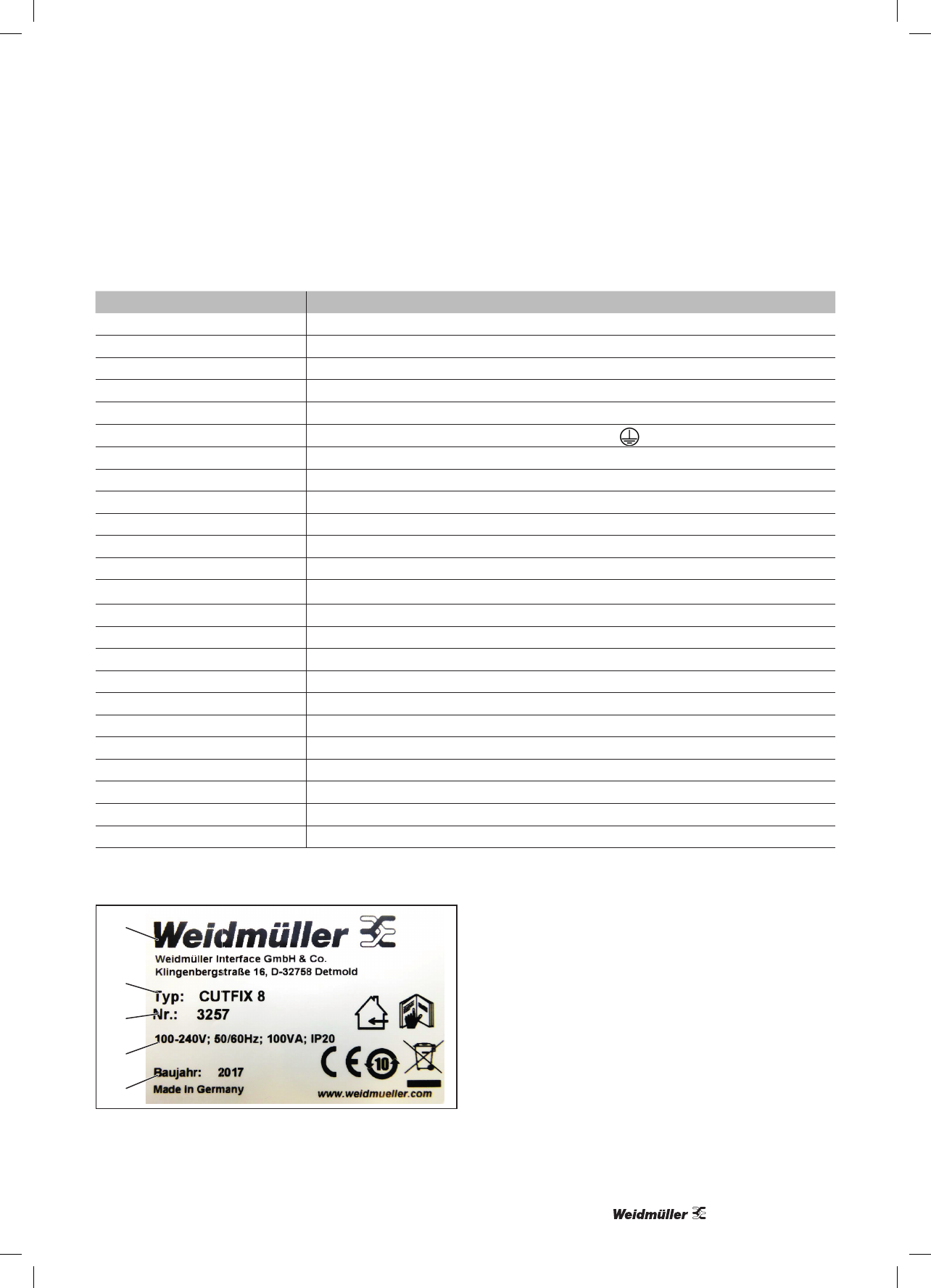

3.2 Type plate
1
2
3
4
5
Figure 3.3 Type plate on the rear side of the machine
1 Manufacturer
2 Model, type description
3 Serial number
4 Technical specifications
5 Year of construction
