Data sheet



Creation date May 27, 2019 3:16:04 PM CEST

 Catalogue status 23.05.2019 / We reserve the right to make technical changes. 1

HDC insert

HDC S4 SAS

Weidmüller Interface GmbH & Co. KG

Klingenbergstraße 16

D-32758 Detmold

Germany

Fon: +49 5231 14-0

Fax: +49 5231 14-292083

www.weidmueller.com

General ordering data



Type HDC S4 SAS

Order No. 1789990000

Version HDC insert, Pin, 1000 V, 40 A, No. of poles: 4,

Axial screw connection, Size: 3

GTIN (EAN) 4032248212057

Qty. 1 pc(s).



The MixMate series of connectors can simultaneously

transmit high rated currents and voltages as well as

signals. An axial screw can be used to secure the wire.

Axial screw connection TOP connection

Summary of content (5 pages)

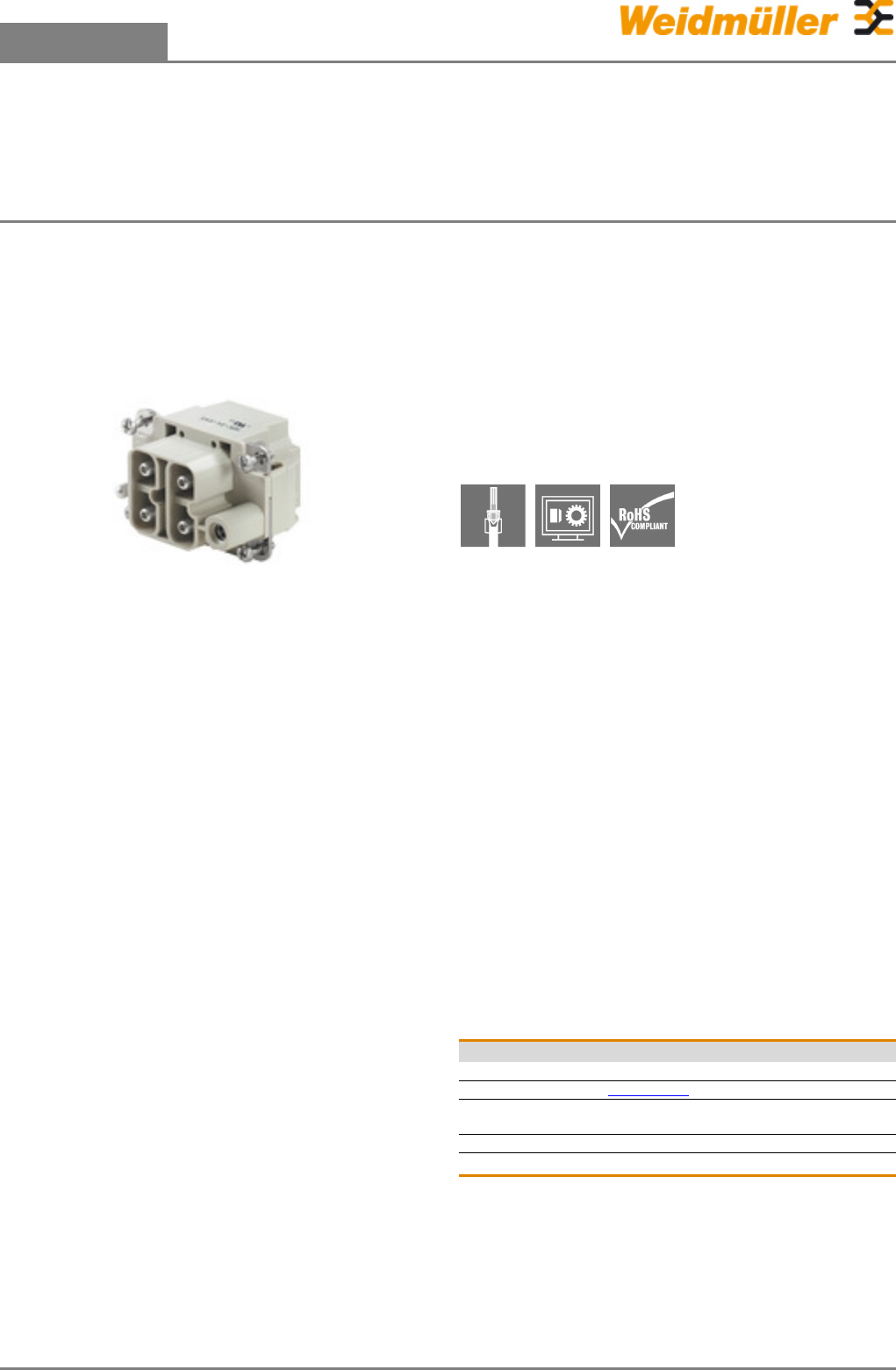

PAGE 1
Data sheet HDC insert HDC S4 SAS Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com The MixMate series of connectors can simultaneously transmit high rated currents and voltages as well as signals. An axial screw can be used to secure the wire. Axial screw connection TOP connection General ordering data Type Order No. Version GTIN (EAN) Qty. HDC S4 SAS 1789990000 HDC insert, Pin, 1000 V, 40 A, No.
PAGE 2
Data sheet HDC insert HDC S4 SAS Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Dimensions and weights Width Height Depth Net weight 34 mm 41.3 mm 51 mm 78.7 g Width (inches) Height (inches) Depth (inches) 1.339 inch 1.626 inch 2.008 inch Total length base 51 mm Insulating material PC glass-fibre reinforced (UL-listed and railwaycertified) Temperatures Limit temperature -40 °C ...
PAGE 3
Data sheet HDC insert HDC S4 SAS Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Power contact Clamping range, power contact, max. No. of poles, performance contact 6 mm² 4 Rated impulse voltage (DIN EN 61984), power contact 8 kV Stripping length, performance contact 8 mm Tightening torque, power contact, min. 1.1 Nm Clamping range, power contact, min.
PAGE 4
Data sheet HDC insert HDC S4 SAS Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Creation date May 27, 2019 3:16:04 PM CEST Catalogue status 23.05.2019 / We reserve the right to make technical changes.
PAGE 5
Technical data Screw size M 2.5 Connector type Signal contacts S 6/6 Dia. tightening torque in Nm Recommended blade inserts and AF size for hexagon socket 0.5 - 0.55 SD 0.6 x 3.5 mm or PZ0 S 6/12 Fastening screws HQ 4/2 0.5 - 0.55 SD 0.6 x 3.5 mm or PZ0 0.8 (plastic) / 1.1 (metal) SD 0.6 x 3.5 mm or PH0 HQ 8 0.8 (plastic) / 1.1 (metal) SD 0.6 x 3.5 mm or PH0 HQ 17 Contact screws HA 3 0.8 (plastic) / 1.1 (metal) SD 0.6 x 3.5 mm or PH0 0.5 - 0.55 SD 0.5 x 3.0 mm HA 4 0.5 - 0.55 SD 0.
