19
Step 17

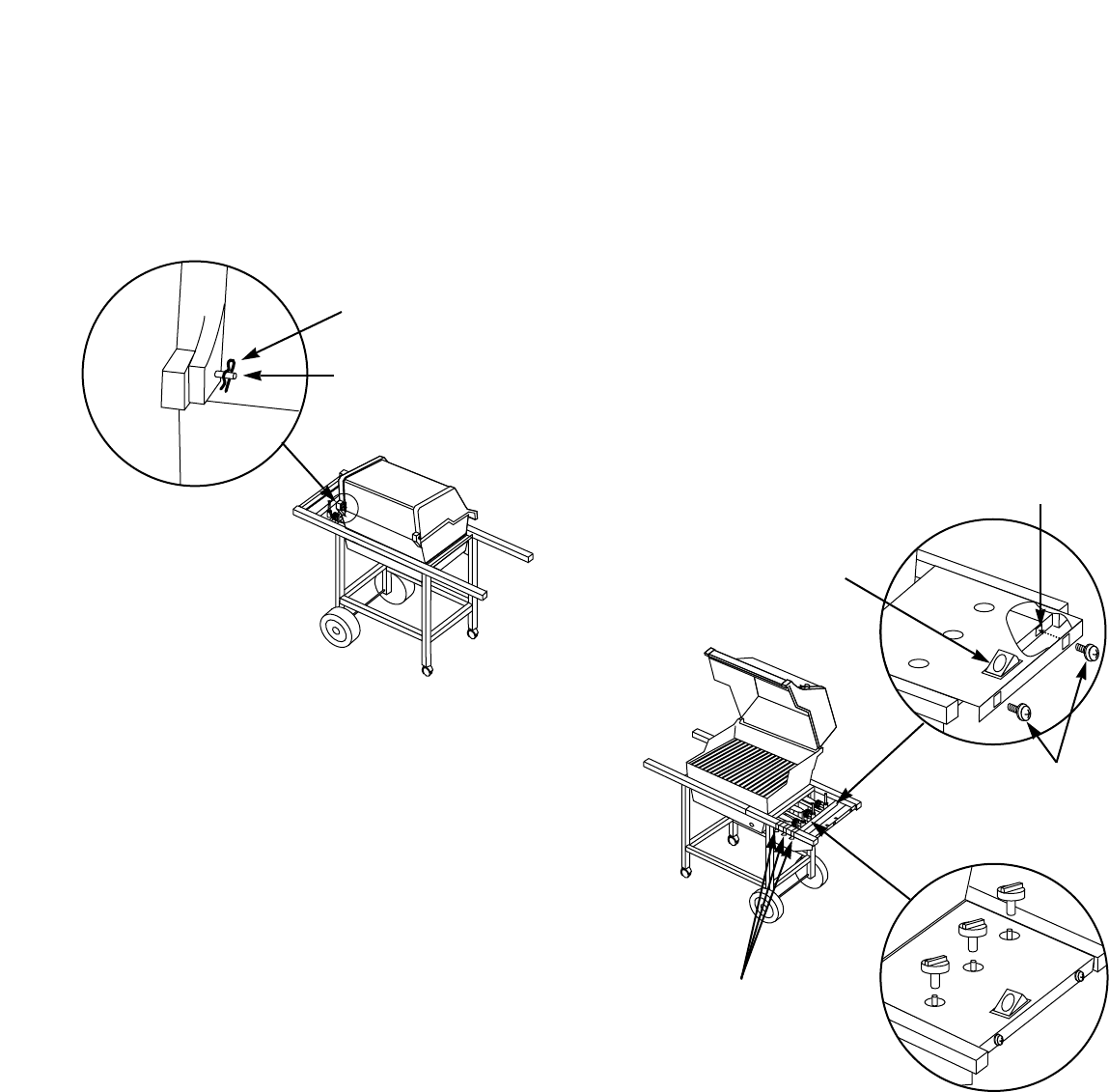

Install Lid
You will need: lid, two hinge pins and two hair pin cotters.
Set the lid in place. Align the hinges at the rear of the
barbecue. Insert hinge pins from the outside. Insert hair pin
cotters into the small holes in the hinge pins. Figure 22.
Hair pin cotter
Hinge pin
Figure 22
Step 18
Add tool holders, control panel and burner
control knobs
You will need: three tool holders, control panel, two
Phillips screws/washers, a Phillips screwdriver, and three
burner control knobs.
Hook the tool holders over the frame rail. Figure 23.
Set the control panel in place over both frame braces.
(Hold the Crossover Ignition button up while setting the
control panel in place.) Line up the holes in the control
panel with the holes in the frame brace. Insert screws and
tighten with a Phillips screwdriver until snug. Do not
overtighten. Figure 23 (a).
Push on the burner control knobs. Figure 23 (b).
Figure 23
Tool holders
Insert in
frame brace
Control panel
Phillips screws/
washers
(a)
(b)
Crossover
Ignition
Button
