Charcoal Grill - Barbecue Grill User Manual

10

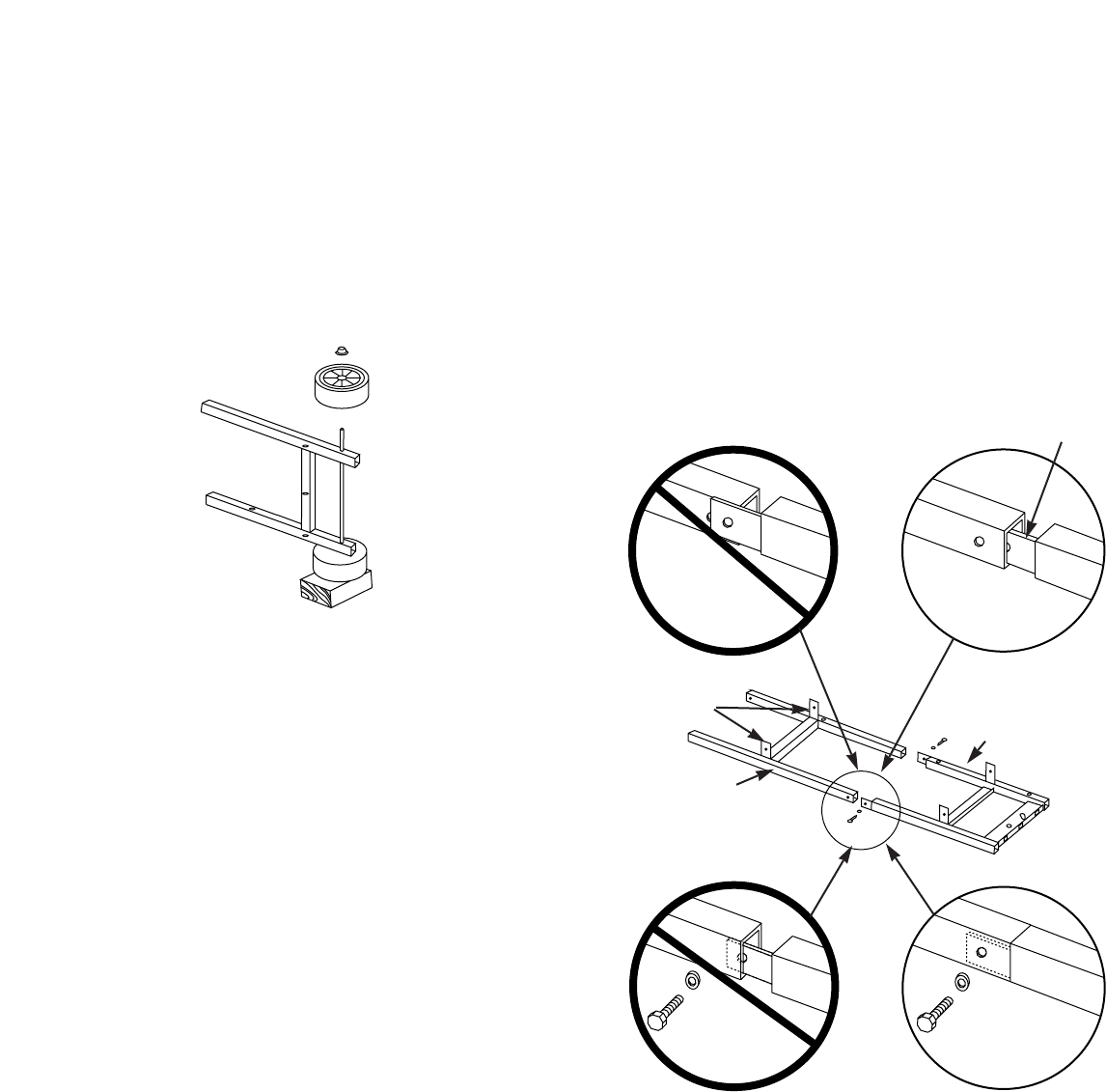

Figure 1
Step 2
Assemble wheels
You will need: axle, two wheel hubcaps, two wheels,
wheel frame, hammer and a block of wood.
Place one end of the axle on the block of wood (or other
protected surface). Tap on one hubcap.
Put one wheel on the axle, WEBER side toward the
hubcap. Slide the axle through the frame. Add the other
wheel, WEBER side out. Tap on the hubcap. Figure 1.
W
E
B
E
R
W
E
B
E
R
Figure 2
Step 3
Assemble top frame
You will need: left frame, right frame, two 1/4-20 x 1/2 inch
bolts, two nylon washers and a 7/16 inch wrench.
Note - Work on carpeted area (on grass or one of the
boxes) to protect the finish during frame assembly.
Lay the leg pieces as shown so the leg tabs point up.
Figure 2.
Slip the two frame pieces together with the tabs inside.
Figure 2 (a). Slip washers on bolts, insert bolts as shown
and tighten. Figure 2 (b). (If you try to insert a bolt and
there are no holes, you have the left frame turned the
wrong way. Turn the left frame around.)
Leg tabs
Frame tabs
(a)
(b)
Right frame
Left frame
