User Manual

13

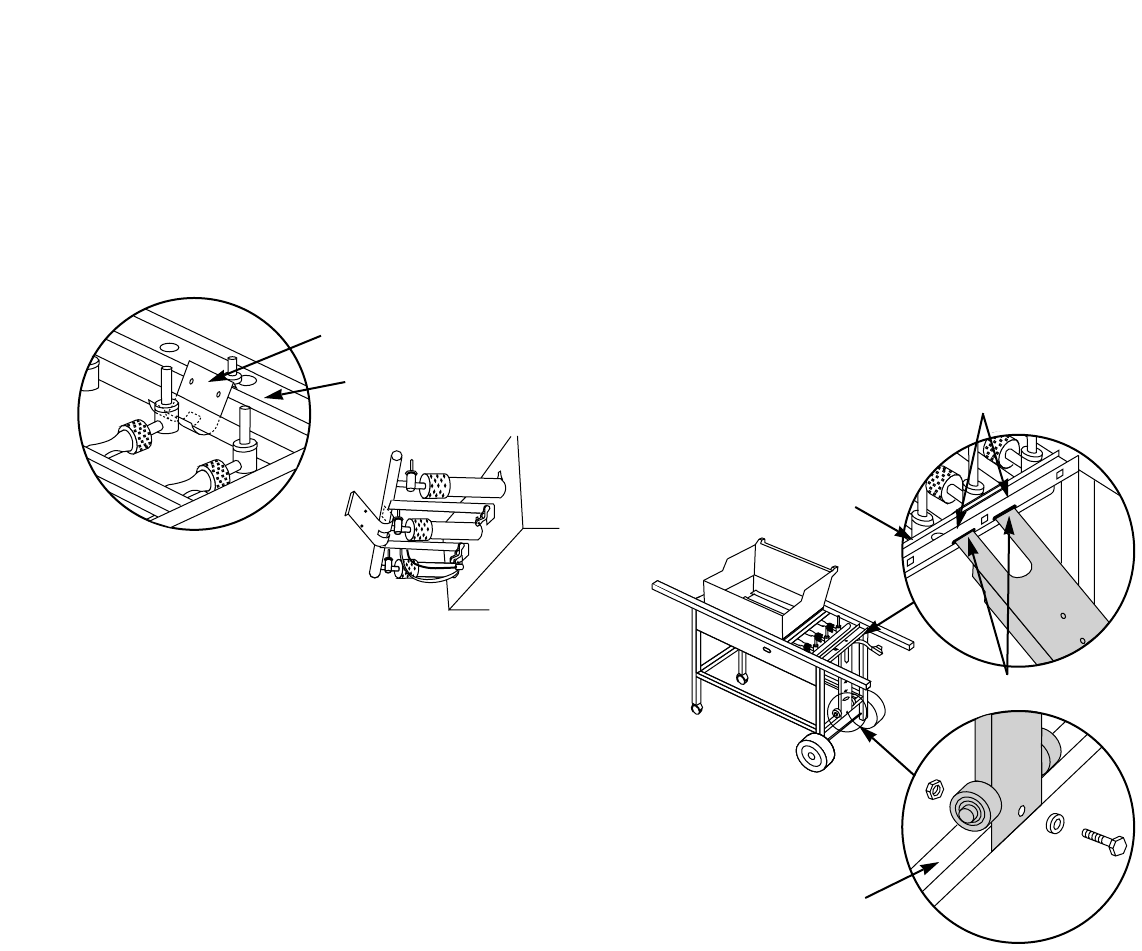

Figure 10
(a)
(b)
Tabs on tank panel
Slot in frame brace
Frame brace
Cross brace
Figure 9
Frame brace
Manifold bracket
Step 9
Install tank panel assembly
You will need: tank panel assembly, 1 1/4 inch bolt,
1/4-20 hex nut, 1/4 inch nylon washer and a 7/16 inch
wrench.
Insert the tank panel tabs into the slots in the frame brace.
Slide up until the notch at the bottom of the tank panel fits
over the cross brace. Figure 10 (a).
Add the washer to the bolt. Put the bolt through panel and
frame brace, add hex nut and tighten with the 7/16 inch
wrench. Figure 10 (b).
Step 8
Install manifold bracket
You will need: manifold bracket
Hook the bracket onto the manifold at the center burner
valve. Figure 9. Place your hand underneath the bracket.
Lift the bracket, manifold and cooking box slightly as a unit
and hook onto the frame brace.
