User Manual

12
Burner tubes
Figure 6
Frame brace
Guide screw
Figure 8
(a)
(b)
(c)
Wing nuts
(a)
(b)
Spacer bracket
Keps nut
Tab
Frame
cross piece
Nylon washer
Bolt

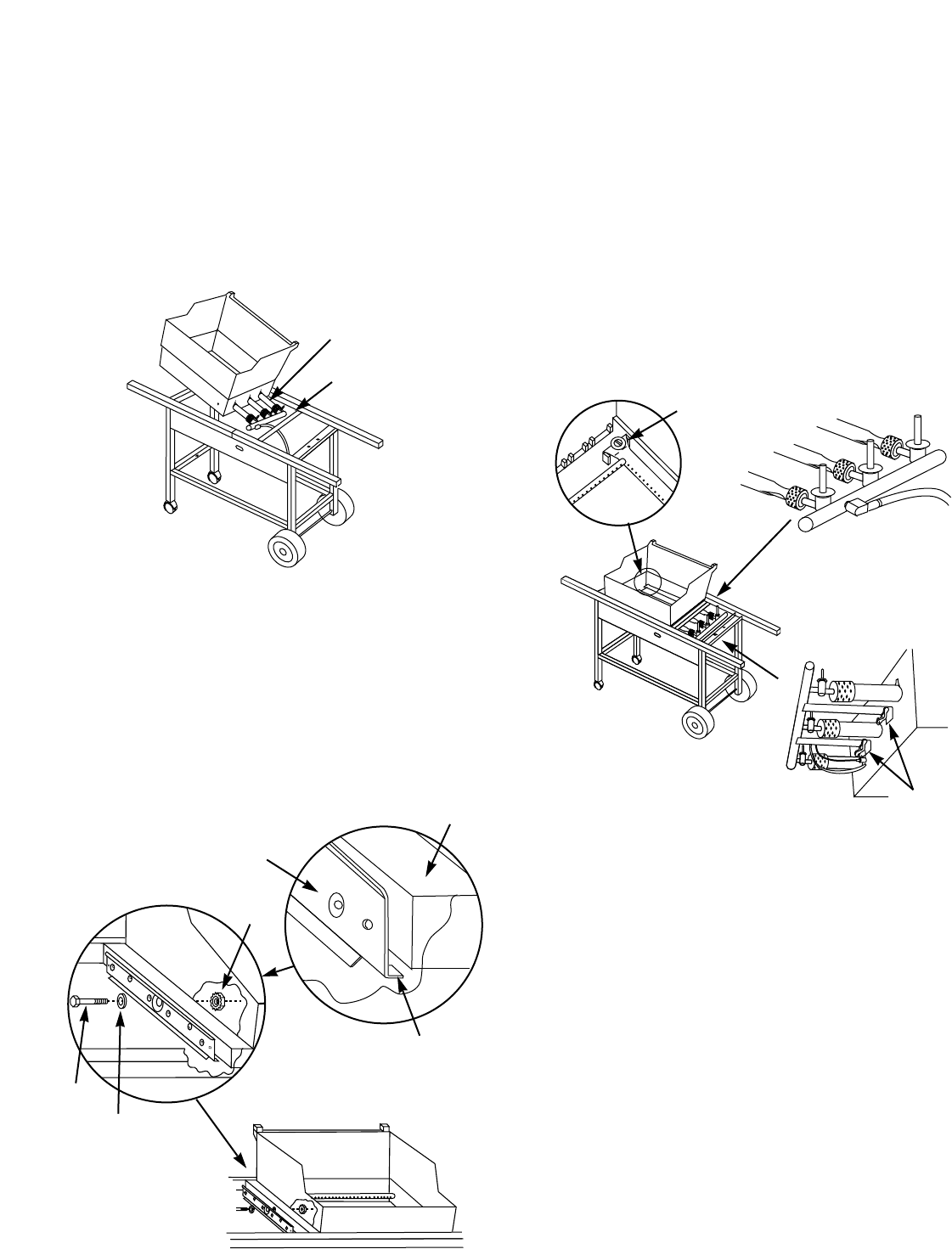

Slide the cooking box to the left within the frame. Put the
washer on the bolt. Take the spacer bracket and hold it up
to the frame making sure both tabs fit underneath the
frame cross piece. Figure 7 (a). Insert the bolt through the
center hole in the spacer bracket, frame and cooking box
with the head of the bolt outside the spacer bracket.
Figure 7 (b). Add keps nut. Figure 7. Tighten by holding
the bolt with pliers while you tighten the nut with a wrench.
Figure 7
Step 7
Add cooking box
You will need: frame assembly, cooking box assembly,
1/4-20 x 2 inch bolt, 1/4 inch nylon washer, 1/4-20 keps
nut, pliers and a 7/16 inch wrench.
Turn frame assembly right side up.
Uncoil the hose.
Set the cooking box into the frame so the burner tubes are
under the frame brace. Figure 6.
Your Weber Gas Barbecue burner assembly has been
factory assembled, pressure and flame tested. As a safety
precaution we recommend you check the burner alignment:
a) Do the valves fit into the ends of the burners?
Figure 8 (a).
b) Are the ends of the burners under the washers at the
left rear and left front of the cooking box? The screws
are only guides. Do not tighten. Figure 8 (b).
c) Are the wing nuts under the burner assembly hand
tight? Do not tighten with pliers. Figure 8 (c).
If you answered YES to a, b and c, the burners are
correctly aligned. If you answered NO, the burners are
misaligned. Contact Weber-Stephen Customer Service.
Do not use your barbecue.
