Step 2
Assemble wheels
You will need: axle, two wheel hubcaps, two wheels,
wheel frame, hammer and a block of wood.
Place one end of the axle on the block of wood (or other
protected surface). Tap on one hubcap.
Put one wheel on the axle, WEBER side toward the
hubcap. Slide the axle through the frame. Add the other

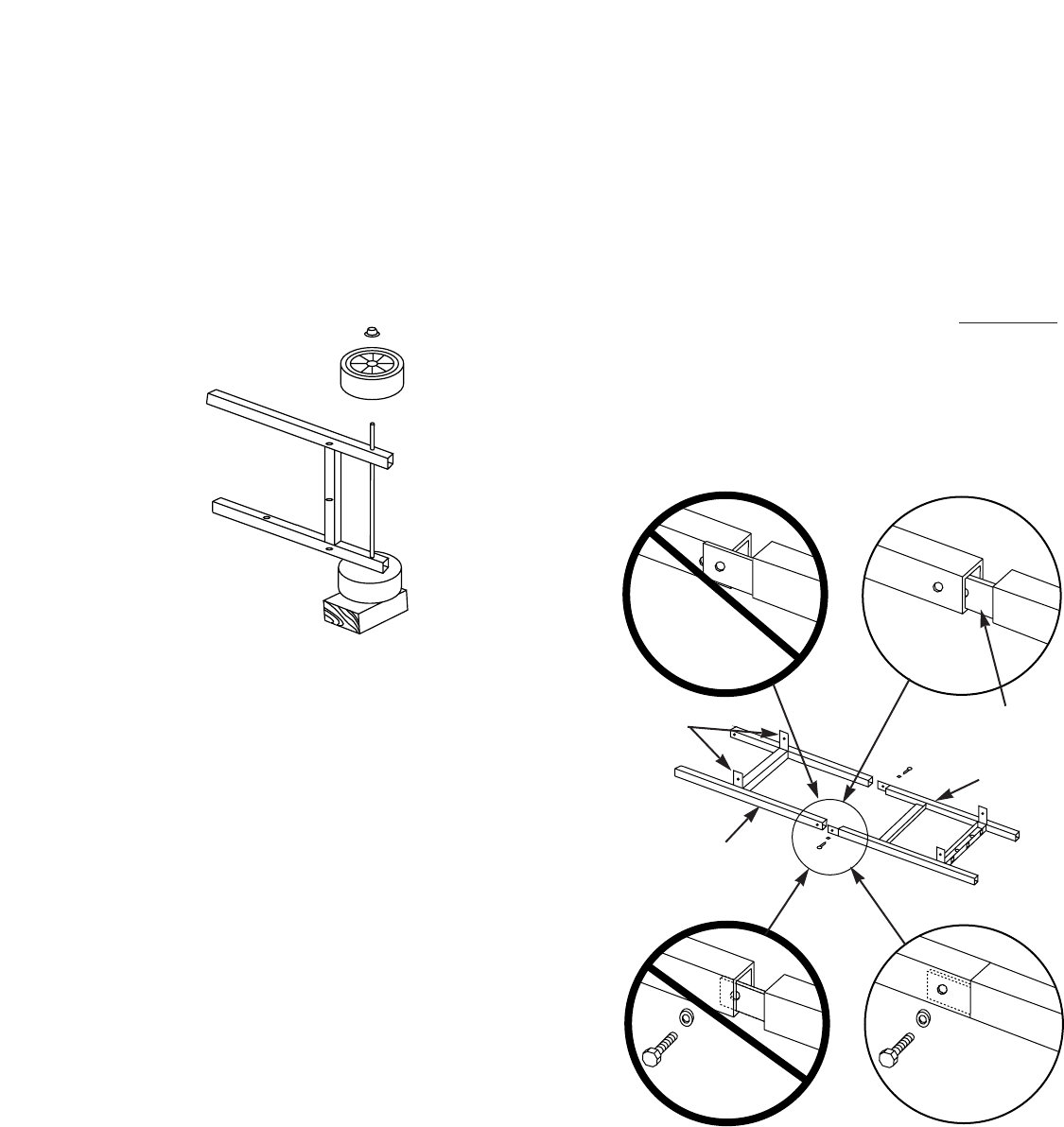

wheel, WEBER side out. Tap on the hubcap. Figure 1.
Step 3
Assemble frame
You will need: left frame, right frame, two nylon washers,
two 1/4-20 x 1/2 inch bolts and a 7/16 inch wrench.
Note - Work on carpeted area (on grass, or on one of the
boxes) to protect the finish during frame assembly.
Put the frame pieces so the leg tabs are up. Put the right
frame to your right and left frame to your left. Figure 2.
Slip the two frame halves together with the tabs inside,
until the tabs of the right frame are inside the left frame
and the holes align. Figure 2 (a).
Slip washers over bolts; insert and tighten bolts. (If you try
to insert a bolt and there are no holes, you have the left
frame turned the wrong way. Turn the left frame around.)
Figure 2 (b).
