User guide

MF004

Prepare the plastic rivet for installation by removing

the pin from the base. Insert the base fully into the

top hole of the MudFlap and through the existing hole

in the vehicle. Insert the pin into the base and press

firmly to secure the rivet.

Tighten the hex-head screw that was originally

removed in step 3 and then started in step 6.

Take care not to overtighten the screw.

Begin passenger side installation by

parking the vehicle on a level surface with

the wheels turned fully to the right.

Repeat steps 3-9.

Congratulations!

Your new WeatherTech

No-Drill MudFlaps

have been installed!

Your WeatherTech

No-Drill MudFlap carries a

Lifetime Warranty against defects in materials and

workmanship when installed correctly.

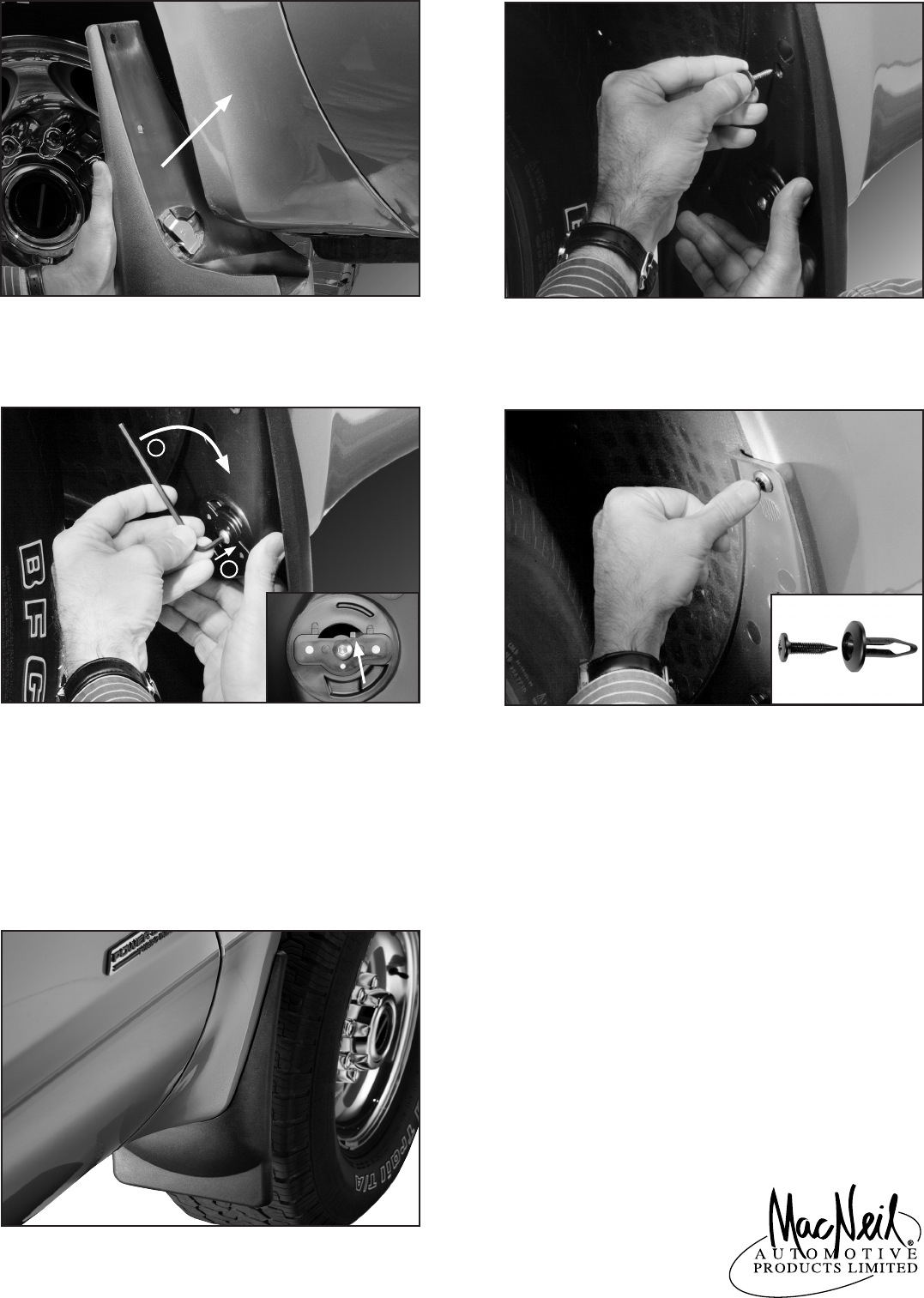

Position the smooth surfaced portion of the MudFlap

so that it contours firmly against the fender as shown.

IMPORTANT - Ensure that the QuickTurn

™

fastener

remains in the fully unlocked position during this step.

Press the MudFlap against the fender for a tight fit.

Insert and snug the hex-head screw removed in step 3.

IMPORTANT - Do not fully tighten at this time.

First ensure that the QuickTurn

™

fastener is positioned

properly by pressing in the direction indicated by

arrow 1. Then, hand tighten the QuickTurn

™

fastener

(arrow 2). Verify that the QuickTurn

™

fastener is in the

fully locked position.

Questions? Call customer service @ 630.769.1500

Monday thru Friday, 9 a.m. to 5 p.m. Central Time.

Pin Base

Locked Position
