92 CHAPTER 9 VERIFICATION
undo your last edit, edit thresholds and pause/play trac (see Figure 9.6). Click the but-
ton at the right side of the menu bar to see a window with menu descriptions.

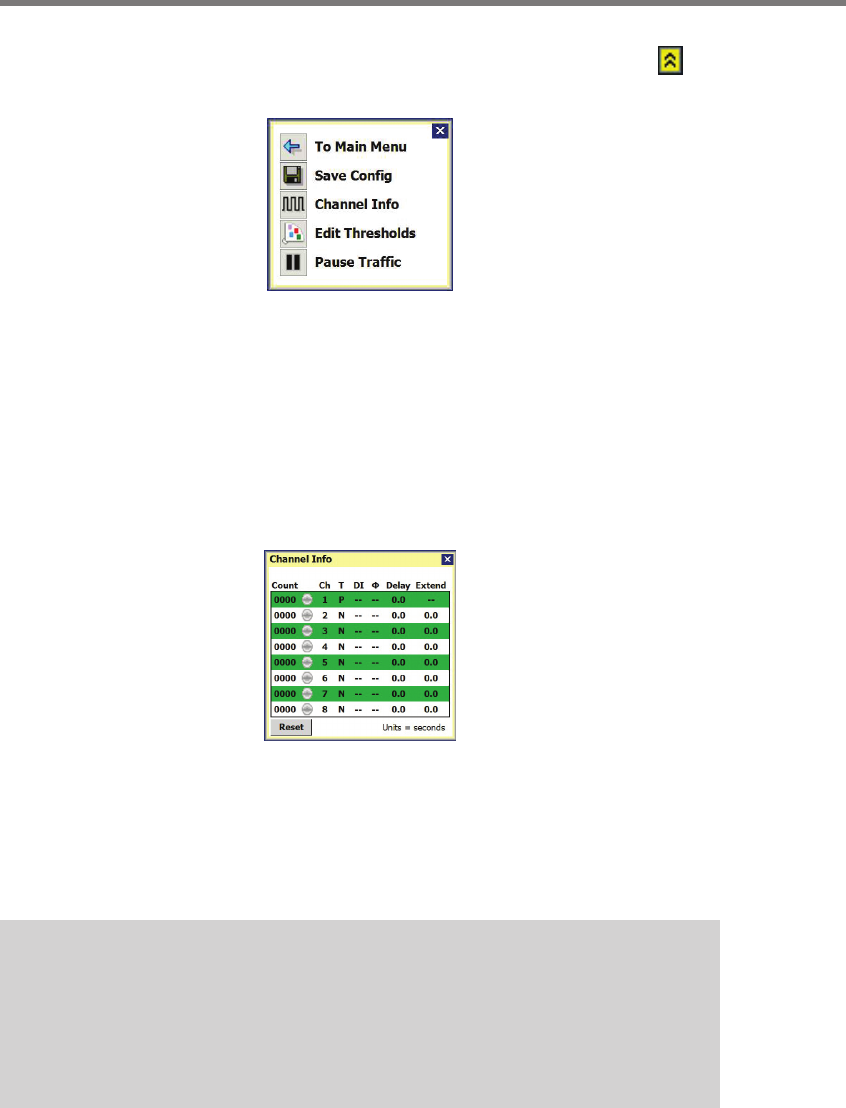

Figure 9.6 – Verification View Menu Bar
e Verication menu bar contains the following options:
To Main Menu – Returns you to the main menu.
Save Config – Saves the zones and channel mapping to the sensor.
Channel Info – is screen will show you presence counts and channel information in
table form (see Figure 9.7). ese counts are not saved on the sensor, but this shows
how many times the channel has been activated since you opened the Channel Info
window.
Figure 9.7 – Channel Info Screen
Edit Thresholds – Allows you to edit sensor thresholds (see Chapter 7 for more infor-
mation about editing thresholds).
Pause Trac – Suspends or resumes movement of vehicle detections on the screen.
Help – Displays a help window listing the channel type letters for reference.
Note
The SSMM interface cannot accurately show all pulsed outputs unless the pulsed
channel width is greater than 500 ms. If the SSMM software misses a counting
pulse, the counts will not be accurate. The software only reports what it receives
through its messages.
