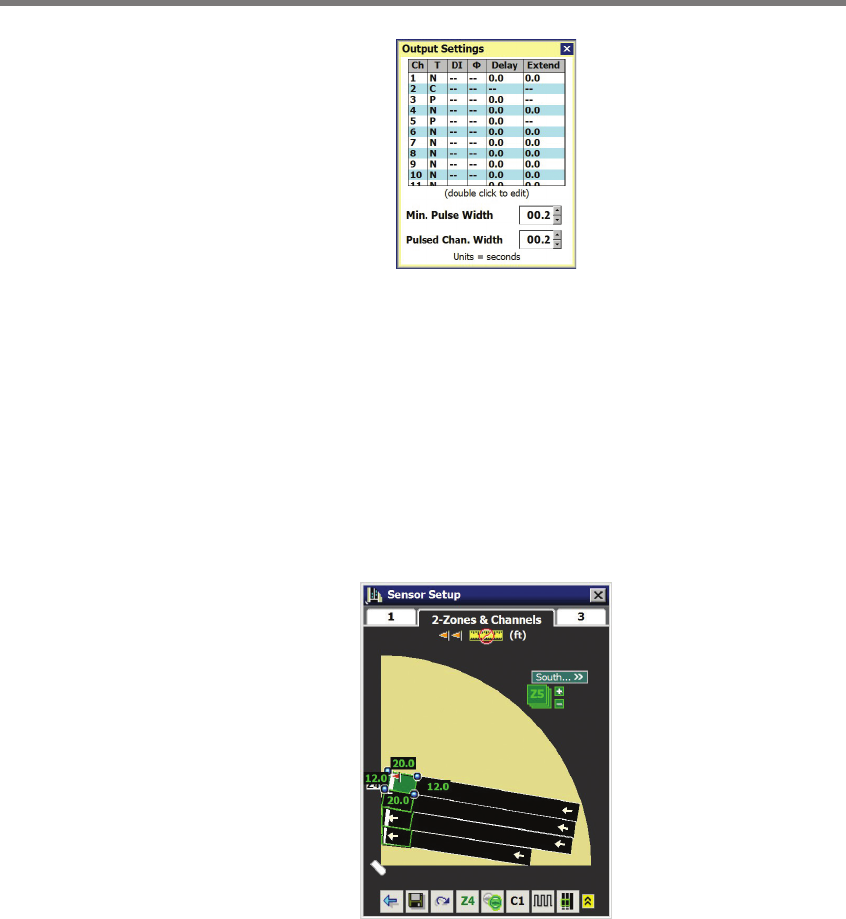

Figure 8.13 – Output Settings Pop-up
e dashes in the table mean that those particular settings are disabled due to the selected
channel type. Double click on any channel row to change the output settings for that channel.
Measuring Zones
e SSMM soware contains a feature that allows you to see how large a zone is as well as
a number of other distance measurements. Click on the ruler icon at the top of the Zones
& Channels window and then click on the zone you would like to measure and the zone’s
dimensions will appear (see Figure 8.14).
Figure 8.14 – Zone Measurements
Flags
A red and blue ag will also appear once a zone is selected. ese ags can be used to mea-
sure the distance from that zone to anywhere in the edit area. ese ags will be saved to
the sensor.
Two additional ags are also available near the ruler icon. ese ags can be dragged any-
