60 CHAPTER 5  COMMUNICATION

sion Control screen may appear asking you to install rmware upgrades (see Figure 5.13).

If you think you have reached this screen in error, clicking the Recheck button will have the

soware retry and ensure that there has not been a communication issue. Clicking the De-

tails button will display the current sensor and soware information. Click the UPLOAD

FIRMWARE button to upgrade the soware.

Checking the Upload to all sensors checkbox will broadcast the upgrade to all the sensors

on the control bridge. Check the Disable fast pacing checkbox if you are connected using

Bluetooth or other devices with a slow connection speed (see Figure 5.12).

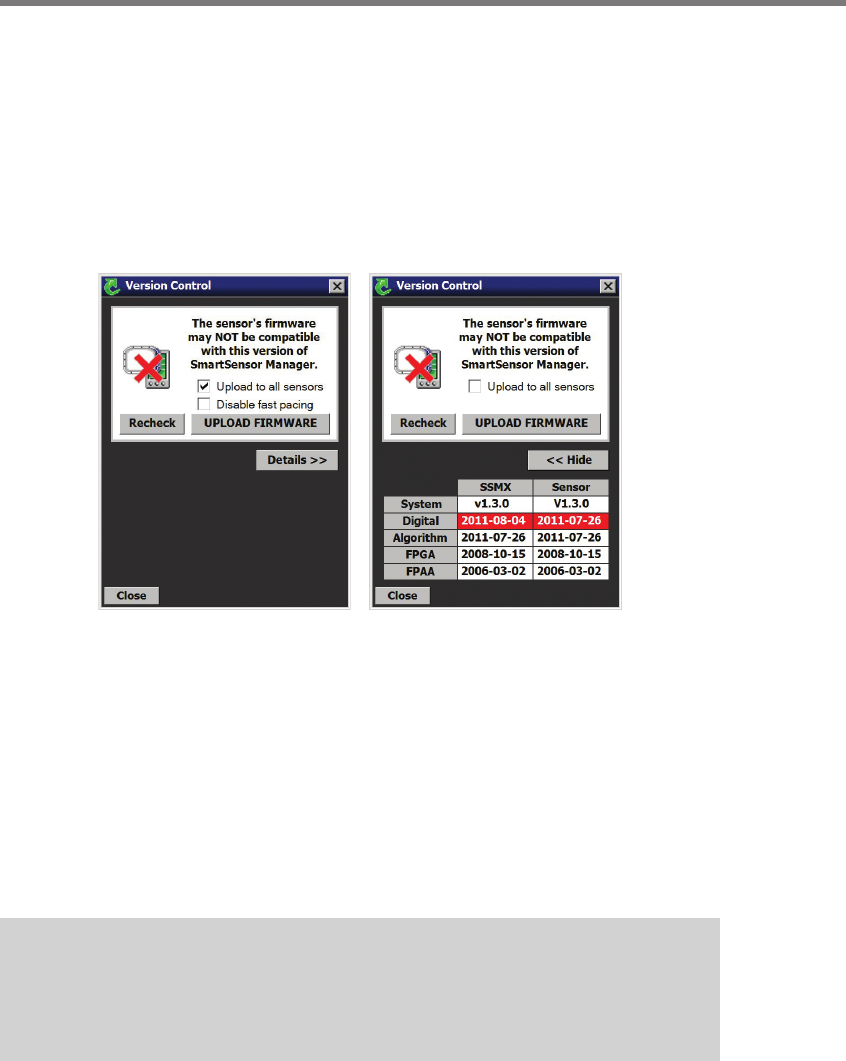

Figure 5.12 – Sensor’s Embedded Software Upgrade (left) and Details Table (right)

Click the Details button to view the rmware versions of both the SSMM soware and the

SmartSensor Matrix.

Once the Version Control screen appears, you can do one of the following:

 Upgrade the sensor’s embedded soware by clicking the UPLOAD FIRMWARE but-

ton.

 Click the Close button and continue the conguration process.

 Find the version of SSMM soware that is compatible with the sensor’s embedded

soware.

Note

Clicking the Close button and continuing conﬁguration without upgrading may cause

problems with functionality.

If any row is highlighted in red, the rmware upgrade may need to be installed. Compare

the sensor number with the SSMM number in the Digital row of the details table. If the
