Appendix D – Click 600 Installation
e Click 600 cabinet interface device is a single, compact module that performs all the
functions of the preassembled backplates: power conversion, surge protection, and sending
detection data to the appropriate contact closure devices.

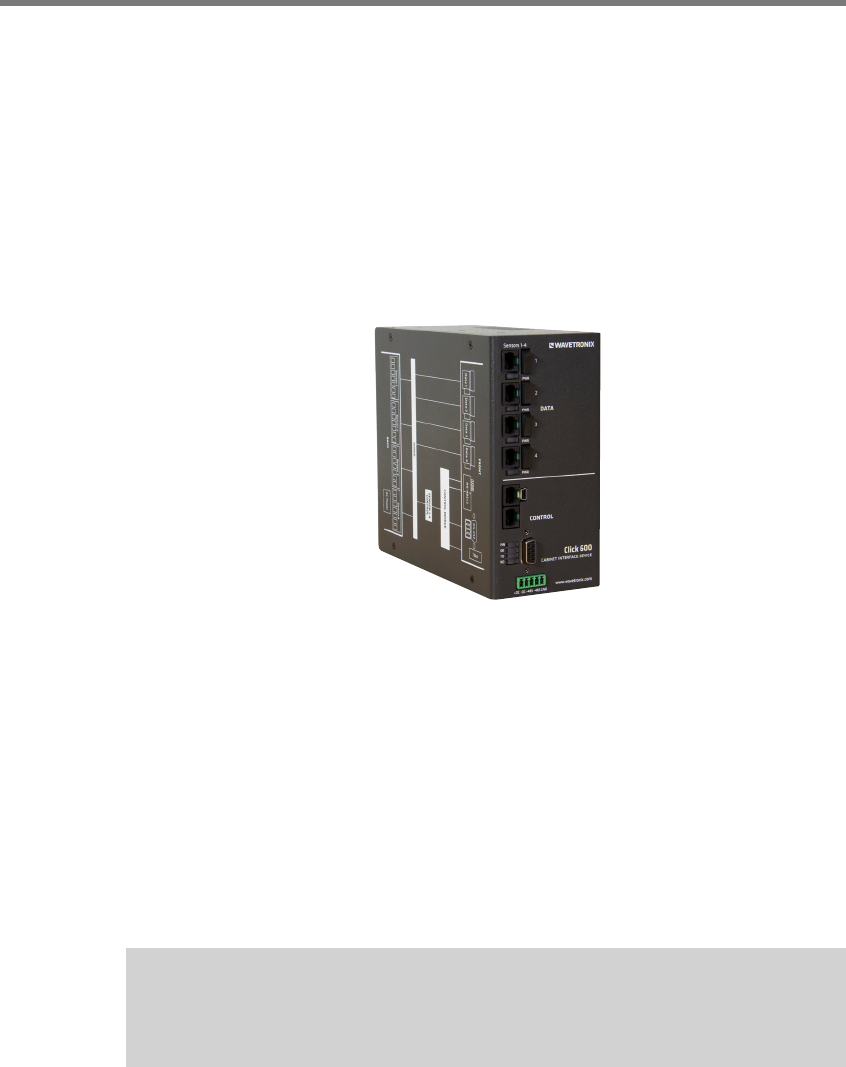

Figure D.1 – Click 600
e Click 600 is a shelf-mount device, meaning it’s meant to be set on a shelf in the trac
cabinet. However, if you’d prefer to ax it to the wall of a NEMA-style trac cabinet, attach
the included U-channel mounting brackets to the device and use them to mount it on the
cabinet wall.
Connecting AC Power
Included with the Click 600 is an AC power cord. Connect it from your AC power source
to the IEC connector on the back of the device. e Click 600 will take that AC power and
convert it to DC, then send that power to any connected sensors (which run on 10–28
VDC).
Warning
Make sure power to AC mains is disconnected while wiring the AC input.
Next to the IEC connector is a switch that turns power on and o for the whole device. Next
to each sensor connector is a switch that turns power on and o for the associated sensor.
