User's Manual

USER MANUAL FOR WAVETREND TAGS
2 TECHNICAL INFORMATION

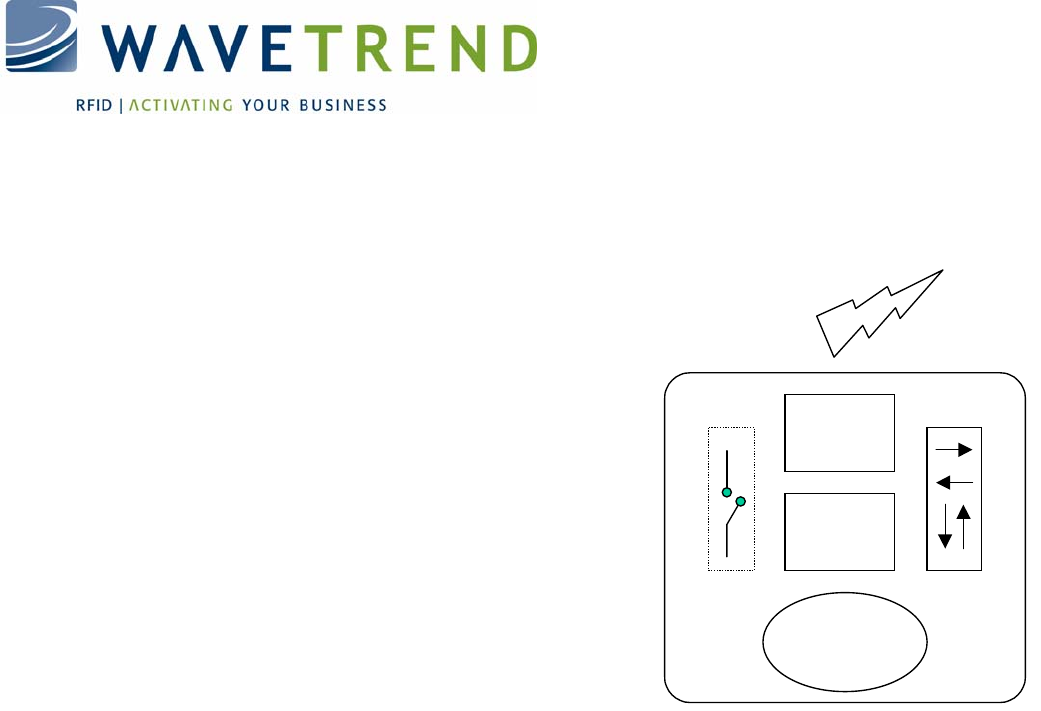

All tags consist of the same functional blocks. This functionality is illustrated in the figure below.
• Battery: Lithium Battery provides life-span of up to 10
years depending on the battery used and the way the tag
is used and configured.
Micro
Controller
Radio
Frequency
Generator
Battery
R
F
Anti-Tamper Movement
• Micro-Controller: Handles communications and sensors.
• Radio Frequency Generator: Modulates digital data for
transmission over free air.
• Anti-Tamper: Magnetic sensor used for tamper detection,
auto-wake functionality and to configure the tag with
unique properties.
• Movement Sensor: Detect and report movement (Only
MS options).
• RF: Modulated Radio signal transports data over free air
via the antenna.
