USER MANUAL FOR WAVETREND TAGS
2.3 TAG MOUNTING METHODS

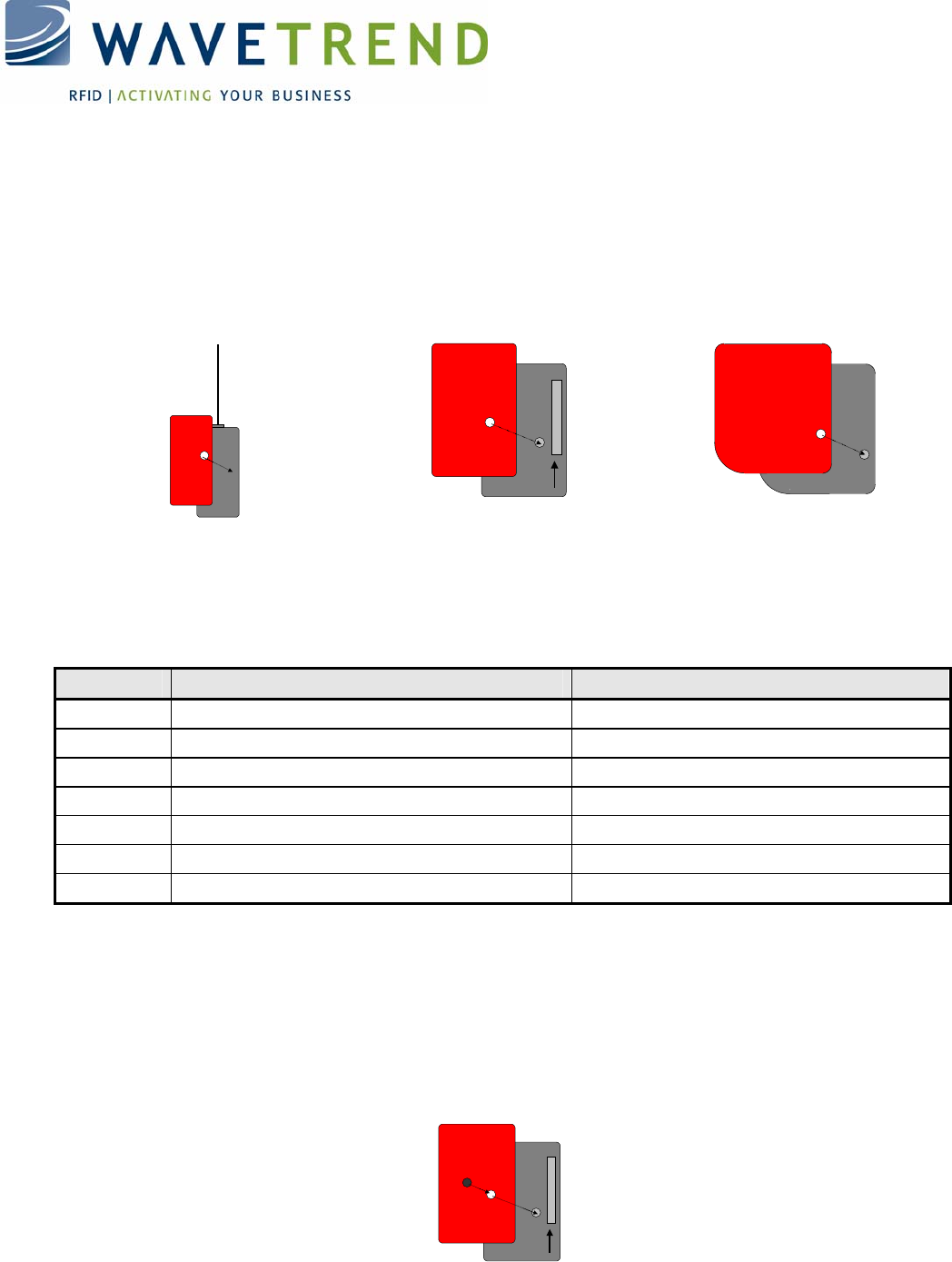

Very High Bondage (VHB) Tape can be used to affix Wavetrend Tags to various objects and appliances. The
pictures below describe the method in which the tape is affixed to the tags. Note that the magnet for anti-
tamper applications should be positioned as indicated. (Bottom view of tags)
L-TG100 Bottom View
L-TG501 Bottom View
L-TG 800 CE
L-TG800 Bottom View
L&W-TG100 L&W-TG501 L&W-TG800
2.3.1 TAG ACCESSORIES
Code Description Note
L-TA100 L&W-TG501 Card Holder for personnel tagging Plastic holder and clip
L-TA200 Double sided VHB fixing tape for L&W-TG501 VHB Tape cut to size (10 per pack)
L-TA300 Anti-tamper kit for L&W-TG501 VHB Tape cut to size and magnet (10 per pack)
L-TA400 Double sided VHB fixing tape for L&W-TG100 VHB Tape cut to size (10 per pack)
L-TA500 Anti-tamper kit for L&W-TG100 VHB Tape cut to size and magnet (10 per pack)
L-TA600 Double sided VHB fixing tape for L&W-TG800 VHB Tape cut to size (10 per pack)
L-TA700 Anti-tamper kit for L&W-TG800 VHB Tape cut to size and magnet (10 per pack)
2.4 ANTI-TAMPER
All tags have a magnetic sensor that can be used to detect the tampering of tags that have been affixed us-
ing VHB tape. The figure below illustrates how the magnet is placed in the VHB tape. For certain applications
it is suggested that the magnet is affixed to the object with glue prior to mounting the tag.
L-TG501 Bottom View
MAGNET
