Operating instructions
22
3/8
” (568mm)
electrical collar
15
1/4
”
(388mm)
8”
(203mm)
8
1/8
” (206mm)
16” (406mm)
anchor point
anchor point*
stud stud
anchor point*
anchor point
electrical box
†
- cont’d

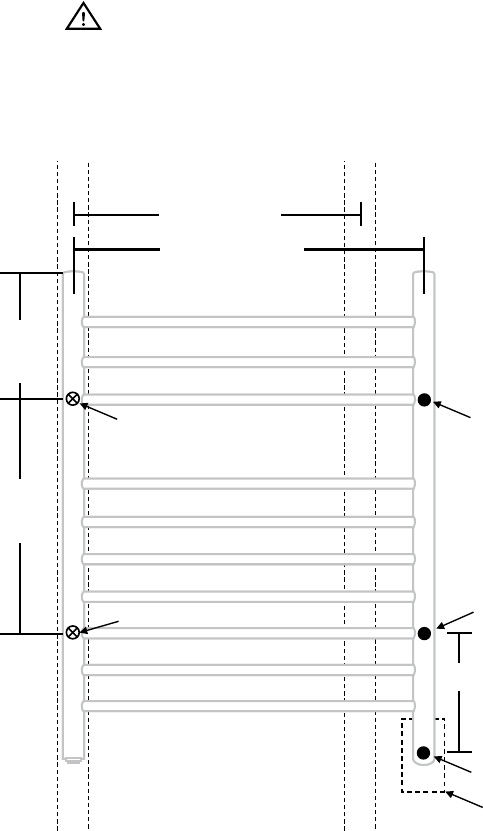

Note: Dimensions shown are distances between the center of anchor
points. This example shows 16” on center construction. Your situation
may vary depending on your stud spacing.
WARNING: Locations of electrical box and anchor points may vary.
Measure all dimensions prior to rough-in and installation.
†
Note: Hardwired model only Electrical box must be securely attached to a stud.
Plug-in model only must be installed less than 6’ (183cm) from properly
grounded outlet. Do NOT use an extension cord.
* Note: Anchor points must be attached to a stud.
3
