Product Selection Criteria
Select 120 Vac or 240 Vac to match your power supply.
240 Vac is generally more economical for areas larger
than 70 ft
2
.
Use 3" spacing for standard applications.
Use alternating spacing over unheated areas or
on concrete slabs.
The cable is embedded directly into thin set or cement based
self-leveling mortar under:
– Ceramic Tile
– Marble Tile
– Slate Tile
– Wood Laminates
Controls for Warm Tiles
FGS Programmable Thermostat
FG Programmable Thermostat
Accessories for Warm Tiles
RK-1 120 Vac Relay Kit
RK-2 240 Vac Relay Kit

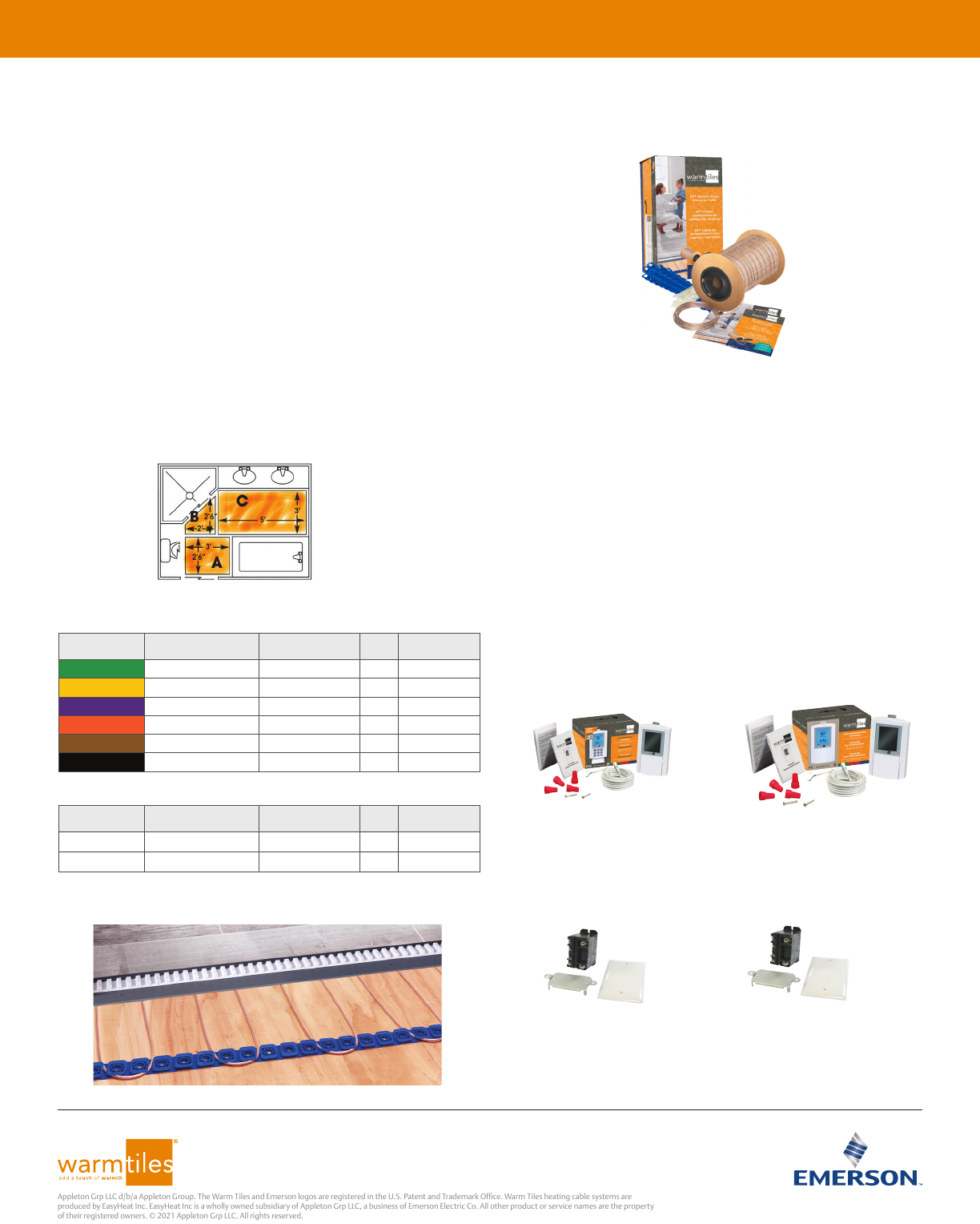

WARM TILES ELECTRIC WARMING SYSTEMS
Cable System Advantages
Warm Tiles cable kit (DFT) supplies plenty of warmth
and provide ultimate freedom in warming oors regardless
of layout.
Two different spacing options enable these extremely exible
cables to be installed virtually anywhere.
Easily works around xtures and into odd shaped nooks.
Features and Benefits
Warm Tiles cable kits (DFT) are quickly and easily installed in
both new construction and remodeling projects with included
strapping kits.
Installing a oor warming system will provide a drier safer oor.
Available in 120 and 240 Vac with standard 10 foot cold leads.
Warm Tiles cables are warranted for 15 years against defects in
materials and workmanship.
Installation Overview
1. Calculate the area to be heated; the walkable area of the room.
2. Select the kit for that area from product selection chart.
3. Install the Warm Tiles system.
OUR WARMTH MAKES ALL THE DIFFERENCE.
Warm Tiles 120 Vac Cable Kits
Model Number
Standard Heating
Area ft
2
(m
2
)
Alternating Heating
Area ft
2
(m
2
) Amps SKU Number
DFT 1022 GREEN 19-26 (1.77-2.42) 14-19 (1.30-1.77) 2.2 335-2577
DFT 1030 YELLOW 27-34 (2.51-3.16) 20-26 (1.86-2.42) 3.0 335-2580
DFT 1039 PURPLE 35-42 (3.25-3.90) 27-33 (2.51-3.07) 4.0 335-2593
DFT 1048 ORANGE 43-54 (3.99-5.02) 34-39 (3.16-3.62) 5.1 335-2603
DFT 1059 BROWN 55-65 (5.11-6.04) 40-48 (3.72-4.46) 6.4 621-0200
DFT 1108 BLACK 103-113 (9.57-10.50) 77-85 (7.15-7.90) 10.7 621-0201
Warm Tiles 240 Vac Cable Kits
Model Number
Standard Heating
Area ft
2
(m
2
)
Alternating Heating
Area ft
2
(m
2
) Amps SKU Number
DFT2195 185-204 (17.19-18.95) 139-153 (12.91-14.21) 9.6 621-0202
DFT2215 205-225 (19.5-20.90) 154-169 (14.31-15.70) 10.7 621-0203
Warm Tiles Cable Kit (DFT)
SKU Number: 335-2577
RK-1 Relay Kit
SKU Number: 621-0097
RK-2 Relay Kit
SKU Number: 621-0098
FGS Programmable Thermostat
SKU Number: 335-2571
FG Non-Programmable Thermostat:
SKU Number: 335-2569
