Owner's Manual

6007 South 29th Street
Fort Smith, Arkansas 72908 USA
Phone: [phone]
www.UmarexUSA.com
HOW TO AIM AND ADJUST YOUR
LASER SIGHT

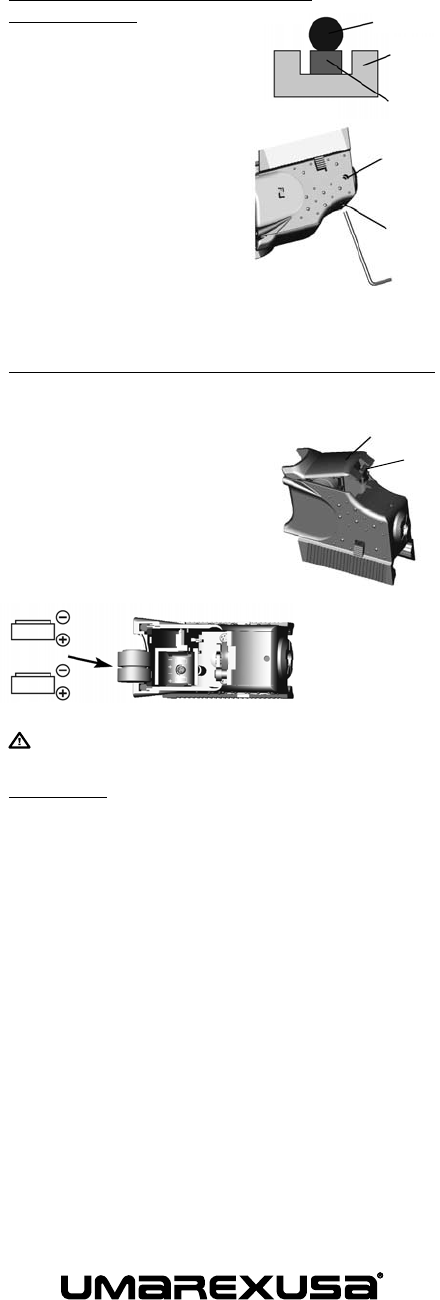

Use the front and rear sight to aim the
airgun. The laser dot should appear to
sit on top of the front sight (See Fig. D).
If this is not the case, make the following
adjustments by using a hex key:
Windage adjustment
If your airgun shoots too far right,
turn the windage adjustment screw
counter-clockwise. If your airgun
shoots too far left, turn the windage
adjustment screw clockwise (See
Fig. E).
Elevation adjustment
If your airgun shoots too low, turn
the elevation adjustment screw
counter-clockwise. If your airgun shoots too high, turn the elevation
adjustment screw clockwise (See Fig. E).
HOW TO INSTALL OR CHANGE THE BATTERIES
This laser sight utilizes two(2) round cell silver oxide batteries—
SR44 or SR44W. Two batteries were included in the original laser
sight packaging.
1. To access battery compartment,
press in latch and lift up on
compartment door and slide to
front of laser (See Fig. F).
2. Remove old batteries if present
and insert new batteries keeping
in mind their polarities (See Fig. G).
3. Close battery compartment by
replacing compartment door.
CAUTION: Buyer and user have the duty to obey all laws
governing the use and ownership of airguns and laser sights.
Technical Data
Laser Class III. Maximum output < 5mW
Wavelength 635-655 nm
Batteries Two(2) round cell silver oxide SR44 or SR44W
Ø11.6 x 5.4 / 1.55v
Mounting Snap connection on Weaver rail
Special Feature Two(2) LED indicators on the rear side
Weight / Size 35 g / 50 x 44 x 28 mm
Laser dot
Rear sight
blade
Front sight
Windage
adjustment
screw
Elevation
adjustment
screw
Fig. E
Fig. D
Fig. F
Battery compartment
Latch
Fig. G
Rev 1206
