SPRAYER CONTROLS
AIR CAP
SPRAY WIDTH LEVER
AIR CAP EARS
1
=
=
2
=
=
3
=
=
MATERIAL FLOW CONTROL
i
The material ow control will be factory-set
at its lowest setting out of the box. Adjust as
needed.
• Turn the knob out (counterclockwise) for less ow.
Generally, low material ow is needed for spraying smaller
surface areas, such as corners, lattice, or spindles.
• Turn the knob in (clockwise) for increased ow. Generally,
high material ow is needed for spraying large surface
areas, such as fences and decks.
i
For a video showing Control Spray Xtra Duty spraying tips and best practices, visit:
www.wagnerspraytech.com/controlsprayxtraduty

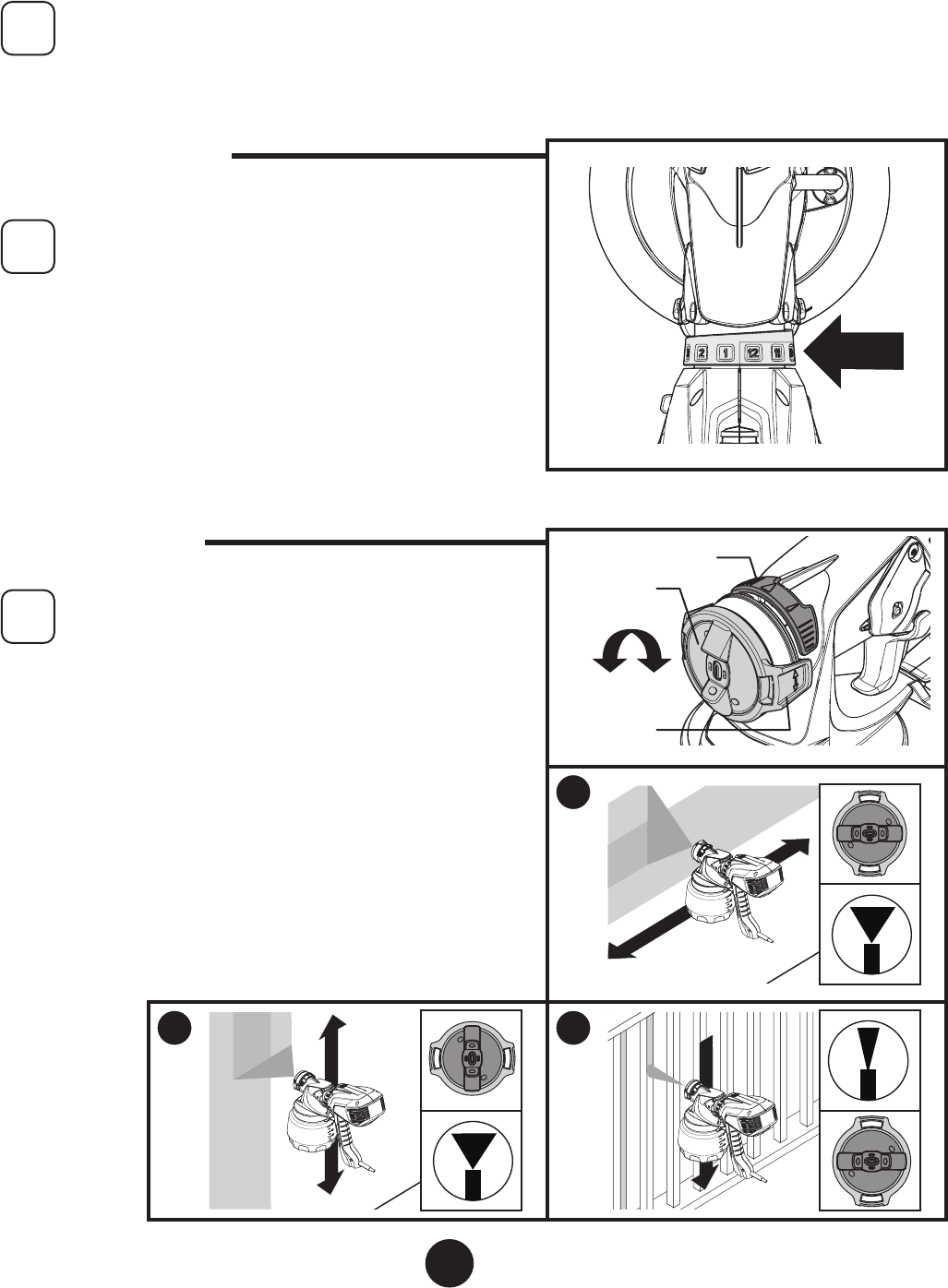

PATTERN ADJUSTMENT
i
Adjust the spray pattern by turning the air cap
ears. The air cap position will determine the
movement direction of the spray gun.
The spray width lever on the iSpray nozzle
determines the width of the spray pattern.
1. Vertical pattern:
Use side-to-side motion during spraying.
2. Horizontal pattern:
Use up and down motion during spraying.
3. Narrow pattern (set spray width lever to narrow):
Use up and down, or side to side spraying motion,
depending upon the object being sprayed.
