Note: Worn lubricant and other waste products should be disposed of

by a qualified agent, in accord with applicable laws. The oil plug gasket

should be replaced each time the lubricant is inspected or changed.

5.4 Replacement Parts

The table lists the parts that need to be replaced periodically. Replace

these using the recommended frequency as a guideline.

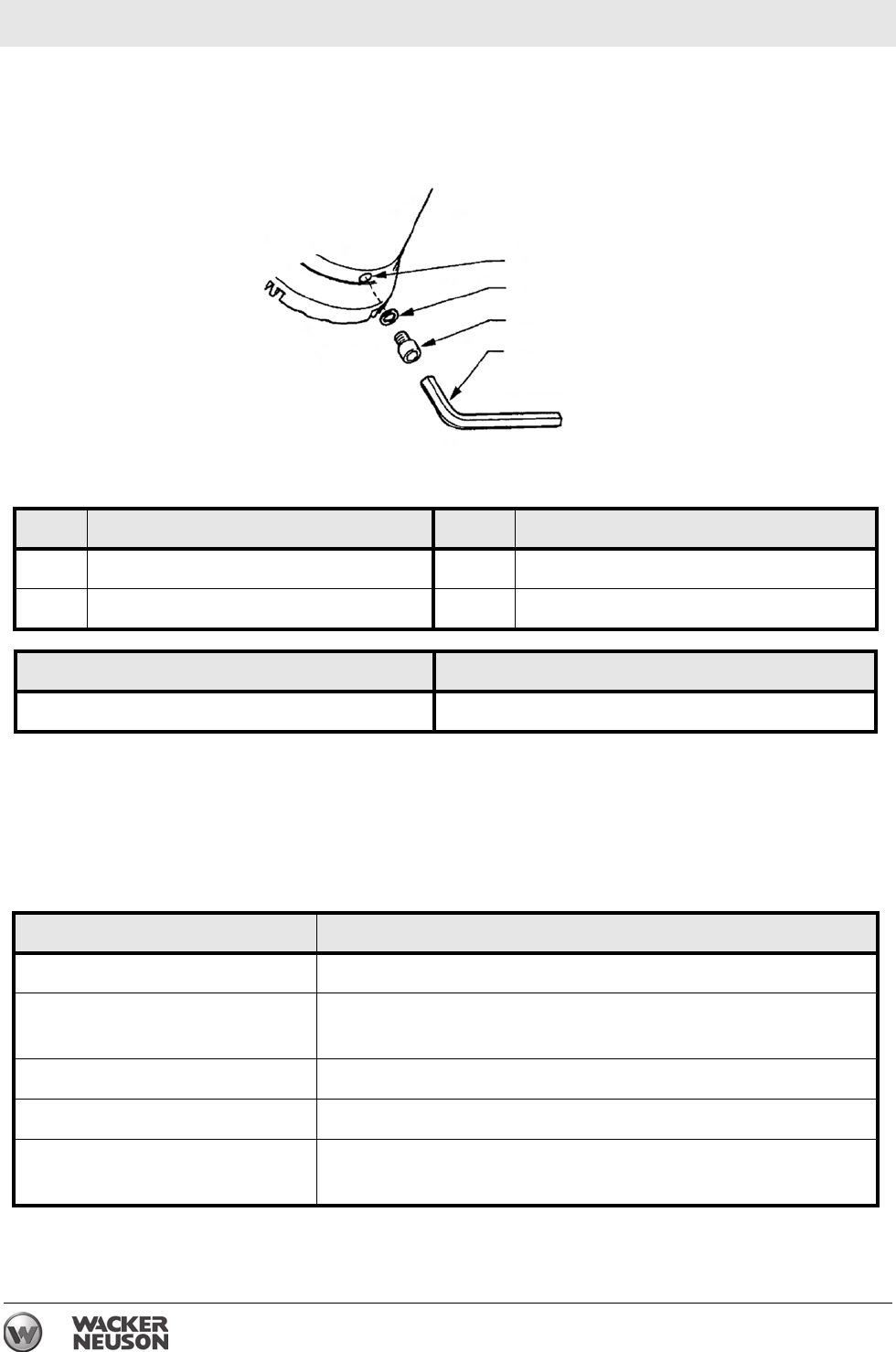

Ref. Description Ref. Description

1. Oil inlet 3. Oil plug

2. Gasket 4. Allen wrench

Pump Model Lubricant Capacity

PSG2 500 150 ml (5.1 fl. oz.)

Part Replacement Frequency

Mechanical seal When lubricant in oil compartment becomes milky.

Lubricant (SAE 10W/20W or

equivalent)

Every 2,000 hours or 12 months, whichever comes first.

Packing and O-ring Each time pump is disassembled or inspected.

Sleeve When it becomes worn.

V-ring When it becomes worn, or each time the pump is disas-

sembled or inspected.
