Mobile Generators Factory-Installed Options
wc_tx000380gb.fm 75
5.2 Fuel/Water Separator

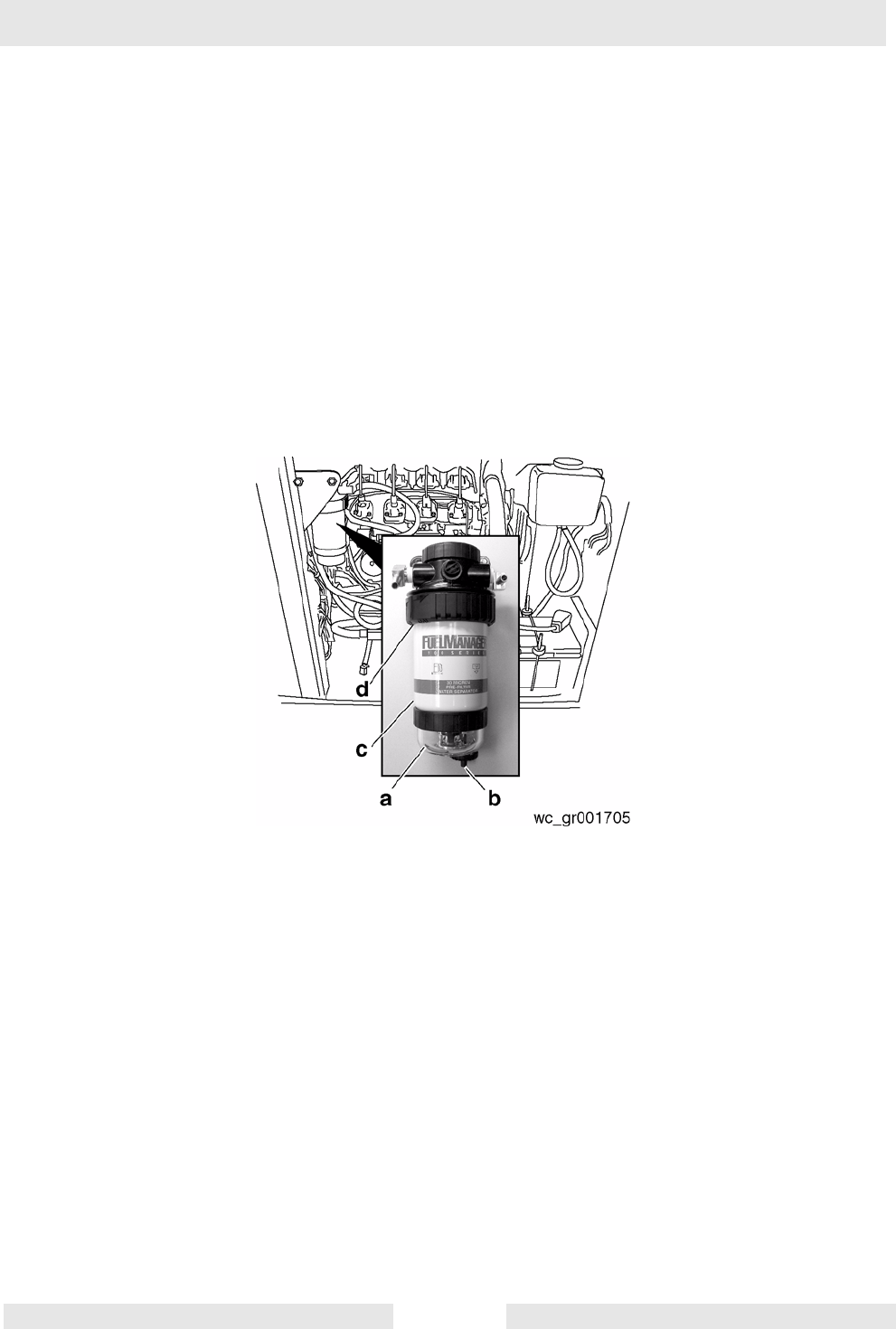

See Graphic: wc_gr001705
The fuel/water separator separates water from the fuel on models with
Isuzu engines. Empty the separator water bowl (a) as needed by
opening the water bowl drain (b). The separator element should be
changed each time the fuel filter is changed—approximately every 600
hours of operation.
To change the element:
5.2.1 Loosen the element retainer (d) and remove the retainer and element
(c) from the separator head.
5.2.2 Unscrew the water bowl from the element.
