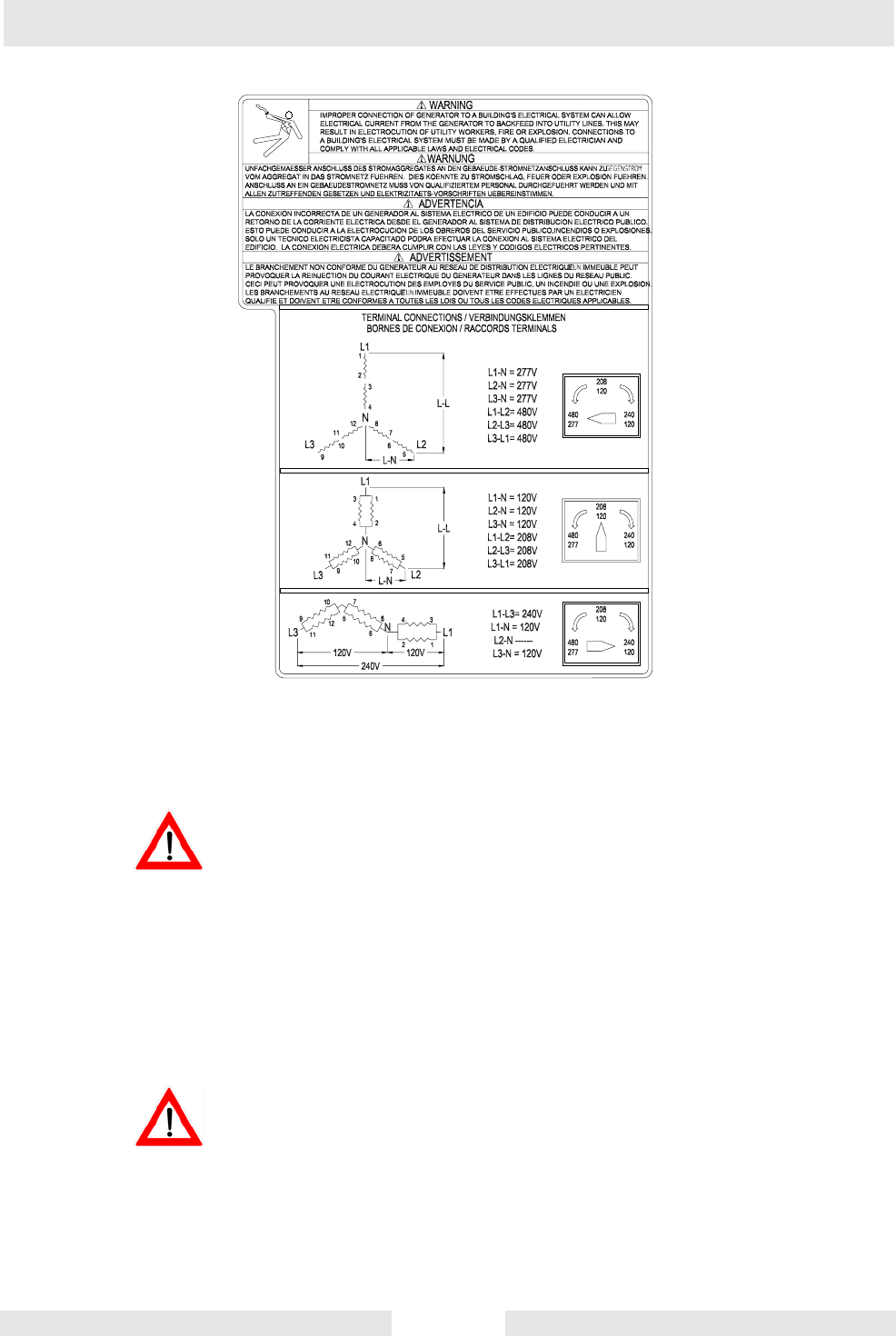

3.18 Terminal Connections
ALL CONNECTIONS TO THE TERMINALS MUST BE MADE BY A
TRAINED ELECTRICIAN.
BACKFEED FROM THE GENERATOR INTO THE UTILITY’S
DISTRIBUTION SYSTEM CAN CAUSE A SERIOUS INJURY OR
DEATH TO UTILITY WORKERS!
Improper connection of generator to a building’s electrical system can
allow electrical current from the generator to backfeed into utility lines.
This may result in electrocution of utility workers, fire or explosion.
Connections to a building’s electrical system must be made by a
qualified electrician and comply with all applicable laws and electrical
codes.
DANGER OF ELECTROCUTION! ALWAYS OPEN MAIN CIRCUIT
BREAKER AND SET ENGINE STOP SWITCH TO OFF “O”
BEFORE INSPECTING OR ATTEMPTING ANY CONNECTIONS TO
THE TERMINAL BLOCK! LETHAL VOLTAGE COULD BE
PRESENT ON THE TERMINAL LUGS!
