3.8 Emergency Stop Switch

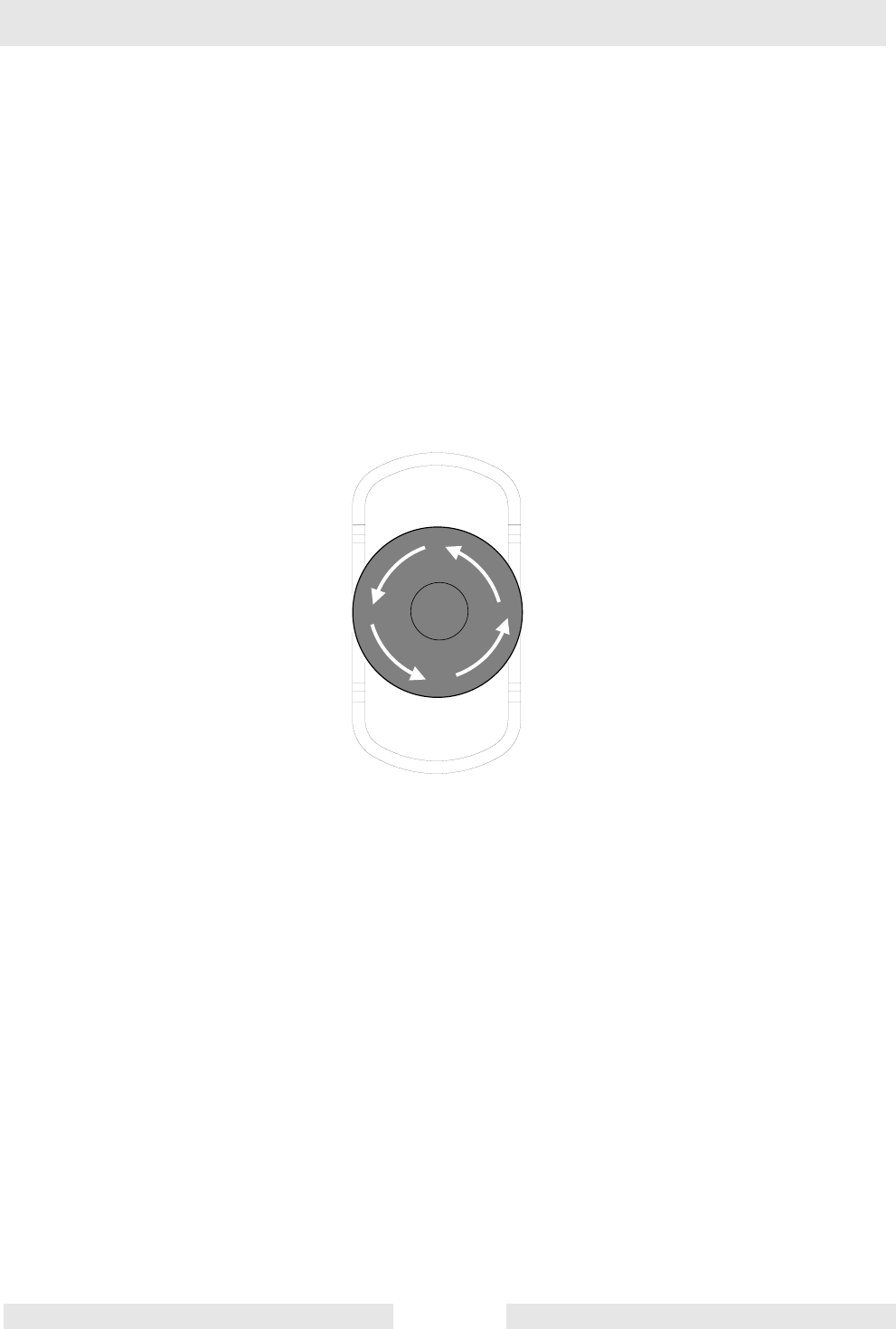

See Graphic: wc_gr001677
The emergency stop switch (p) is the red button located below the
receptacle panel and can be accessed with the panel doors closed.
Activate the emergency stop switch by pushing the red button in.
Pushing the emergency stop switch opens the main circuit breaker and
the fuel solenoid and results in the engine shutting down. The switch
will remain in until the button is rotated and it pops out.
NOTICE: PRESS THE EMERGENCY STOP BUTTON ONLY IN THE
CASE OF AN ACTUAL EMERGENCY WHERE THE GENERATOR
MUST BE STOPPED IMMEDIATELY! In all other instances, open the
main line circuit breaker and then turn the engine start switch to off “O”.
wc_gr001677
