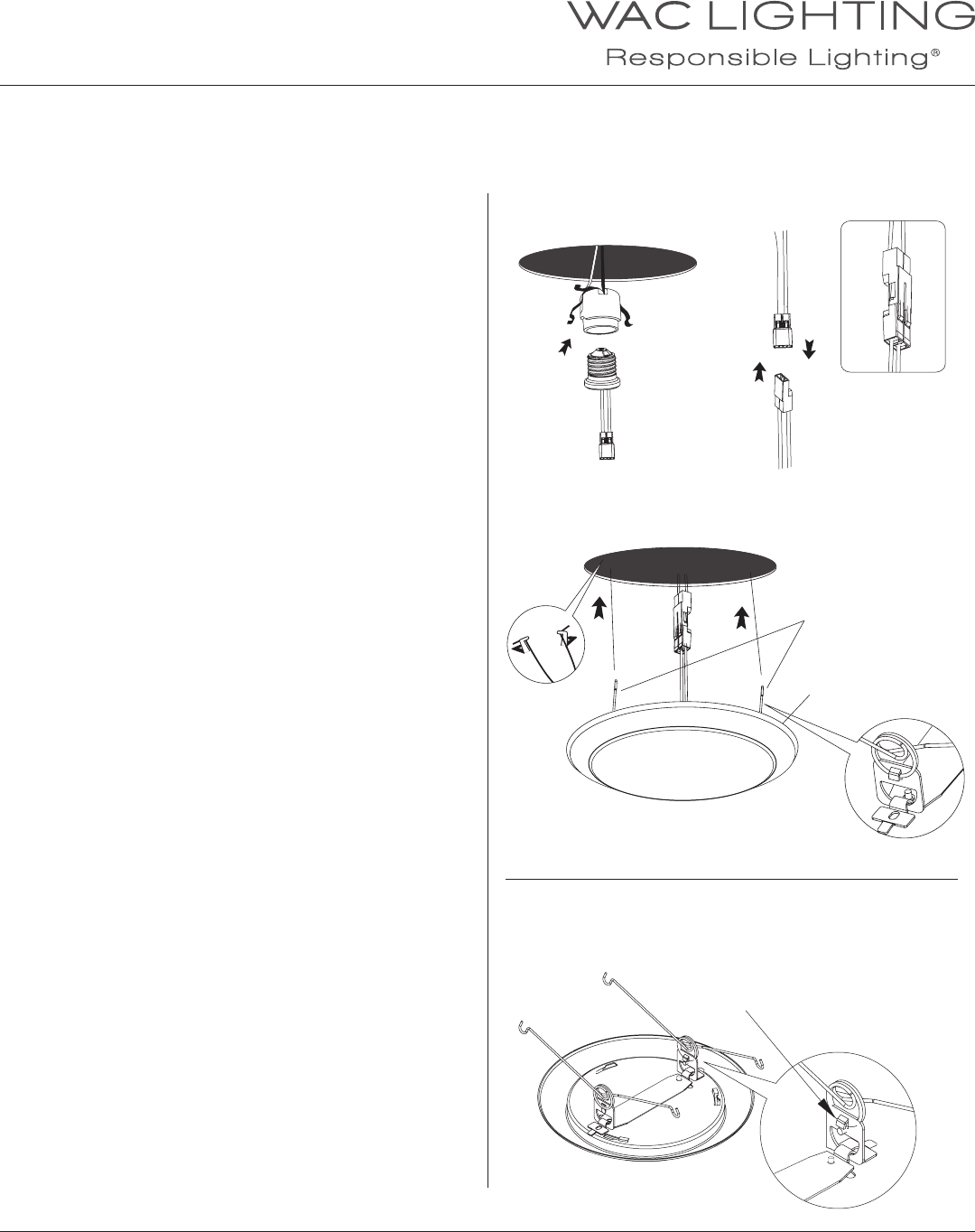

1. Screw E26 “medium screw base” socket adapter into socket
in housing. (Fig. 2)
2. Plug the female connector of the disc light onto the male
connector of the socket adapter assembly. (Fig. 3)
3. Squeeze the torsion springs together as shown and install into
torsion spring brackets inside the housing. (Fig. 4)
4. Tuck all wires into to the housing and carefully push the disc
light into housing. (Fig. 4)
LENS INSTALLATION
Twist the lens clockwise on disc light metal enclosure and lock the
lens in place.
INSTALLATION INSTRUCTION
LED DISC
FM-306
Fig. 2
Fig. 4
Caution
Make sure that tab in bracket should be positioned inward.
Fig. 3
Torsion Springs
TAB
Disc
Installation onto existing 5 inch or 6 inch recessed housings
