INSTALLATION INSTRUCTION
Class II Power Supply
EN-O24100-P-AR-T, EN-O24100-RB2-T
CAUTION – TO REDUCE RISK OF FIRE AND ELECTRICAL SHOCK
When installing or using the lighting system, basic safety precautions should always be followed including the following:
• Read all instructions.
• Do not conceal or extend exposed conductors through a building wall.
• To reduce the risk of re and burns, do not install this lighting system where the exposed bare conductors can be shorted
or contact any conductive materials.
• To reduce the risk of overheating and potential re risk, make sure all connections are tight.
• Do not install any xture assembly closer than 6 in. from any curtain, or similar combustible material.
• Turn o electrical power before modifying the light system in any way.
Max Load 96W
Min Load 1W
Input Voltage 120-240/277V AC
Input Current 1.4/0.45A
Output Voltage 24 Vdc, 4A
Ambient Temp -20°C to 50°C (-4°F to 122°F)
FEATURES:
• Electronic Short Circuit, Overload, Over Voltage, Over temperature protection with auto-reset.
• Class 2 POWER Unit ,UL listed
• Damp and wet location used.
INSTALLATION:
• The power Unit should be installed on the surface of any indoor or outdoor construction with two 5/32”-32screws.
• Power unit must be installed away from heat sources and accessible for service.
• Connect the output female connector of the power supply with the male connector of the InvisiLED outdoor tape or lead
wires, to form straight lines or turns around the installation surface.
• Next, connect input wires to branch circuit rmly by outdoor junction box(black wire connected to LIVE, white wire connect-
ed to NEUTRAL ,green wire connected to GROUND, and tie a knot in the junction box to hold the input wire) .Check out whole
system again before turn the switch on. Please contact WAC technologist if you have any unsureness.

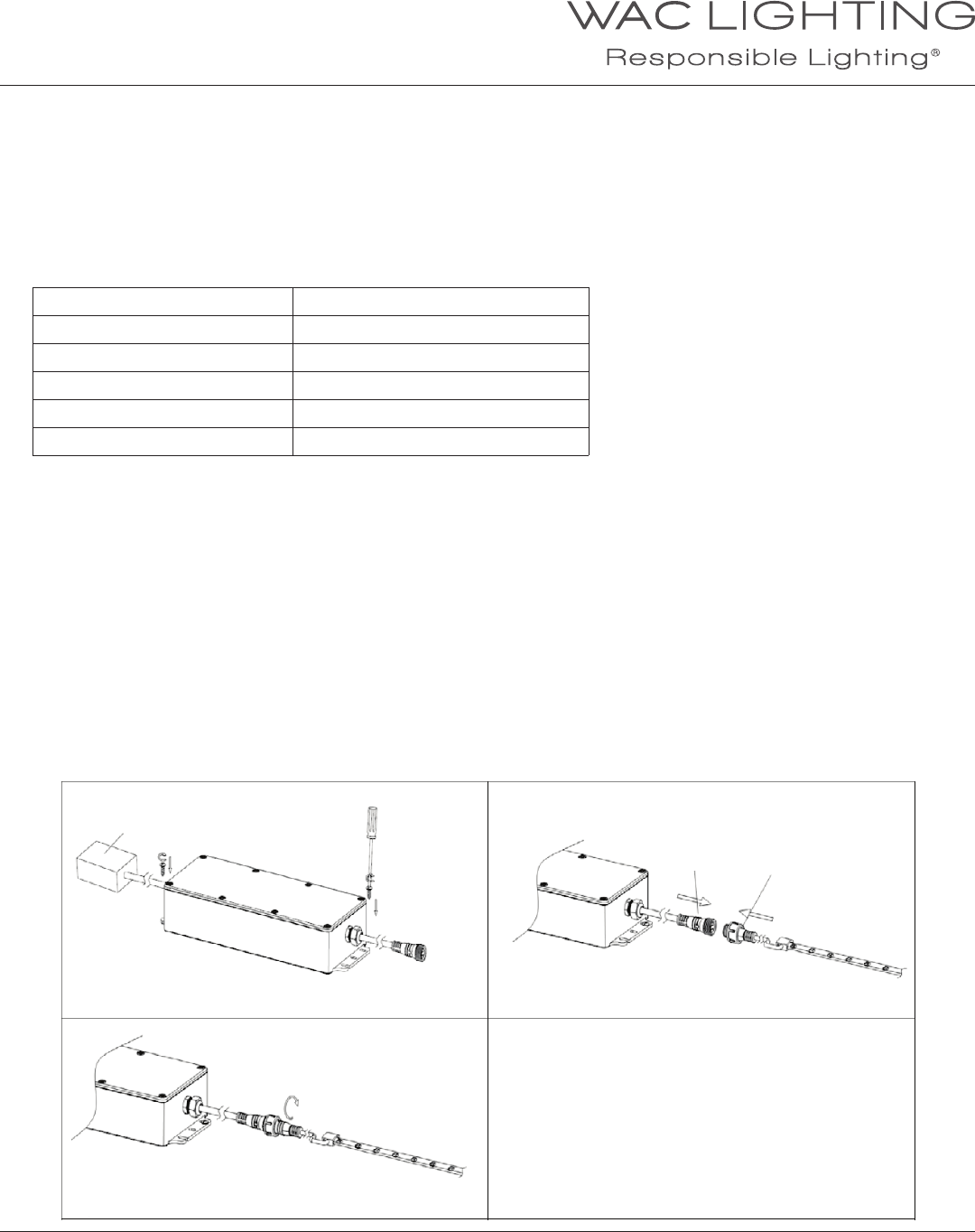

Outdoor Junction Box
Portable Power
Supply
Tape Section
1. 2.
3.
