Winlinx -V8 Thin Client Family Hardware User's Guide

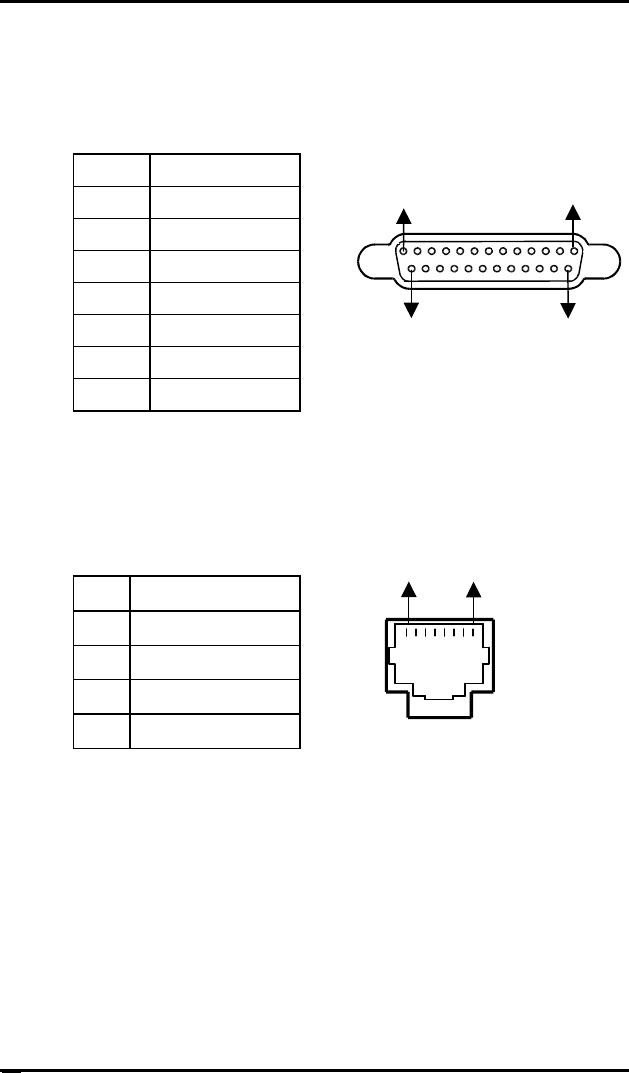

Printer Port (Parallel)
25 Pin D-type Female connector.
Pin Signal
1 STROBE
2 - 9 DATA 0 - 7
10 ACKNOWLEDGE
11 BUSY
12 PAPER END
15 ERROR
18 - 25 GROUND
10/100BASE-T LAN Interface
RJ-45 Modular 8 pin jack
Pin Signal
1 TXD+
2 TXD-
3 RXD+
6 RXD-
