Appendix-B
CONNECTORS & CABLING
INFORMATION
CONNECTORS
The following tables provide pin details for the Thin Client connectors.
Refer to the chapter INSTALLATION for the location of the connectors
on the back panel.

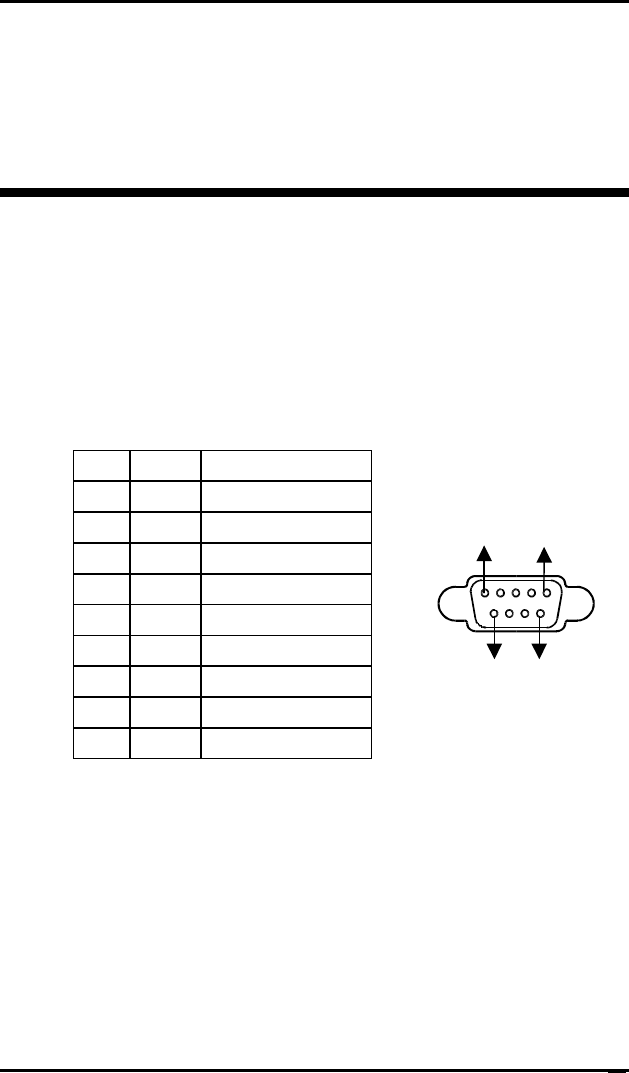

COM1 / COM2 Ports
9 Pin D-Type Male Connector
Pin Signal Description
1 DCD Data Carrier Detect
2 RXD Receive Data
3 TXD Transmit Data
4 DTR Data Terminal Ready
5 GND Signal Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 NC Not Connected
1 5
6 9
