Attach the Wall Plate to the Wall - Wood Stud Option
1 2
≤ 16 mm
(5/8 in.)
06
STEP 1
IMPORTANT: For stacking configurations, stack from the top down.

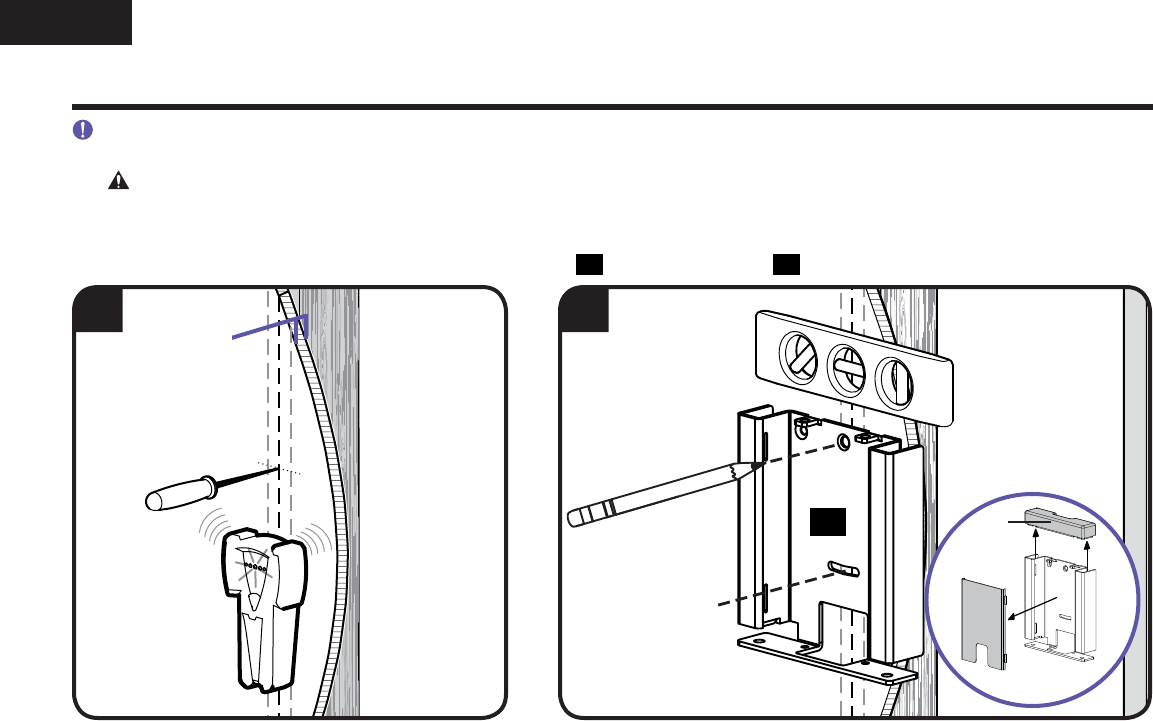

1. Locate your stud(s). Verify the center of the stud using an awl, a thin nail, or an edge to edge stud finder.
CAUTION: Avoid potential personal injuries and property damage!
● Drywall covering the wall must not exceed 16 mm (5/8 in.).
● Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1½ x 3½ in.).
2. Remove the front (F) and top (T) covers from the wall plate
06
. Level the wall plate
06
and mark the hole locations.
(F)
(T)
